AC170
Merk: Comec

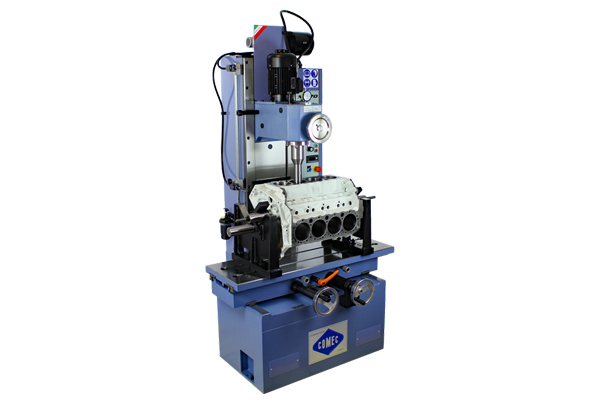

The AC170 boring machine has been manufactured to recondition cylinder blocks of motor cars and trucks with a diameter of 30÷170 mm. The excellent qualities of finishing and precision are ensured by the combination of a tested mechanic structure with new innovative technical solutions, which enhance the performance and versatility of the machine.
All machine parts supplied with the standard equipment, such as the fast cylinder centering device with scanning level on the boring bar and the centesimal dial indicator, the clear and straightforward control panel, as well as the depth of boring control dial gauge, can ease and speed up the work. Moreover, the adjustable boring bar’s rotation speed provide for the best finishing.
Characteristics
- Variable spindle speed with digital indicator
- Variable feed speed
- Tool setting dial indicator with magnetic base
- Boring depth device with dial indicator

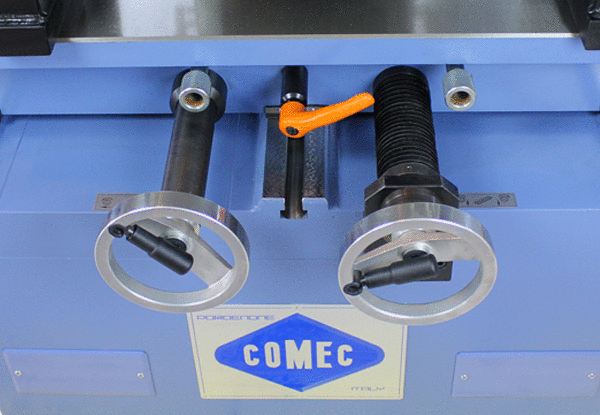

- Cross slide table for quick positioning and centering
- Precision centering device with dial gauge
- Adjustable stroke-end switches
- Wrench set
- pair of parallel supports h =120 mm
- Instruction manual
Machineparts
Specifications
- Boring range: 30÷170 mm
- Max Vertical travel of the Head: 670 mm
- Max distance from head to table: 940 mm
- Distance from spindle center to column: 290 mm
- Spindle rotation speed (adjustable): 75÷700 rpm
- Spindle feed: 0÷175 mm/min.
- Table surface: 1040x370 mm
- Max longitudinal table travel: 1000 mm
- Max transverse table travel: 200 mm
- Spindle motor power: 1.5 kW
- Rapid head feed motor power:: 0.37 kW
- Dimensions (LxWxH): 1030x1020x2000 mm
- Net weight: 1150 Kg
- Gross weight: 1330 Kg
