ACF200
Merk: Comec

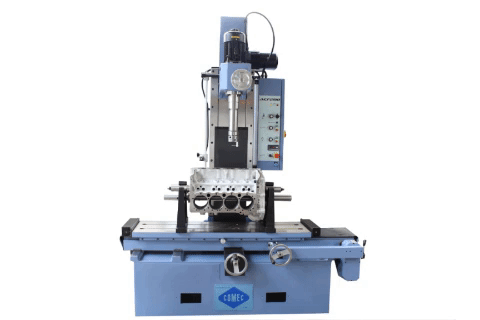

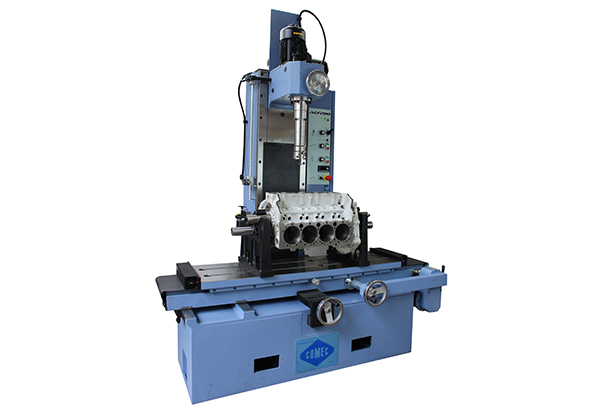

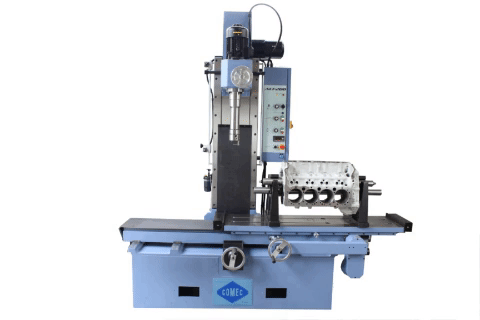

The cylinder boring/resurfacing machine ACF200 includes both main reconditioning operations of automotive and truck cylinder blocks – boring and resurfacing – in one single machine, with performances that are usually available only on higher level models. Despite its compact dimensions, the technical features of this machine ensure considerable work capacities, thanks to the wide longitudinal and transverse table feed and to the vertical feed of the head.
The excellent qualities of finishing and precision are obtained by combining a tested mechanical structure with innovative technical solutions, which improve the performance and versatility of the machine
Characteristics
- Variable spindle speed with digital indicator
- Variable feed speed
- Adjustable table feed
- Tool setting dial indicator with magnetic base
- Boring depth device with dial indicator
- Cross slide table for quick positioning and centering
- Precision centering device with dial gauge
- Adjustable stroke-end switches
- Wrench set
- pair of parallel supports h =120 mm
- Instruction manual
Machineparts
Specifications
- Boring range: 30÷170 mm
- Max head vertical travel: 670 mm
- Min-Max distance from head to table: 370÷1020 mm
- Distance between spindle C/L and column: 290 mm
- Table surface: 1340x370 mm
- Max table longitudinal travel: 1200 mm
- Max table transverse travel: 200 mm
- Adjustable spindle rotation speed: 75÷850 rpm
- Adjustable boring bar feed: 0÷175 mm/min.
- Adjustable table feed: 0÷460 mm/min.
- Spindle motor power: 1.5 kW
- Rapid feed motor power: 0.37 kW
- Table feed motor power: 0.55 kW
- Dimensions (LxWxH): 1860x1150x2170 mm
- Weight: 1380 Kg
