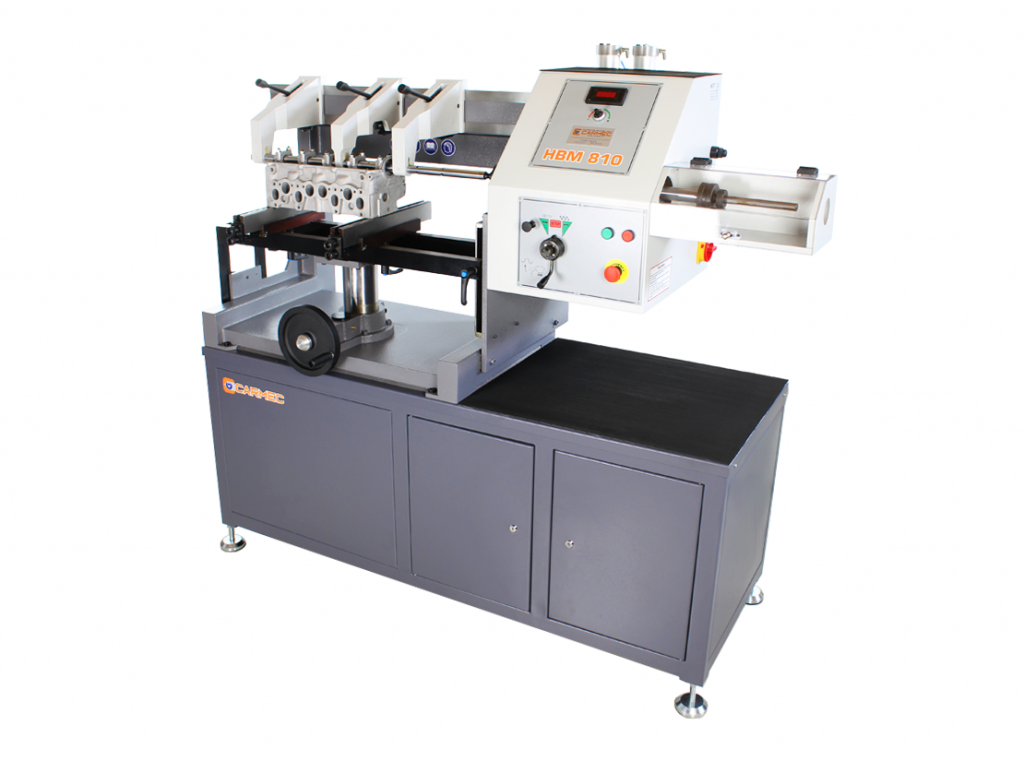

HBM 810
Merk: Carmec
Excellent machine for line boring blocks or heads.
The HBM 810 Horizontal Boring Machine is suitable for reconditioning camshaft housing holes on medium size blocks.
Very precise size control and surface finish eliminates line honing all together. The centering of boring holes is achieved on the boring rod by means of suitable center squares and by a tool holder slide adjustable in height. The rod is held by 3 supports and it is operated by a head equipped with D.C. engine, which permits to adjust, with a continuous revolutions variation, the rotation and feed speed of the rod. Fast and accurate are hall marks of this great line boring machine.
Characteristics
- Continuous variable spindle rotation speed
- Basement with drawers
- 3 Boring bar supporting arms
- 2 Parallel support assy., with vertical and horizontal adjustment
- Dia. 24-85 mm Chromed boring bar Ø 23 mm, L = 800 mm, complete with tool fixing screws
- 5 Boring tools (brazed) • Dia. 50-85 mm Ring-type Toolholder for blocks
- Universal head clamping fixture • 2 Centering fixtures with dial gauge micrometer • 1 Tool setting fixture, less Dial gauge • 1 Dial gauge with micrometer • Set of spanners • Instruction Manual
Machineparts
- Boring capacity: 24÷85 mm
- Max spindle travel: 100 mm
- Min-Max distance height supports to bar C/L: 100÷376 mm
- Max cylinder head and block length: 810 mm
- Max cylinder head and block width: 300 mm
- Variable spindle rotation speeds: 250÷1000 rpm
- Spindle traverse rate: 0÷1000 mm/min
- Feed Motor power: 0.50 Hp
- Dimensions (LxWxH): 1910×1350×1750 mm
- Weight: 385 Kg
