PowerHone
Merk: Delapena
Precision honing of large and heavy components in small to medium batches.

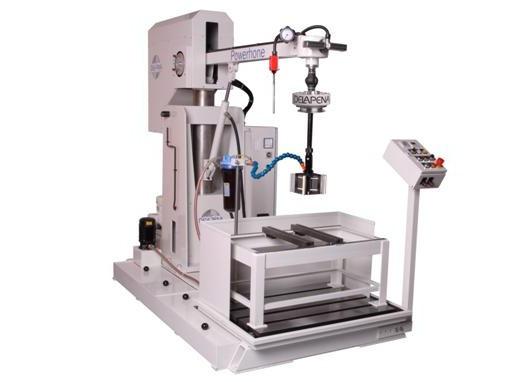

PowerHone is a vertical machine for honing large and heavy components in small to medium batches. It is also suitable for honing prototypes and offers both through and blind bore honing, with excellent stock removal rates. This machine has been designed for durability, efficiency and economical honing.
Aanvraag offerte Download PDFCharacteristics
Innovative in design, flexible and efficient in operation
- Bore diameter range of 25.4 to 900mm
- User-friendly control panel with digital cycle timer
- Maximum power via hydraulic stroking motor
- Accurate and repeatable stroking movement
- Fully adjustable spindle and stroking speeds
- Short stroke capacity
- Automatic feel system as standard
- Space-efficient footprint
Ideal for:
- Marine cylinder liners
- Pump bodies
- Hydraulic cylinders
- Large valve bodies
- Compressor bodies
Machineparts
Capacity and Stroke
- Maximum external diameter 740mm. Other diameters upon request
- Maximum stroke length 1000mm. Fully adjustable at the spindle
- Stroking motor speed Fully adjustable up to 20m/min
- Stroking motor power 1.5kW at 40 Bar
- Spindle speed Fully adjustable 0 - 250 RPM
- Spindle motor power 4 kW
- Standard Delapena automatic friction feed system
- Option Delapena manually operated friction feed system
- Conformity CE approved. Conforms to BS EN 60204.1:2006 AI:2009
- Motor protection category IP54
- Standard electrical supply 380 – 420V,3 Phase, 50Hz or 220 – 240V 50, 1 Phase, 50Hz
- Control voltage 24VDC
- Net 1100kg
- Gross 1300kg approx
- Dimensions 1701mm (W) x 2721.21mm (D) x 2010.24mm (H)
- Dimensions 1920mm (W) x 3000mm (D) x 2200mm (H)
