RP 1400CNC
Merk: Comec

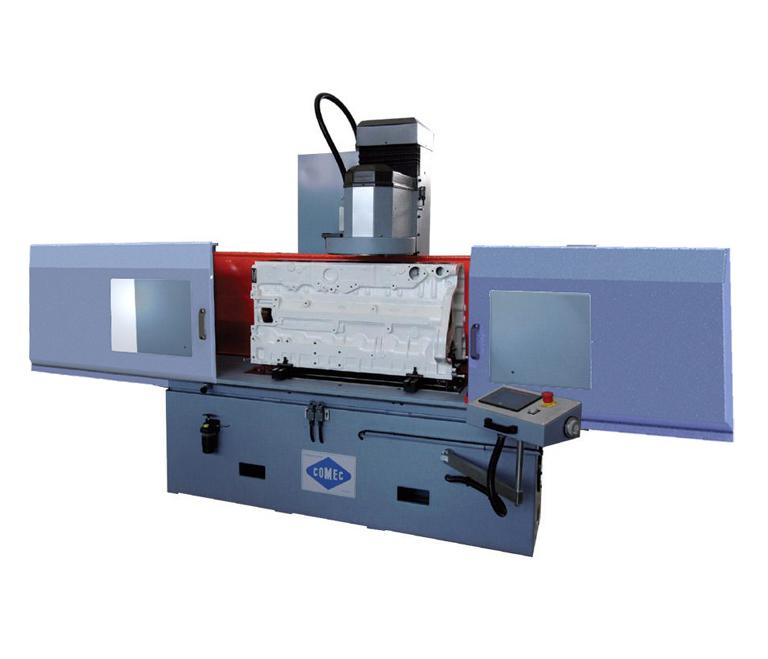

The RP1400 CNC is a resurfacing machine for cylinder heads and engine blocks of cars and trucks, as well as for all flat surfaces requiring maximum accuracy of the contact surfaces. The construction technology combines highly innovative solutions, such as the brushless motor for the automatic and precise positioning of the milling cutter plate – that is controlled by the CNC – with tested technologies, like the linear guides and recirculating-ball feed screws. The axes and the rotation speed of the milling cutter are controlled by an inverter. It is possible to monitor the feed speed. The control panel is an industrial touch screen, equipped with a simple and intuitive programme. The RP1400 CNC can be supplied with a milling cutter plate with tool-holder of CBN-PCD with a diameter of 405mm to resurface cast iron or aluminum surfaces. For heads with pre-chambers, you can use a special tool to ensure a perfect finishing.
Aanvraag offerte Download PDFCharacteristics
- Table and head feed with recirculating-ball screw
- Ø 405 mm milling plate with CBN insert

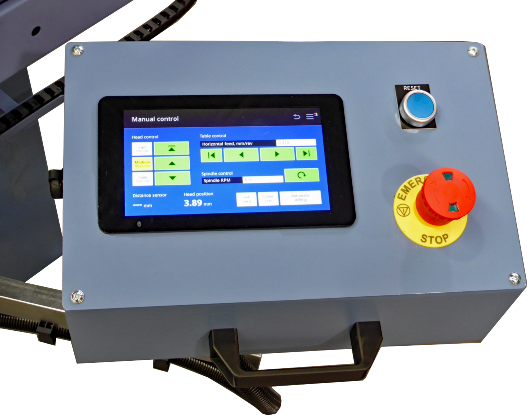

- Touch screen CNC control panel
- Laser sensor for scanning workpiece
- Surface profile graph
- Fully automatic cycle
- Database with preloaded working cycles and possibility to customise them
- Estimated cycle time
- Safety guard with sliding doors
- PV0160 Pair of parallel supports
- PV0021 Large clamps (2 pcs.)
- PV0022 Small clamps (4 pcs.)
- Lubricant for slides
- Wrench set
- Instruction manual
Machineparts
- Table travel: 1400 mm
- Max working length: 1195 mm
- Max working width: 405 mm
- Min - Max working height: 190÷710 mm
- Useful table surface: 1100x335 mm
- Milling cutter diameter: 405 mm (16”)
- Spindle rotation speed: 300÷1200 RPM
- Variable table feed speed: 0÷1500 mm/min
- Spindle motor: 2,2kW
- Table motor: 0.75 kW
- Feed torque motor: 1.27 Nm
- Dimensions (LxWxH): 2500x1000x1900 mm
- Weight: 1410 kg
