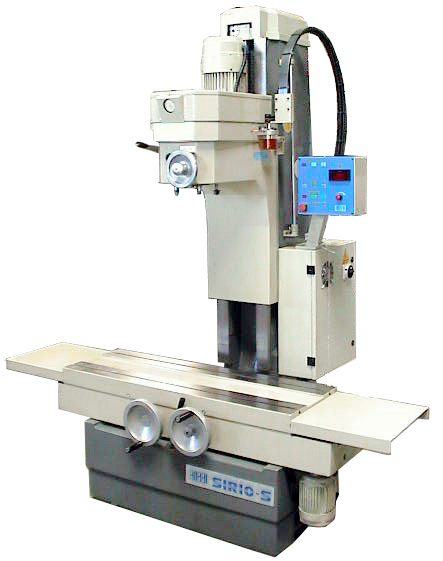

Suitable for engine blocks of cars and trucks medium. Equipped with variable speed range of spindle rotation
Characteristics
Standard Equipment
- Complete electric equipment with control at low tension.
- Spindle motor speed variable control
- 2 setting up supports 100 mm high with bolts
- 2 setting up supports 200 mm high with bolts
- 4 locking clamps with bolts
- Boring infeed control system
- Centering system
- Set of spanners
- Operating manual
Extra Equipment
Tool grinding device (electric motor included), abrasive wheel, diamond wheel, grinding jig
Boring spindle for ø 31 ÷ 160 mm, complete with tool setting micrometer, cutting tools with holders, centering device
Fixture for fat cylinder clamping
Universal fixture for V engine clamping
Universal fixture for cylinder liner clamping
Fixture for motorcycle cylinder clamping
Special milling and drilling spindle Morse taper N3
Micrometric devices for measuring cylinder bores – range 30÷200 mm
Machineparts
Technical Specification
- Boring diameters with standard spindles Min: 31 mm
- Max: 180 mm
- Boring depth Max: 460 mm
- Distance table to head Max: 1260 mm
- Min: 430 mm
- Distance spindle centre to column guides: 340 mm
- Vertical head stroke Max: 830 mm
- Spindle rotation speed: 0 ÷ 500 r.p.m.
- Automatic head feeds (variable): 0,09 – 0,18 mm/rev.
- Useful dimensions – Lenght: 1200 mm
- Useful dimensions – Width: 400 mm
- Longitudinal table stroke: 980 mm
- Traverse table stroke :80 mm
- Automatic longitudinal table feed variable: 0 ÷ 150 mm/min
- Spindle rotation: 2 kW
- Fast head feed: 0,75 kW
- Automatic longitudinal table feed variable: 0,75 kW
- Tool grinder: 0,5 kW
- Lenght: 1800 mm
- Width: 1200 mm
- Height: 2170 mm
- Lenght: 2780 mm
- Width: 1250 mm
- Height: 2570 mm
- Net weight: 1600 kg
