VGP 1200
Merk: Carmec

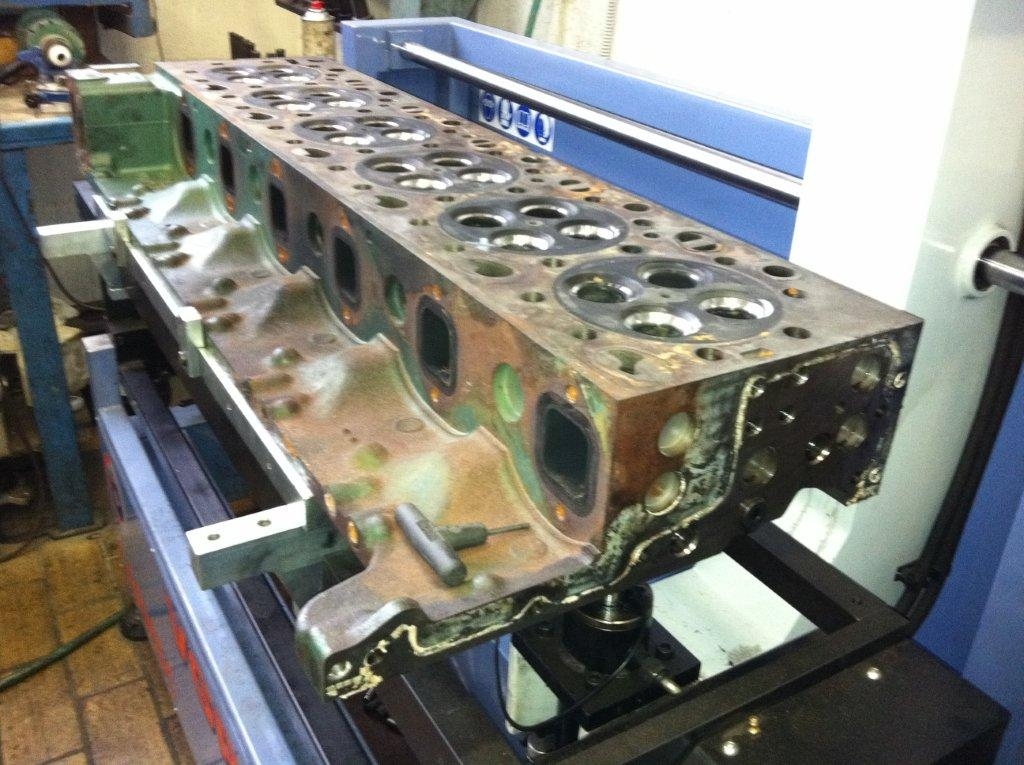

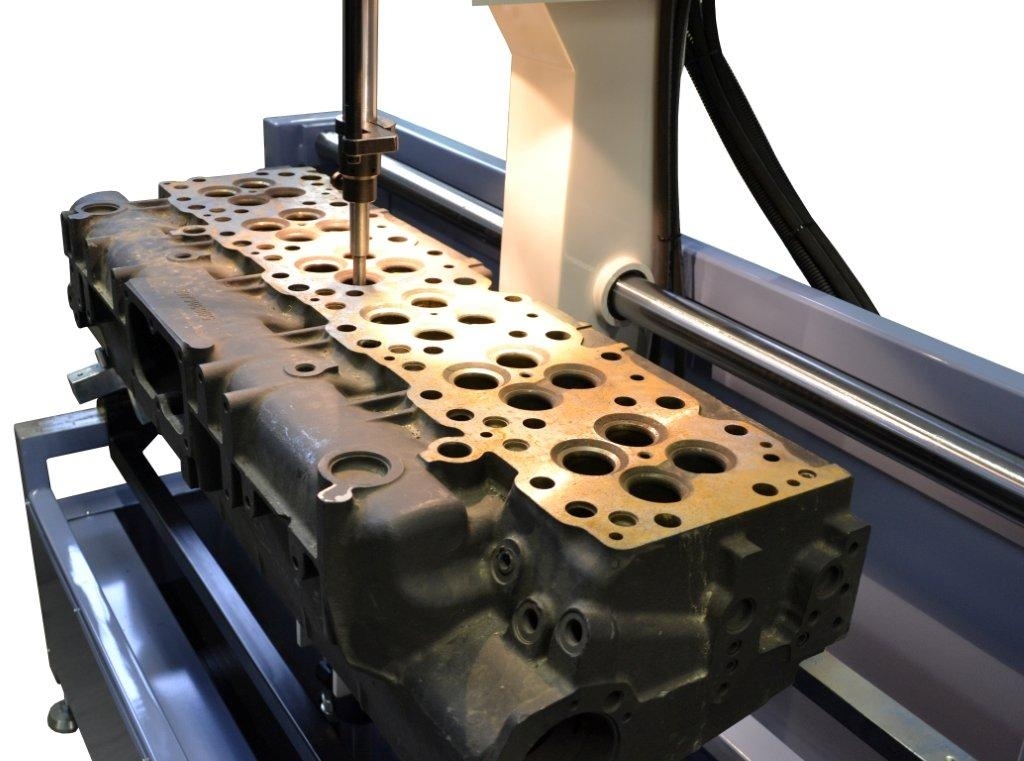

For easy, safe and fast valve guide replacement. Reduce operator fatigue and costly operator error. The bench is provided with a hydraulic cylinder for operating also on engine valves assembling and disassembling. Standard equipment includes tools for valve guide replacement (dismounting pilots) with standard set of instalation tools and set of different size of compressing foot for any application.
Aanvraag offerte Download PDF Product filmVGP 1200 has 3 operations:
- Inserting / dismounting valve guides - VIDEO
- Assembling / disassembling valve springs - VIDEO
- Inserting new valve seats - VIDEO
Characteristics
- Horizontal movement 1100 mm
- Vertical movement 150 mm
- Upper piston movement 150 mm
- Lower piston movement 120 mm
- Table rotation 50°
- Working pressure 200 bar
- Adjustable pressure 0÷250 bar
- Pressforce 0÷16 Ton Motor power
Machineparts
- Rod speed 28 mm/min
- Tank capacity 7 L
- Electrics voltage 400 V - 3 Ph - 50 Hz
- Control voltage 24 V
- Length 1550 mm
- Width 900 mm
- Height 1980 mm
