F10X
Brand: Rottler

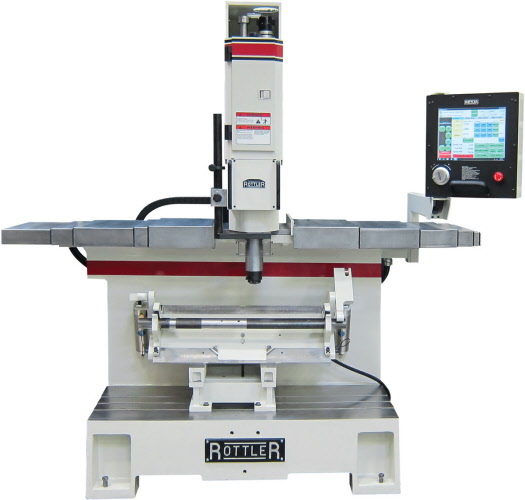

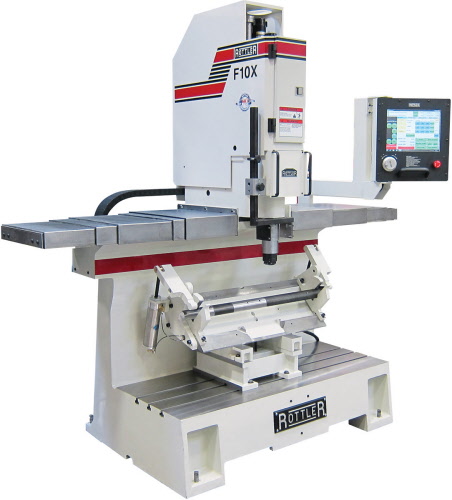

Having the same feed and capacity of its brother, the F10A, the F10X uses Rottler’s exclusive Xcelerate technology to make operation faster, easier and more precise. This special version CNC machine offers automatic hole-to-hole unattended boring.
The F10 Boring Bar has been designed for standard and large capacity machine work. Large sleeve cuts can be taken at high spindle rpm’s, and in many blocks, one pass sleeve cuts are possible, which increases productivity.
The massive one piece meehanite, stress relieved, precision machined base of the F10 model allows the fixturing of large diesel blocks such as Cummins 855, Detroit 12V71, Mercedes 44V12 and odd jobs such as gear cases and connecting rods.
The F10 machine can also handle small jobs down to 1.5″ (38mm) bore diameter with optional cutterheads.
Floor-to-floor bore a V8 block in 15 minutes. Bore through a 6″ (152.4mm) bore 4″ (101.6mm) in diameter in 35 seconds, .250 sleeve cuts are not a problem. Tooling is available from 1.500 to 9 inches in diameter. Straight through and blind hole boring tools are available. Precision ball screws on the feed give the ultimate feed control.
Request quote Download PDF Product movieCharacteristics
- Special Version Machine for Automatic Hole-to-Hole Unattended Boring System
- CNC (Computer Numerical Control) Machine using Windows Operating System and Industrial PC with Intel Processor.
- Precision Programming and Control thru a 15" (367mm) Computerized Touch Screen.
- Software for Programmable & Automated Cycles such as Boring, Sleeving, Counterboring and Blind Hole Machining
- Chip shield & Dust Collector (504-35-11E)
- USB flash drive for file transfer to and from computer
- Internet connection to the machine computer must be provided for training support and service.
- Machine/Computer can operate in either inch or metric system
- Machine Work Head Floats on Air Cushion for Precision Centering - Total Travel - Left/Right Direction 44" 1117mm
- All motors - AC Servo Motors with BISS Encoders - Infinitely Variable
- Horizontal Movement (X Axis) - Left/Right - 44" (1117mm)
- Vertical Movement (Z Axis) - Up and Down – 15” (380mm)
- Vertical and Spindle Load Monitoring for Fast Overload Shut Down
- Precision Position Display in .0001" (.002mm) Resolution.
- Electronic Hand Wheel for manual movement - per click: Coarse Mode .01" (.25mm) Medium Mode .001" (.01mm) Fine Mode .0001" (.002mm)
- Infinitely Variable Feedrates adjustable by hand wheel during automatic cycles
- High Performance Spindle Rotation AC Brushless Servo Motor - infinitely variable to 1200RPM
- Heavy Duty Hard Chromed Precision Spindle 3.25" (82.5mm) Diameter with High Speed Angular Contact Bearings supported with Adjustable Conical Outer Bearings
- Spindle with Quick Change Cutterhead System
- Fast Rapid and Jog Speeds for Reduced Cycle Time
- Automatic Work Head Tilt System for Back Clearance during Spindle Retract
- One Piece Heat Treated Mehanite Cast Iron Machine Castings
- Turcite Coated Slideways for Low Friction and Extended Life
- Automatic Central Lubrication System monitored by computer
Machineparts
- Control: Automatic CNC
- Touch Screen: 114mm
- Machine Height :2032mm
- Table - Size: 1370 x 530mm
- Travel - Spindle Nose to Table: 670mm
- Travel - Spindle Center to Column: 530mm
- Spindle - Rotation Speed: 100 to 1200 RPM
- Spindle - Motor: 3.3 HP 2.5 Kw HP
- Bore Capacity (with Optional Cutterhead) 38 - 228mm
- Feed per Revolution: Programmable Feed Rates .025 - .300mm
- Spindle Travel (Vertical): 381mm
- Workhead Travel (Horizontal): 1270mm
- Dimensions - Machine: 1143D x 1549W x 2032mm H
- Dimensions - Floor Space Requirements: 1170D x 1625Wmm
- Dimensions - Shipping: 1702D x 1956W x 2311mm H
- Machine Weight: 1682 kg
- Electrical Requirement: 208-240V, 30A, 50/60Hz, 1Ph
- Air Requirements: 28 l/min @ 6 bar
- Paint Color Code: RAL9002 (Grey White)
