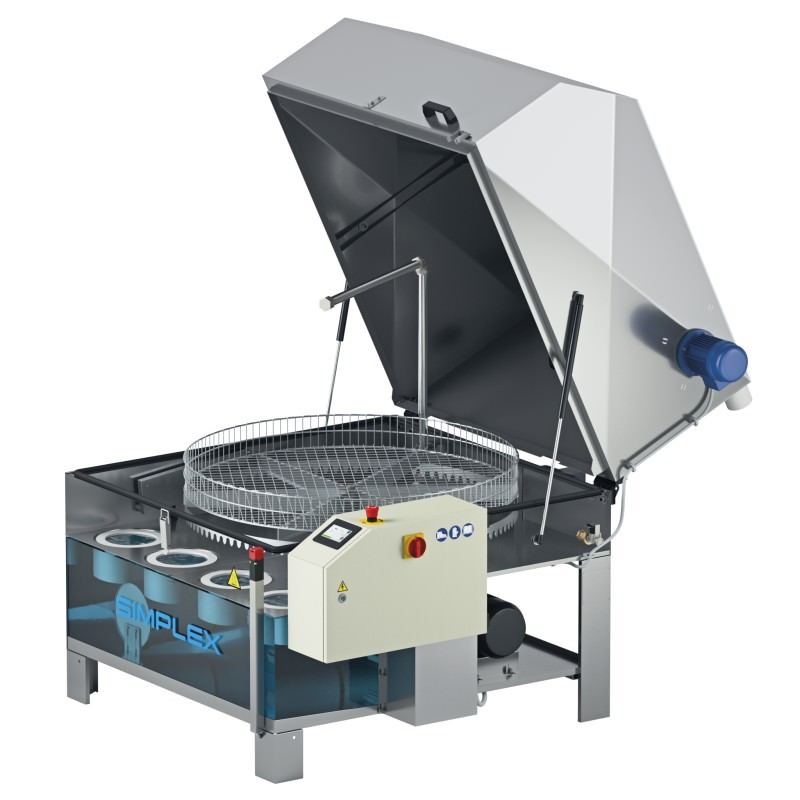

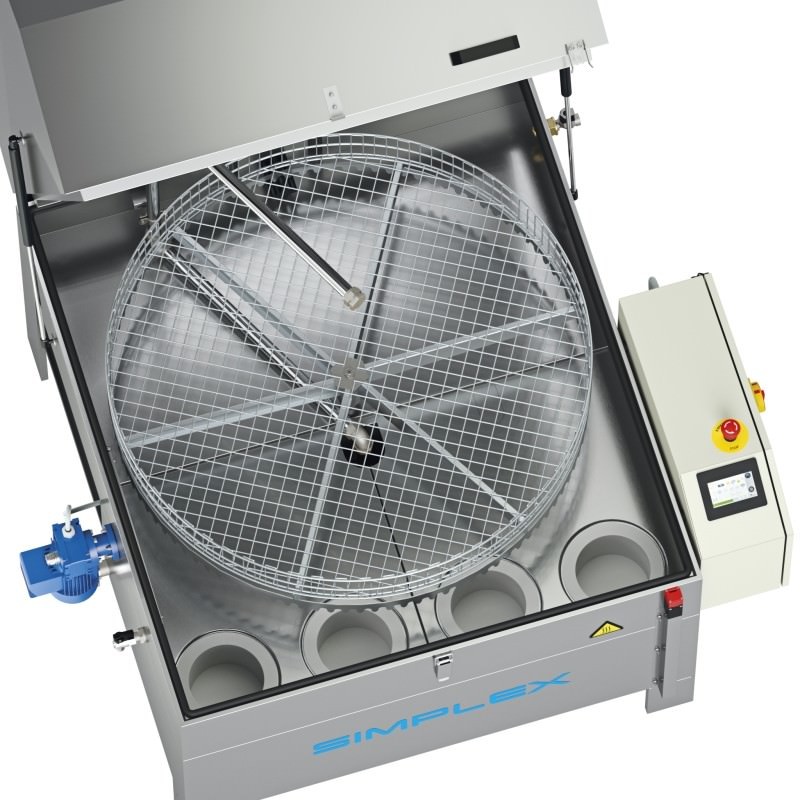

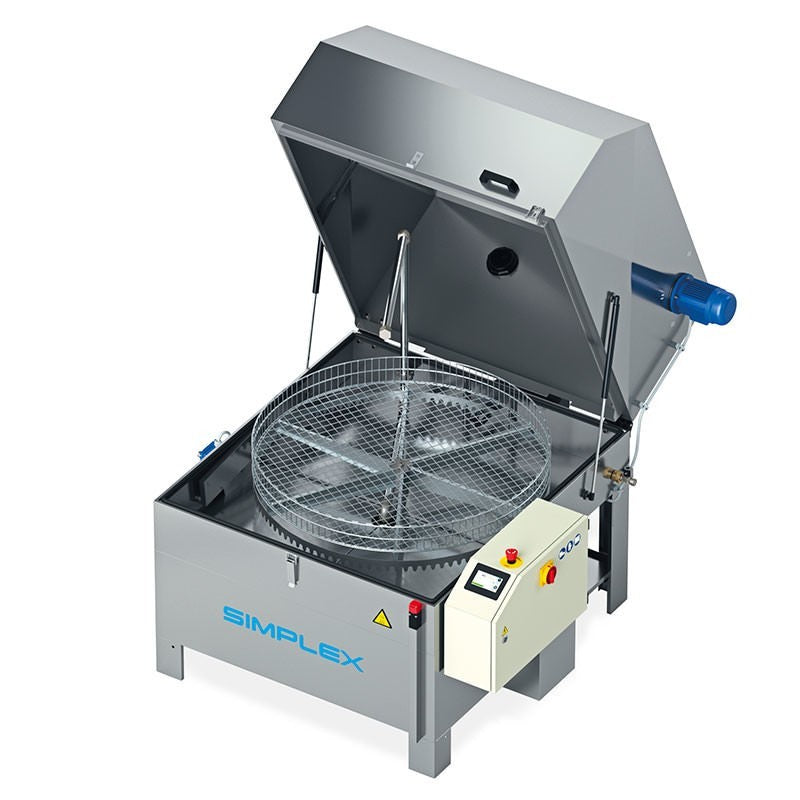

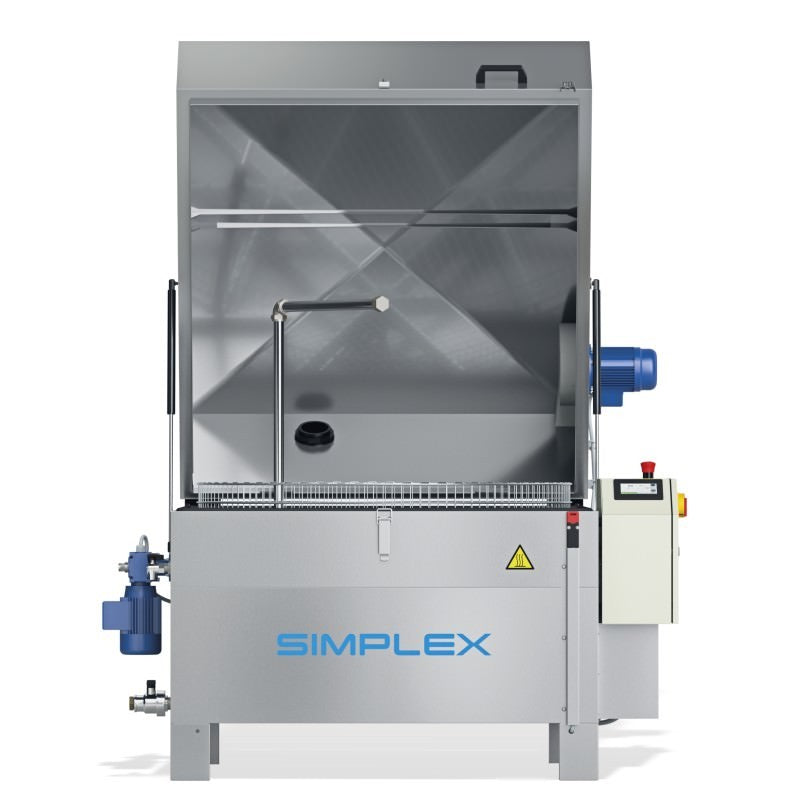

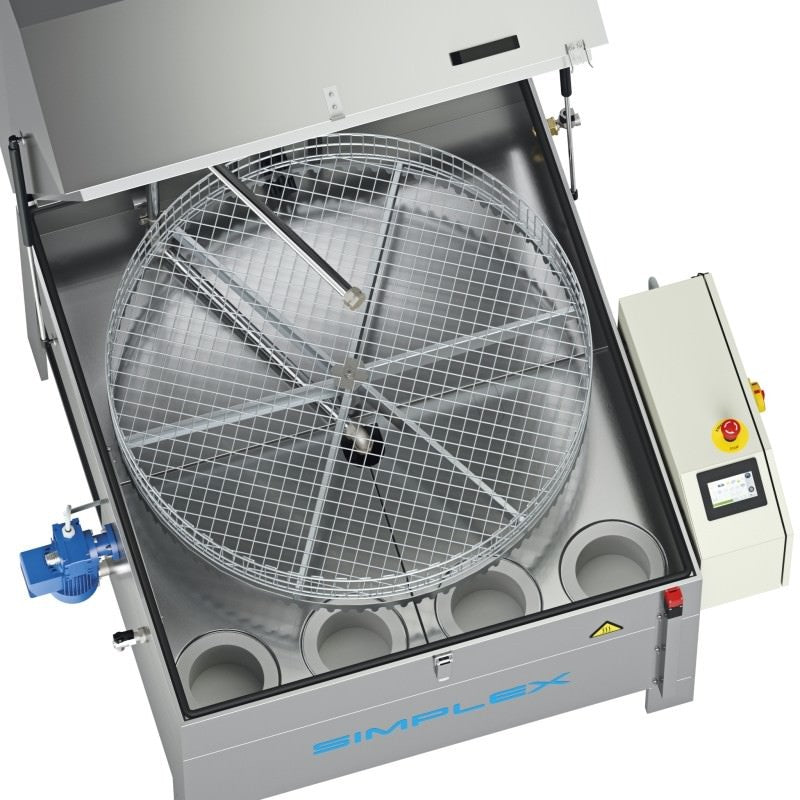

Simplex 100

Brand: Teknox

PARTS WASHERS WITH ROTARY BASKET, PLC AND TOUCHSCREEN

Simplex is a system ideal for the automatic washing of small and medium size mechanical parts.
The washing is carried out by the action of upper, lower and side jets.
The slow rotation of the basket is ensured by a gear motor.
A PLC and touchscreen display management enables numberless customizations thanks to a wide range of accessories.

Request quote Download PDF

Characteristics

What is included in each SIMPLEX 100/120
  • Electric timed steam extraction
  • Reinforced basket in electrowelded net with external edge of galvanized steel
  • Tank liquid maximum level control and solenoid valve for automatic water intake
  • Minimum level control
  • Colour 4'' touchscreen display for settings and programs.
  • Electric pump in stainless steel with special gaskets
  • Filter in stainless steel AISI 304 on the pump suction
  • Safety limit switch on the cover opening
  • Tank edge gasket
  • IP 65 electric system with PLC touchscreen (DGT V4)
  • Weekly programming for the activation of heating and oil separator (if installed)
  • Mechanical rotation of the basket by a gear motor
  • Structure and plates in STAINLESS steel AISI 304
  • Flexible suction and pump delivery pipes (easy maintenance)
  • Stainless steel AISI 304 washing pipes with laser perforated nozzles
What is included in HT version
  • Electric timed steam extraction
  • Tank thermal insulation with panels in Stainless steel AISI 430
  • Safety limit switch with cover opening lock during the cycle
  • Panels under the basket with trap filter for grease and chip collection

Machineparts

SIMPLEX 100

  • Washing capacity ( Ø x H ): Ø 97x H 54 cm
  • Basket load capacity: 200 kg
  • Tank: 210 lt
SIMPLEX 120
  • Washing capacity ( Ø x H ): Ø 117 x H 70 cm
  • Basket load capacity: 300 Kg
  • Tank: 270 lt
VERSION
  • Maximum temperature setting 60°C
  • Maximum temperature setting 80°C
SUPPLY VOLTAGE: 400V 3PH+N+T 50 HZ (and more on demand)
