COMEC ACF200 Cylinder Boring- and Surfacing Machine
Tax excluded. Shipping calculated at checkout

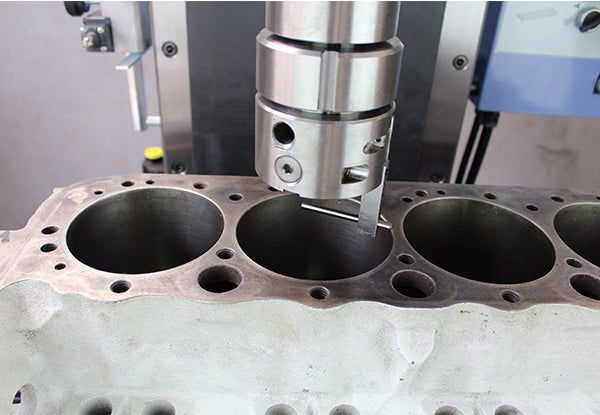

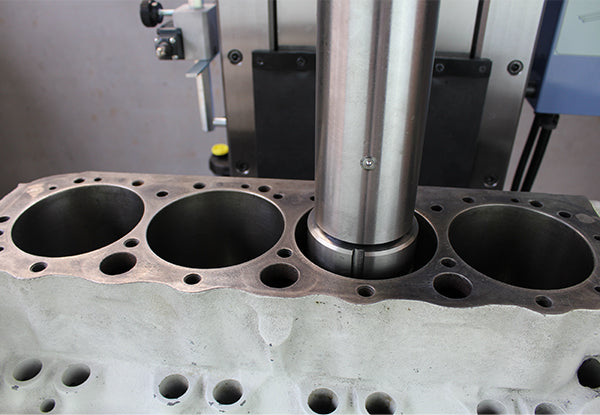

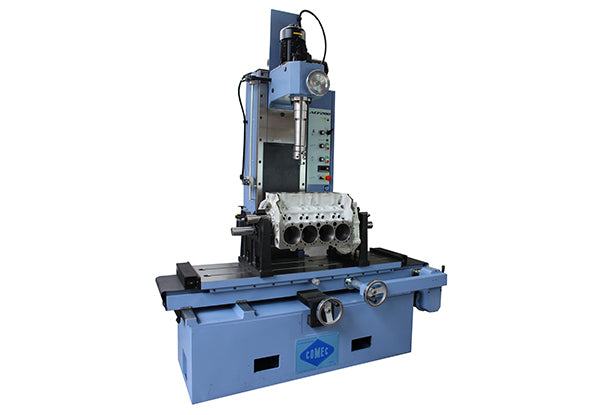

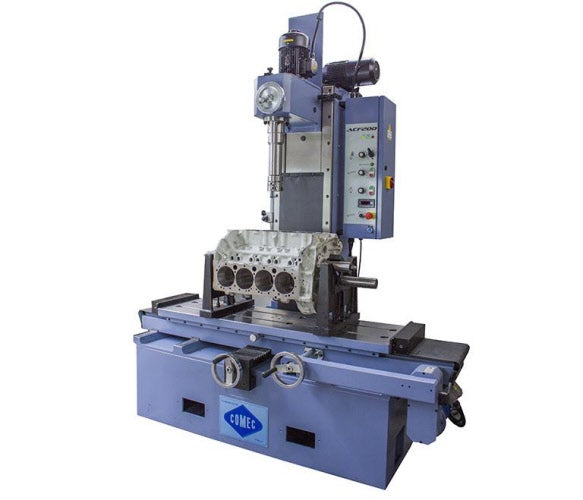

The cylinder boring/resurfacing machine ACF200 includes both main reconditioning operations of automotive and truck cylinder blocks - boring and resurfacing - in one single machine, with performances that are usually available only on higher level models. Despite its compact dimensions, the technical features of this machine ensure considerable work capacities, thanks to the wide longitudinal and transverse table feed and to the vertical feed of the head.
The excellent qualities of finishing and precision are obtained by combining a tested mechanical structure with innovative technical solutions, which improve the performance and versatility of the machine
DIFFERENCES BETWEEN SPINDLES KIND B AND C
Images may show the product equipped with optional accessories
|
Boring range |
30÷170 mm |
|
Max head vertical travel |
670 mm |
|
Min-Max distance from head to table |
370÷1020 mm |
|
Distance between spindle C/L and column |
290 mm |
|
Table surface |
1340x370 mm |
|
Max table longitudinal travel |
1200 mm |
|
Max table transverse travel |
200 mm |
|
Adjustable spindle rotation speed |
50÷700 rpm |
|
Adjustable boring bar feed |
0÷175 mm/min. |
|
Adjustable table feed |
0÷460 mm/min. |
|
Spindle motor power |
1.5 kW |
|
Rapid feed motor power |
0.37 kW |
|
Table feed motor power |
0.55 kW |
|
Dimensions (LxWxH) |
1860x1150x2170 mm |
|
Weight |
1380 Kg |
Standard equipment
Adjustable spindle speed with digital indicator
Adjustable boring bar feed
Adjustable table feed (only model ACF)
Depth of boring device with dial indicator
Precision centering device with dial gauge
Adjustable control stop

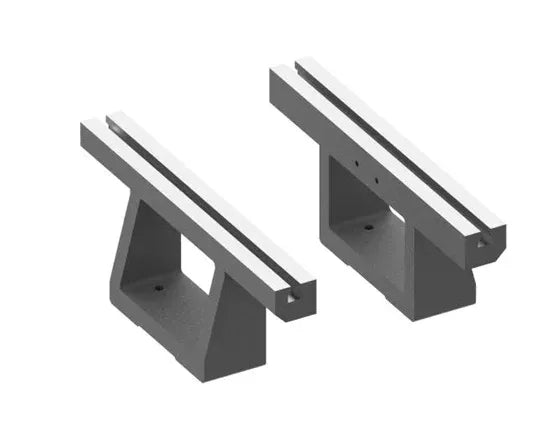

PV0160 Pair of parallel supports
Wrench set
Instruction manual
