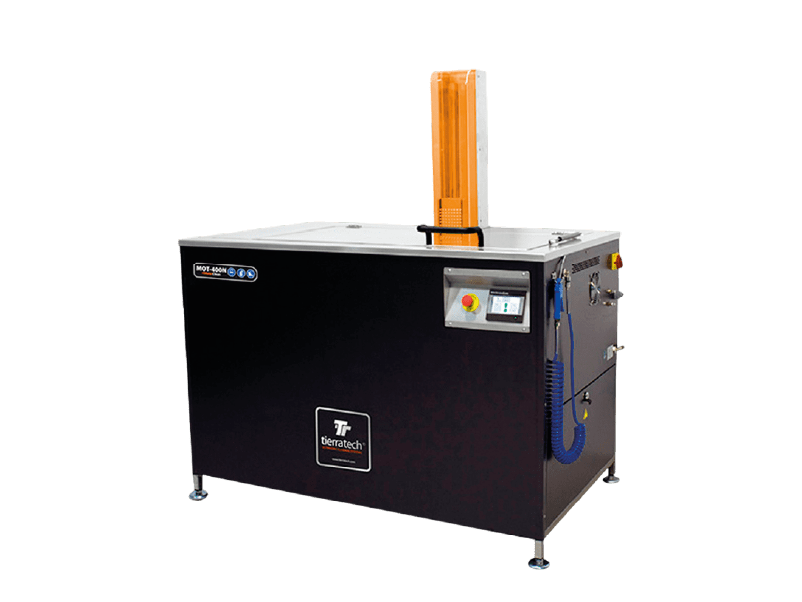

Tierra Tech MOT-400N Ultrasonic Cleaning Equipment 400 Liter

The ultrasonic cleaning equipment MOT-400N is a high-performance system designed for industrial applications, operating with a 400V power supply and equipped with a 7000W heating element.

It delivers 4000W of ultrasonic power (8000W peak-to-peak) through one high-efficiency ultrasonic generator. The system includes two submersible emitters, each with a power output of 2000Wp (4000W p-p), constructed from durable 2.5 mm thick AISI 316L stainless steel.

The MOT-400N features an integrated 7” TFT touchscreen control panel, offering easy and intuitive access to all operational parameters, including ultrasonic timing, temperature control, and system functions.

This advanced ultrasonic cleaning equipment is designed for reliability, precision, and deep cleaning performance, making it an excellent choice for demanding automotion cleaning tasks.

Ultrasonic Characteristics

• Ultrasound generator with an output power of 3400Wp (6800Wp-p)
• Ultrasonic power: 3400Wp (6800Wp-p)
• Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
• 2 submersibles emitters with a power of 3400Wp (6800W p-p) made of 2.5 mm thick stainless steel AISI 316L steel. The emitter contains
  34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body

Control Panel

• 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
• Programmable weekly calendar
• 6 outputs and 8 inputs temperature module PLC

Finishes and Accessories

• Tank made of 2 mm thick stainless steel AISI 304L
• External panel in 1 mm thick fingerprint resistant steel
• 20 mm thick thermo-acoustic insulation
• 1½” drain ball valve
• Height-adjustable silentblock legs
• Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
• Air blow gun for drying the parts
• Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
• (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud.
