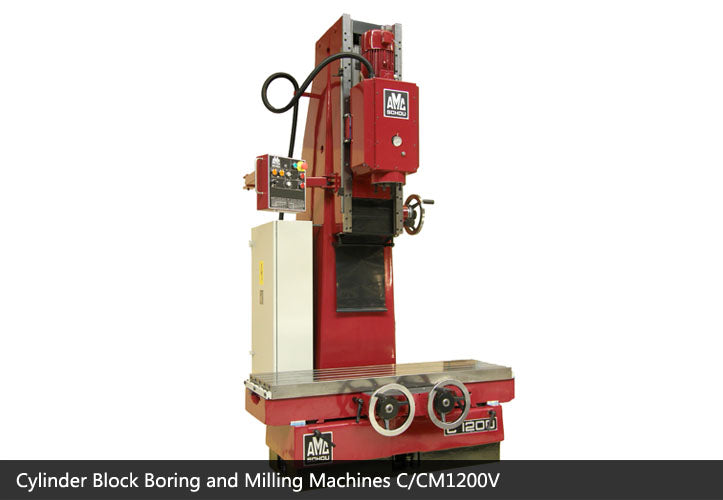

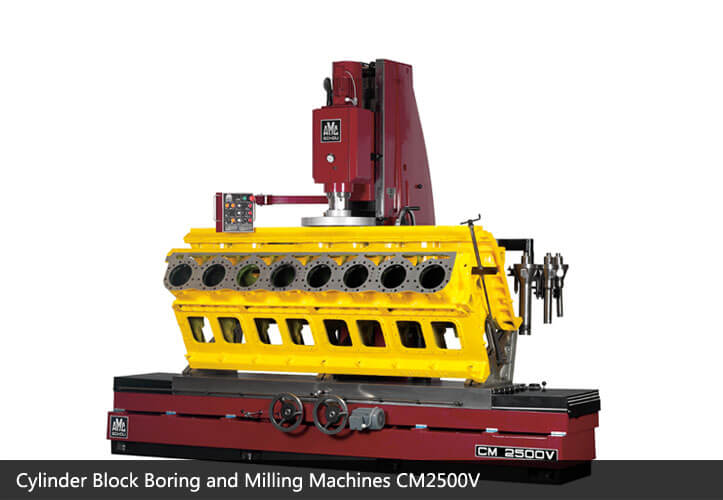

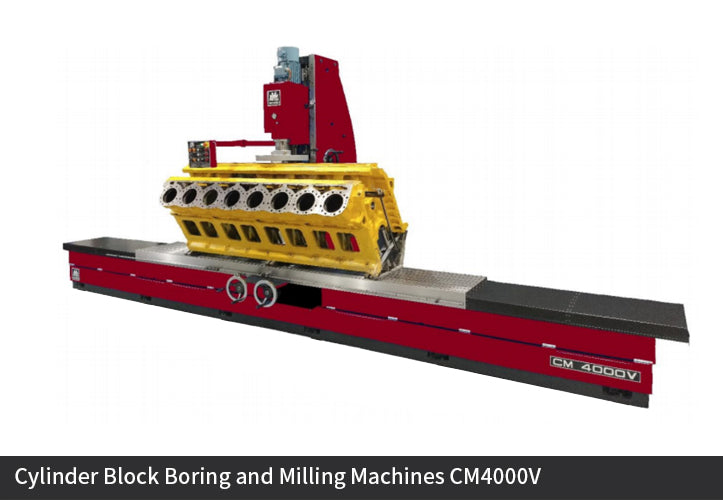

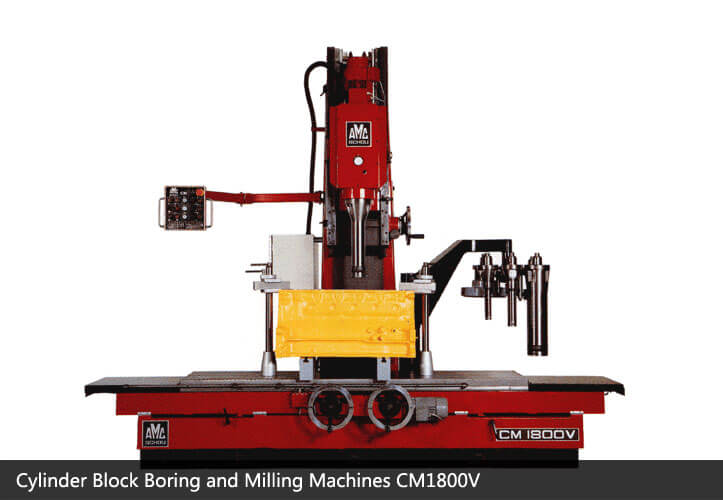

CYLINDER BLOCK BORING AND MILLING MACHINES

Boring Spindles

A complete range of spindles allows boring from 32-350 mm (1.25"-13.75"). All spindles feature constant pre-loaded bearings and are sealed and greased for life.

Angle Head

Extra Equipment for Engine Rebuilding Machines

AMC-SCHOU delivers a wide selection of extra equipment for the C/CM-Machines.These expansions make the everyday use of the machine faster and thereby more profitable.

•



  Boring Spindle 1-4
  AMC-SCHOU supplies a full range of spindles. Above are spindles covering the range from 48-260 mm (1.89"-10.24")
  No. 1: 48-72 mm (1.89"-2.83")
  No. 2: 62-100 mm (2.44"-3.94")
  No. 3: 92-200 mm (3.62"-7.87")
  No. 4: 145-260 mm (5.71"-10.24")

•

  Boring Heads
  Extra boring heads are supplied with some spindles. The 140 mm. boring head is standard with the spindle No.3. The larger 190 mm. boring head comes with spindle No.4 and No.7 as standard equipment. Furthermore are boring heads size 260 mm. and 300 mm. available for spindel No.4 and No.7.

•

  Boring Spindle No. 5
  The smallest spindle from AMC-SCHOU with a range from 32-50 mm (1.26"-1.97")

•

  Morse Taper
  The morse taper No. 3 can be used for drilling operations as shown here.

•

  Insert Boring Tools
  AMC-SCHOU supplies hardened tool holders with high-speed inserts. Triangular inserts (3 cutting tips per insert) are standard. Special inserts are available from all the major insert suppliers; standard size inserts fit AMC-SCHOU tool holders.

•

  Storage and Loading Fixture for Spindles
  The AMC-SCHOU storage fixture doubles as a loading arm. When loading a heavy milling head, the spindle will be perpendicular to the mounting surface of the boring slide, allowing trouble free mounting always.

•

  Tool Grinder
  The TG-1 tool grinder with its 150 mm (5.91") grinding and diamond lapping wheels ensures that correct angles are ground on carbide tipped boring tools. Can also be used to grind boring tools for line boring machines as well as con-rod boring and grinding machines.

•

  Quick Acting Clamps
  These clamps are indispensable when reboring in-line blocks.

•

  Universal Boring Stand
  With V-blocks, 60° and 90° inclinations can be achieved with this stand.
  Can be used for reboring or milling operations.

•

  Adjustable Angle Fixture
  All angles between 60° and 90° can be achieved using the adjustable angle fixture.
  Can be used for reboring and milling operations.

•

  Adjustable Roll-Over Fixture
  Reboring and milling of small to medium size blocks using this equipment will reduce setting-up time and increase productivity
