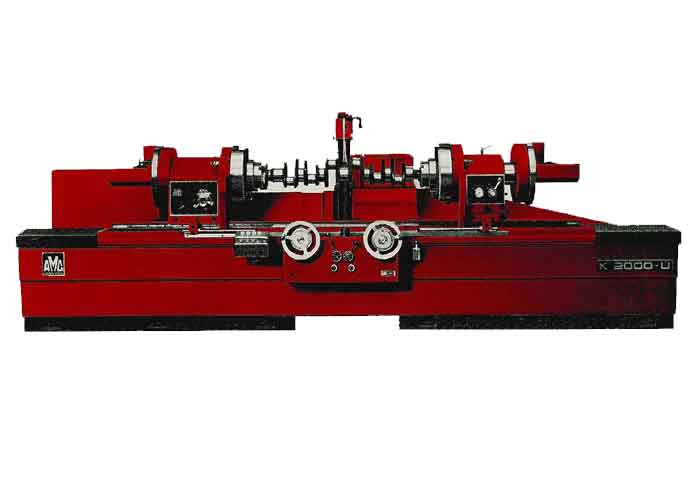

AMC K2000U Crankshaft Grinding Machine

TECHNICAL SPECIFICATIONS

K 1200M

K 1500U

K 2000U

K 2700U

K 3700U

Max. distance between chucks

mm
inch

1200
47.2

1625
64

2250
89

2750
108

4200
165.3

Max. distance between centres

mm
inch

1220
48

1600
63

2190
86

2750
108

4200
165.3

Swing over table

mm
inch

460
18

690/750
27/29.5

690/750
27/29.5

690/750
27/29.5

750
29.5

Max. stroke – twice off-set of centres

mm
inch

160
6.3

280
11

280
11

280
11

280
11

Steady rest, standard, min. capacity

mm
inch

20
0.8

25
1

25
1

25
1

25
1

Steady rest, standard, max. capacity

mm
inch

100
4

180
7

180
7

180
7

180
7

Max. workpiece diameter – new wheel

mm
inch

410
16

600
23.5

600
23.5

600
23.5

600
23.5

Max. workpiece diameter workhead-chuck

mm
inch

155
6

190
7.5

250
10

250
10

275
10.8

Max. workpiece diameter tailstock-chuck

mm
inch

155
6

190
7.5

250
10

250
10

275
10.8

Max. weight between chucks

Depending on crankshaft configuration

Workpiece spindle speeds stepless

rpm

20-100

15-90

15-90

15-90

15-90

Table speed manual

mm/rev
inch/rev

5
0.2

5
0.2

5
0.2

5
0.2

5
0.2

Table speed stepless

mm/min
inch/min

5-4000
0-158

5-4000
0-158

5-4000
0-158

5-4000
0-158

5-4000
0-158

Wheel slide rapid movement

mm/min
inch/min

3000
118

3000
118

3000
118

3000
118

3000
118

Motors

Grinding wheel motor

kW
hp

4.0
5.5

5.5
7.5

5.5
7.5

7.5
10

7.5
10

Workhead motor hydraulic

l/min
gal/min

25
5.5

25
5.5

25
5.5

25
5.5

25
5.5

Hydraulic power pump

kW
hp

2.2
3

2.2
3

2.2
3

2.2
3

2.2
3

Coolant pump

kW
hp

0.16
0.21

0.16
0.21

0.16
0.21

0.16
0.21

0.16
0.21

Dimensions

Grinding wheel diameter

mm
inch

660
26

813
32

813
32

813
32

813
32

Min. grinding wheel width

mm
inch

19
0.75

19
0.75

19
0.75

19
0.75

19
0.75

Max. grinding wheel width

mm
inch

50
2

50
2

50
2

63.5
2.5

63.5
2.5

Height floor to spindle centre

mm
inch

1120
44

1120
44

1120
44

1120
44

1180
46.5

Height of machine

mm
inch

1475
58

1550
61

1550
61

1550
61

1610
63.4

Total length of machine

mm
inch

2950
116.1

3700
145.6

4795
188.8

6000
237.2

9500
374

Total width of machine

mm
inch

1750
68.9

2030
80

2030
80

2030
80

2030
80

Working space required

mm
inch

4220x1700
166.1x66.9

5405x2030
212.8x80

7045x2030
277.4x80

8850x2030
348.4x80

12500x2100
492.1x82.7

Net. weight approx.

kg
lbs

3300
7260

4800
10560

5600
12320

6700
14740

7900
17380

Shipping weight approx. (wooden box)

kg
lbs

3850
8470

5560
12232

6600
14520

7800
17160

9200
20240

Shipping volume

m³
ft³

11.1
391.9

14.6
515.5

18.7
660.3

23.3
822.7

33,5
1182.9
