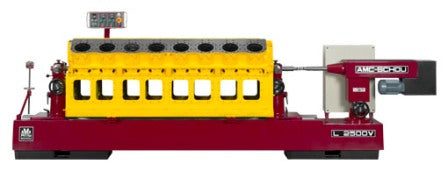

L2500V line boring machine
AMC-SCHOU
Capacity: 2540 mm length (100")
Boring range: 24-200 mm when supplied with all boring bars
Graduation: mm or inch. Colour: red.
1 electric installation for 400 volts, 3 phase AC, 50 cycles
1 variable drive gear box: r.p.m.: 50 - 750
feed: 6 - 100 mm/min
fast feed: 6 - 1000 mm/min
1 set of fixed parallels
2 sets setting-up blocks 130 mm (5.1") and 200 mm (7.8") high
1 boring bar support
1 boring bar supporting bracket (overhead steady rest)
1 tool setting micrometer with dial gauge, diam. Reading 0.01mm (0.001")
1 magnetic V-rest for tool setting micrometer
2 centering devices with dial indicators
1 set (20 pcs.) of boring, facing and chamfering tools
1 set of clamps, bolts and spanners
1 operating manual and spare parts catalogue
|
TECHNICAL SPECIFICATIONS |
L 2500 V |
|
|
Max. block length |
mm |
2540 |
|
Max. distance from built-in parallels to boring bar |
mm |
850 |
|
Spindle speeds |
rpm |
0-750 |
|
Fast feed |
mm/min |
6-1000 |
|
Feed jog adjustable |
mm/min |
6-1000 |
|
Feed jog high speed |
mm/min |
1000 |
|
Max. boring bar travel |
mm |
680 |
|
Motors |
||
|
Drive motor for spindle |
kW |
1.5 |
|
Drive motor feed |
kW |
0.37 |
|
Dimensions |
||
|
Height of machine |
mm |
2200 |
|
Total length of machine |
mm |
5100 |
|
Total width of machine |
mm |
800 |
|
Working space required |
mm |
7600 x 800 |
|
Net. weight approx. |
kg |
2700 |
|
Shipping weight approx. (wooden box) |
kg |
3140 |
|
Shipping volume |
m³ |
12.82 |
NOTE: To make the machine operational, at least one boring bar mst be added
