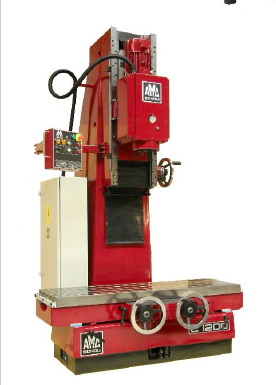

CM-1200V Cylinder Block Boring & Milling Machine
AMC-SCHOU
Capacity: Boring 32 - 350 mm (1,25" - 13,75") when equipped with all optional spindles
Table traverse 1350 mm (53,1")
Table surface 1525 x 450 mm (60" x 17,7")
Graduation: mm or inch. Colour: red.
1 electric installation for 400 volts, 3 phase AC, 50 cycles
1 boring slide with following functions:
Spindle motor, 4.0 kW, stepless, 50-1200 r.p.m.
Boring feed, stepless, 20-1500 mm/min (0,8" - 59"/min.)
Rapid return of boring slide, 1500 mm/min (59"/min.)
1 automatic central lubrication system
1 dial indicator for depth control
1 tool setting micrometer with dial gauge
3 holders for above
2 setting -up blocks, 160 mm (6,3") high
2 setting -up blocks, 200 mm (8") high
1 set of bolts and spanners
1 set of telescopic table guards for table guideways
1 milling head, 300 mm (11.8") incl. 2 cutters and guard
1 box of 10 inserts for boring tool holders
1 motor for automatic table traverse, 0.55 kW, stepless 0-1200 mm/min.
1 relay box and pivoting panel with push buttons
1 operating manual and spare parts catalogue
