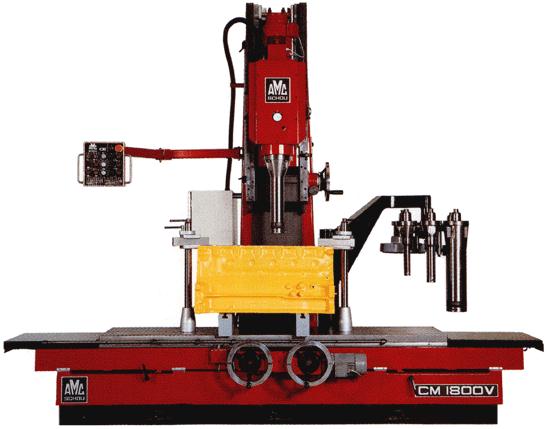

CM-1800V Cylinder Block Boring & Milling Machine

AMC-SCHOU

MODEL CM-1800V

Capac ity: Boring 32 - 350 mm (1,25" - 13,75") when equipped with all optional spindles

Table traverse 2025 mm (79,7")

Table surface 2130 x 450 mm (83,9" x 17,7")")

Graduation: mm or inch. Colour: red.

1 electric installation for 400 volts, 3 phase AC, 50 cycles

1 boring slide with following functions:

Spindle motor, 4.0 kW, stepless, 50-1200 r.p.m.

Boring feed, stepless, 20-1500 mm/min (0,8" - 59"/min)

Rapid return of boring slide, 1500 mm/min (59"/min)

1 automatic central lubrication system

1 dial indicator for depth control

1 tool setting micrometer with dial gauge

3 holders for above

2 setting -up blocks, 160 mm (6,3") high

2 setting -up blocks, 200 mm (8") high

1 set of bolts and spanners

1 set of telescopic table guards for table guideways

1 milling head, 300 mm (11.8") incl. 2 cutters and guard

1 box of 10 inserts for boring tool holders

1 motor for automatic table traverse, 0.55 kW, stepless 0-1200 mm/min.

1 relay box and pivoting panel with push buttons
