CP-2700 Crankshaft Straightening Press

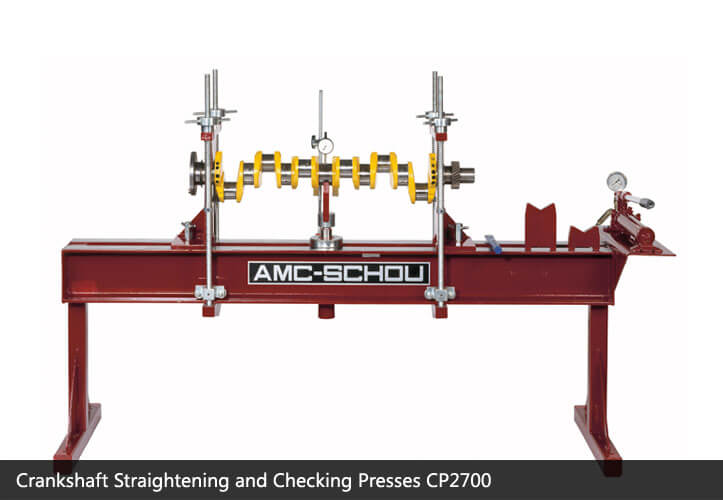

AMC-SCHOU CP-2700 Crankshaft Straightening Press

The Straightening Press offers a simple solution to a common problem.

• Easy operation - distorted journals are easy to locate and correct.
• Strong hydraulic pump - 2-speed including manometer.
• Ground bedway for precision alignment.
• Self retracting hydraulic ram.

Capacity: Max. length of crankshaft 2740 mm (107,8")

Max. journal dia. 150 mm (5,91")

Max. press 20 tons (44.100 lbs)

Machined bed with two supporting legs

2 hardened V-rests with quick clamps for workpiece

1 hand operated 2-step pump with pressure gauge

1 traversing hydraulic ram with three ram shoes

1 measuring device with magnetic shoe and special dial indicator mm or inch

1 chisel for peening of the fillets 250 mm (10") long
