CRA-2 Con Rod Aligner

SKU: CRA-2

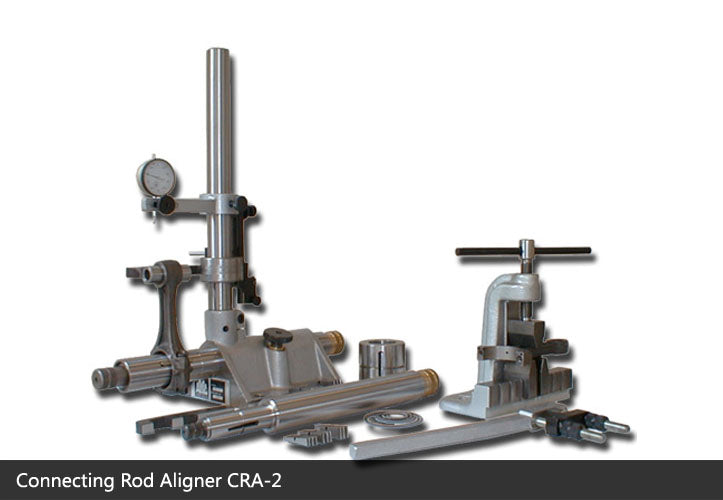

AMC-SCHOU CRA-2 Con Rod Aligner

Capacity: Max. length between centres of con rod 405 mm (16")

Graduation: mm or inch.

Colour: grey.

2 self-expanding arbors for dia. 34-106 mm (1,3" - 4,2")

1 bushing

1 dial gauge

1 straightening

TECHNICAL SPECIFICATIONS

CRA-2

Max. length of con-rod

mm
inch

460
18.1

Max. distance between centers

mm
inch

405
16

2 Self-expanding arbors for diameters

mm
inch

34-106
1 3/8-4 3/16

Dimensions

Height of machine

mm
inch

670
26.4

Total length of machine

mm
inch

340
13.4

Total width of machine

mm
inch

420
16.5

Net. weight approx

kg
lbs

45
99

Shipping weight approx. (wooden box)

kg
lbs

60
132
