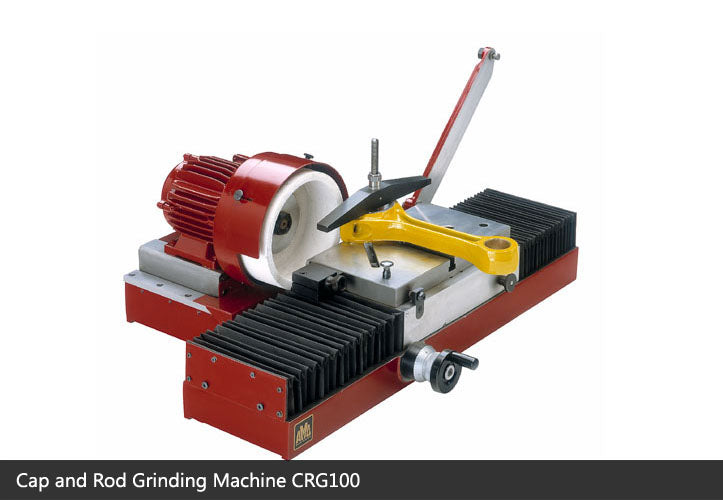

AMC-SCHOU CRG-100 Cap and Rod Grinder

TECHNICAL SPECIFICATIONS

CRG 100

Max. outside dimension of cap

mm
inch

275
10.83

Max. width of cap

mm
inch

100
3.94

Grinding wheel diameter

mm
inch

180
7.1

Motor

Electrical motor

kW
hp

0.55
0.75

Dimensions

Height of machine

mm
inch

 310
12.2

Total length of machine

mm
inch

760
29.9

Total width of machine

mm
inch

 550
21.7

Net. weight approx

kg
lbs

90
198

Shipping weight approx. (wooden box)

kg
lbs

120
264

Shipping volume

m³
ft³

0.26
9.18

Net weight

kg
lbs

95
20
