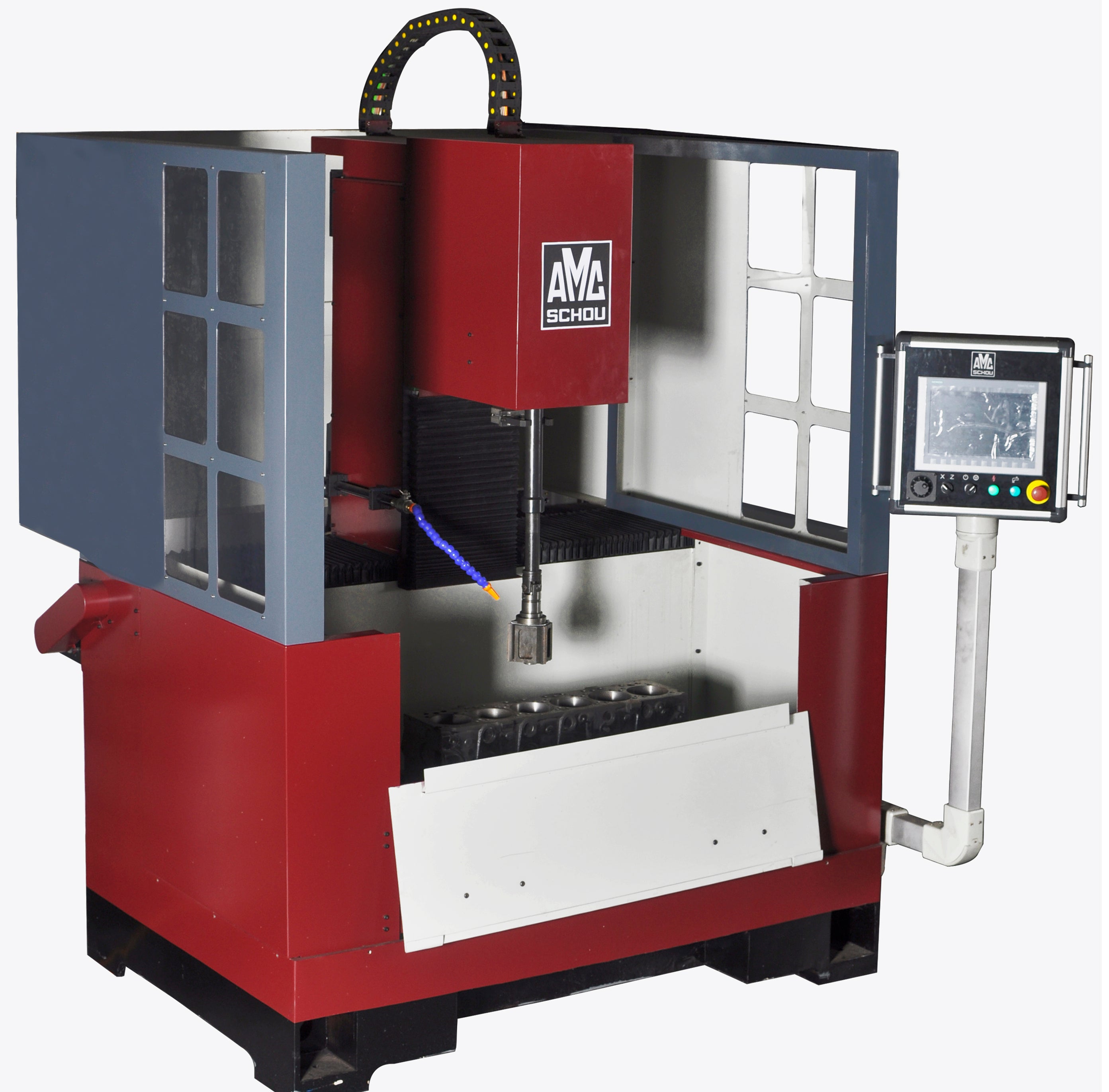

H-1000A CNC Honing machine
Features:
Rigid casting iron stucture- lasting decades, AMC-SCHOU spirit;
Closet metal sheet for CE standard;
15" Industrial Computor with touch screen: easy to see all information, AMC Smart Honing
Program as simple as cell phone game, remote cummunication for training, program upgrading, data download and trouble shooting via Skype etc.
Built-in coolant tank make the machine more compact and easy to clean.
Manual multi-angle fixture standard and servo driven automatic rollover fixture optional: easy honing and dripping afterwards.

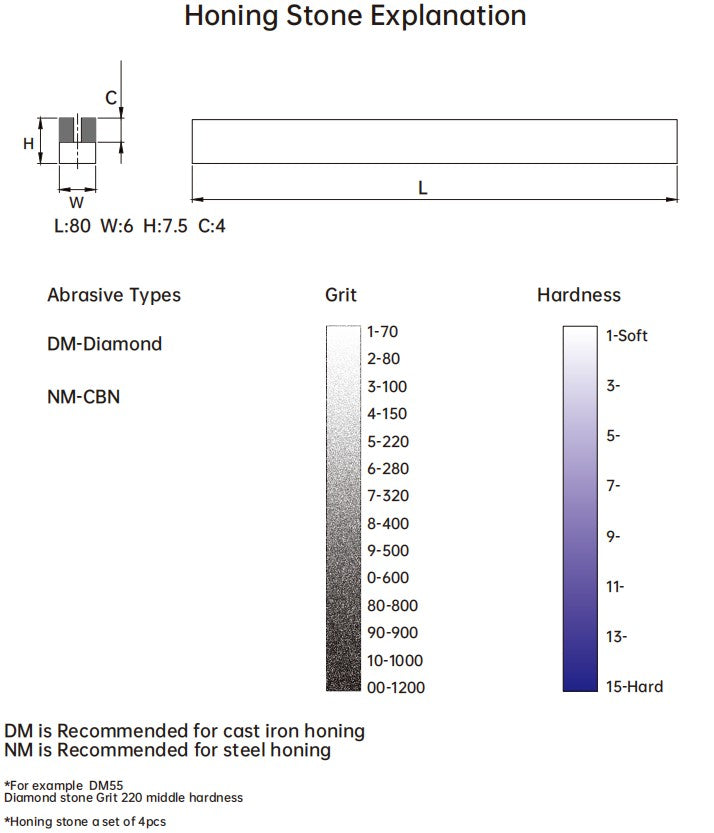

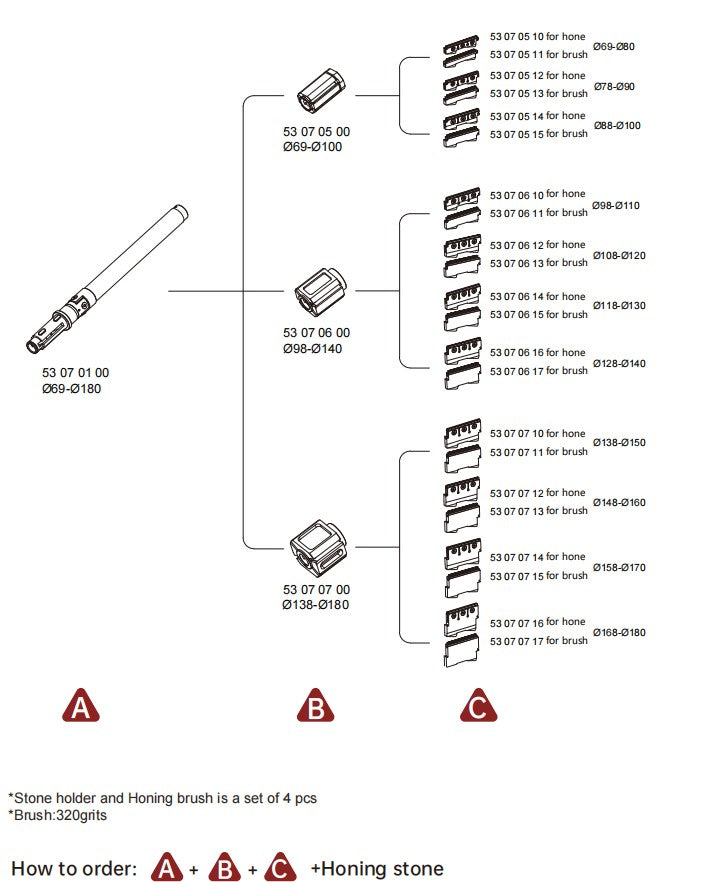

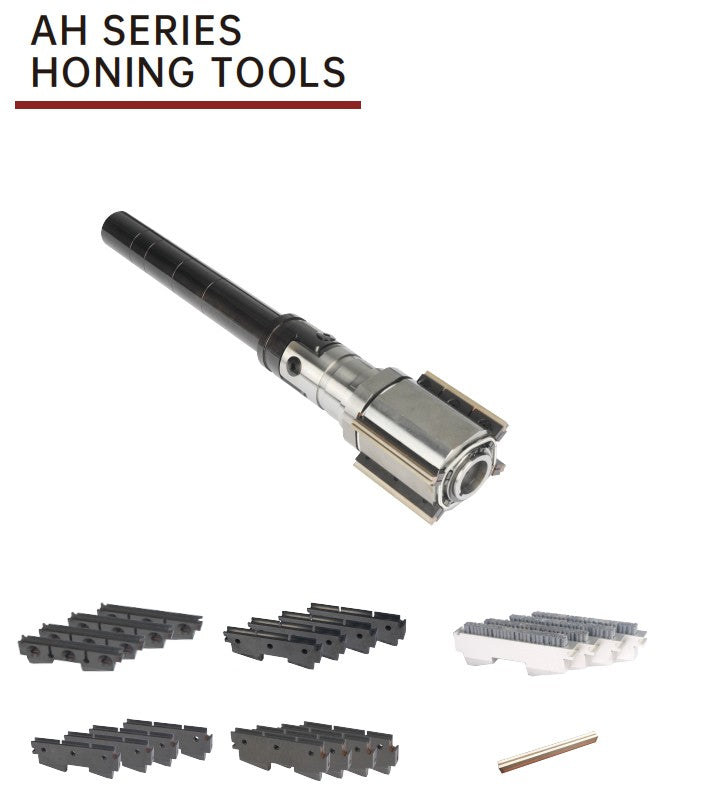

AMC Precision Hone head with 4 diamond stone and Plateau Brush covering 60-100mm Diameter for most popular engine block and bigger size hone head for up to 300mm bore.
Friendly to interchange of other styles of various hone heads.
Diameter Range 60-300 mm
Spindle/Hone Head Rotation Speed 1-330 RPM
Torque at Hone Head 70 Nm
Spindle Motor Power/Torque 2.5 kW/11.9 Nm
Stroker Motor Power/Torque 9.55 Nm
Stroke Acceleration 5 m/sec2
Spindle Stroke Speed 0-30 m/min
Stroke Length 500 mm
Horizontal Travel (X Axis) 1200 mm
Coolant Capacity 150 L
Coolant Pump Motor Power 0.12 kW

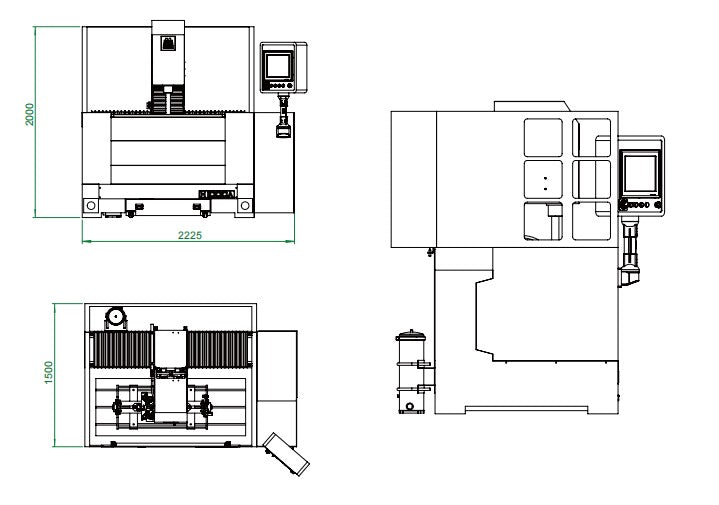

Floor Plan 2.3mL*1.4mW*2mH
Weight 2000kg
Electrical Supply 380V/50Hz/3Ph
Color Red and Gray
For B2B customers, please register here for EU VAT exemption.
H-1000A CNC Honing machine
Sale price€73.500,00
