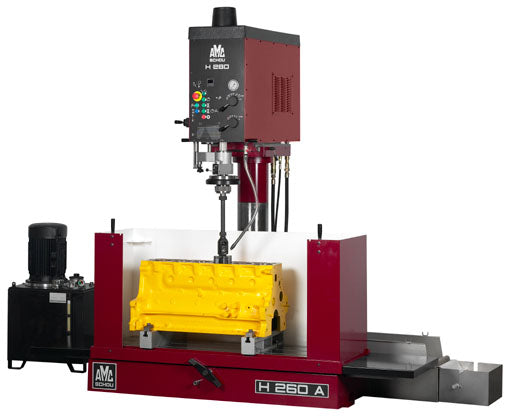

AMC SCHOU H-260A vertical honing machine

TECHNICAL SPECIFICATIONS

H 260 A

Max honing diameter * bigger diameter available on request

mm
inch

60
10.22

Min. honing diameter

mm
inch

25
0.98

Max. honing stroke

mm
inch

508
20

Min. honing stroke

mm
inch

50
1.97

Max. distance table to honing spindle nose

mm
inch

950
37.4

Max. distance from spindle centre to cloumn

mm
inch

430
16.9

Max. cross movement of honing box

mm
inch

130
5.1

Table surface

mm
inch

1450x450
57x17.7

Max. table traverse

mm
inch

1500
59

Infinitely variable spindle rotation

rpm

32-315

Infinitely variable reciprocating spindle speed

m/min
ft/min

5-20
16.4-65.6

Max. spindle torque

Nm
ft lbf

82.5
60.9

Maximum hydraulic pressure

bar
psi

120
1740

Motors

Electric motor for hydraulic

kW
hp

7.5
10

Coolant pump

kW
hp

0.16
0.21

Dimensions

Height of machine

mm
inch

2530
90.6

Total length of machine

mm
inch

2420
95.3

Total width of machine

mm
inch

1400
55.1

Working space required

mm
inch

3050x1400
120x55.1

Net. weight approx.

kg
lbs

1430
3146

Shipping weight approx. (wooden box)

kg
lbs

1630
3586

Shipping volume

m³
ft³

6.20
218.9
