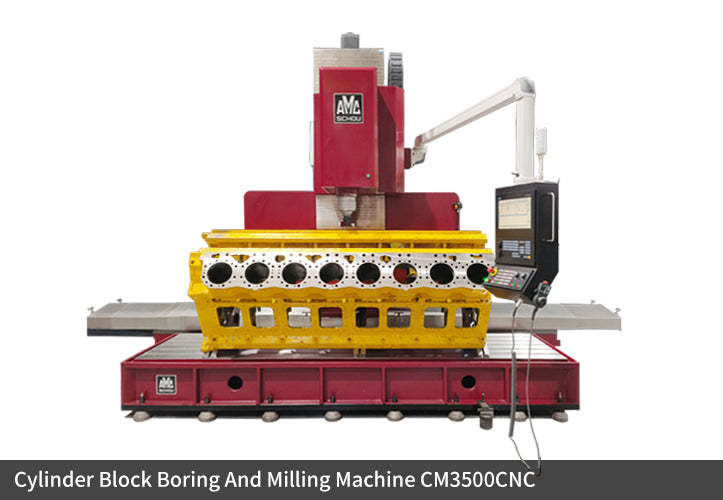

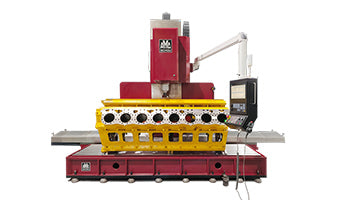

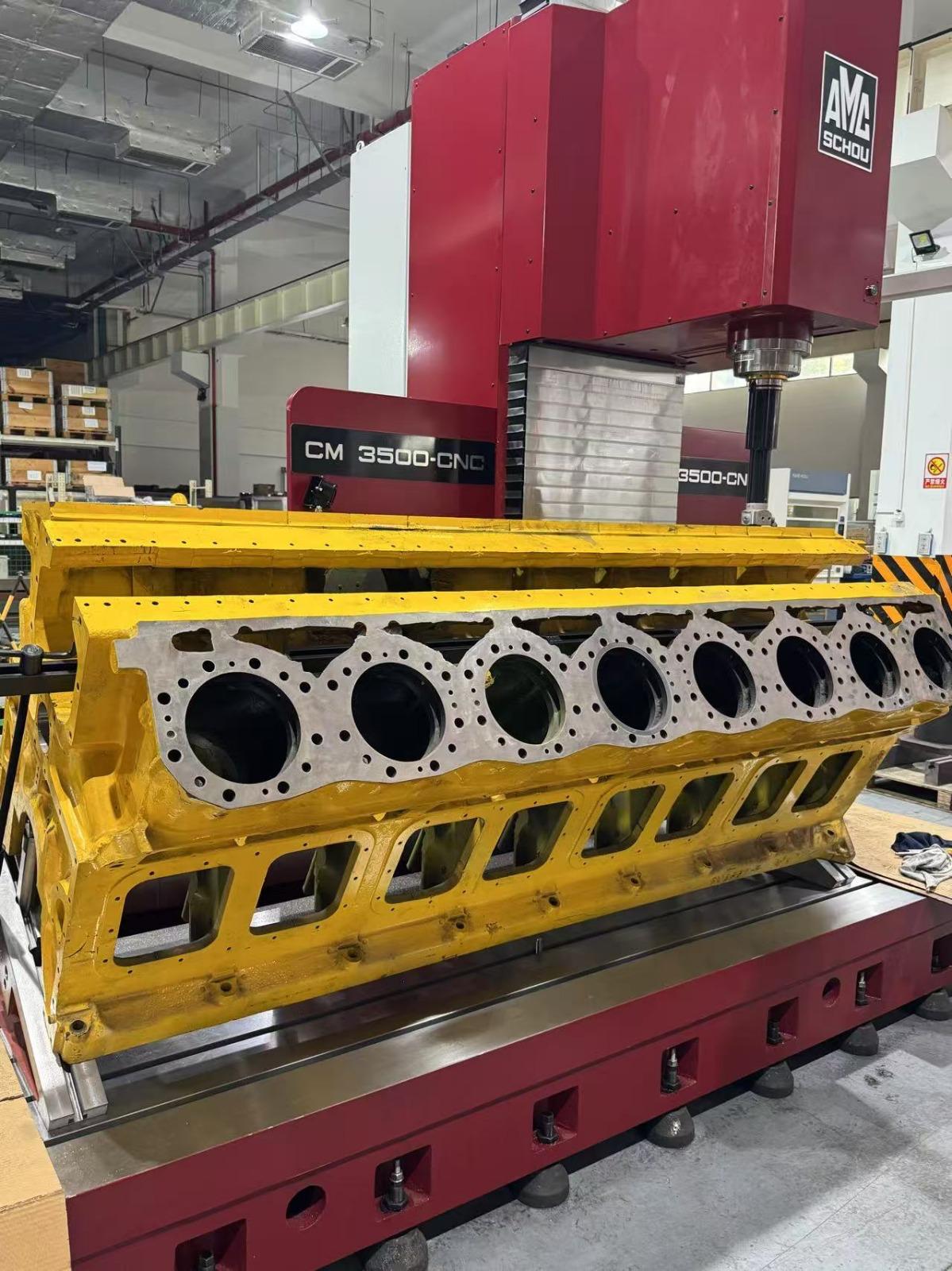

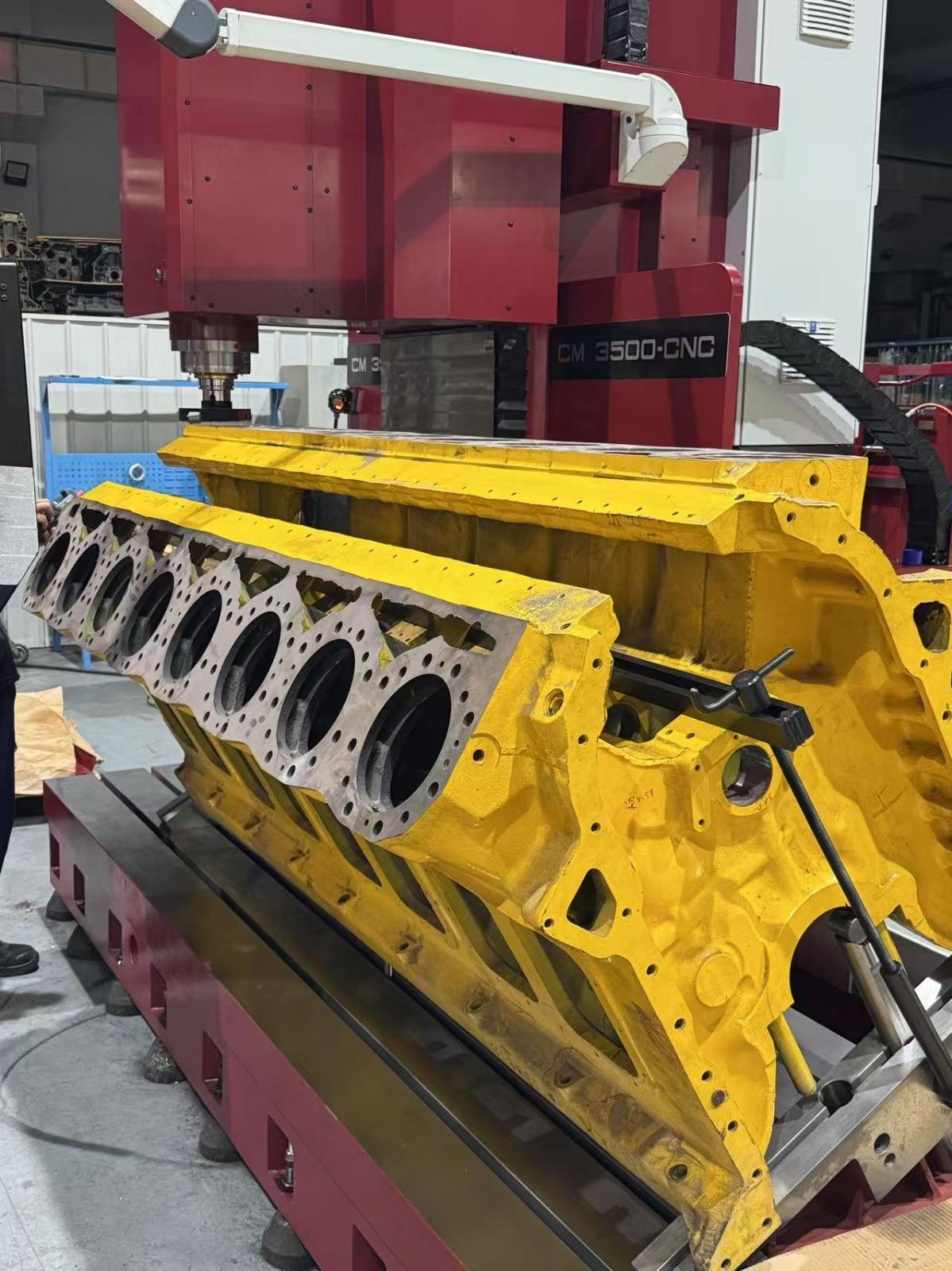

HEAVY DUTY CNC MACHINING CENTERS FOR CYLINDER BLOCK BORING AND MILLING
The new range of the AMC-SCHOU HEAVY DUTY CNC MACHINING CENTERS, is designed by more than 70 years’ experience for making strong and heavy machines, and are very user-friendly for the customers.
The new range of machines is made by very strong and heavy cast iron, and by using precision Europe brand Linear Guides, Ballscrews, Bearings and SIEMENS 828D control system.
The new range of machines are very good for rebuilding Cylinderblocks, but by using the standard SIEMENS 828D control system it is easy for make programs, and can machining all other parts too.
|
TECHNICAL SPECIFICATIONS |
CM-3500 CNC |
CM-4500 CNC |
CM-6500 CNC |
|
|
Boring range: |
mm |
20-500 |
20-500 |
20-500 |
|

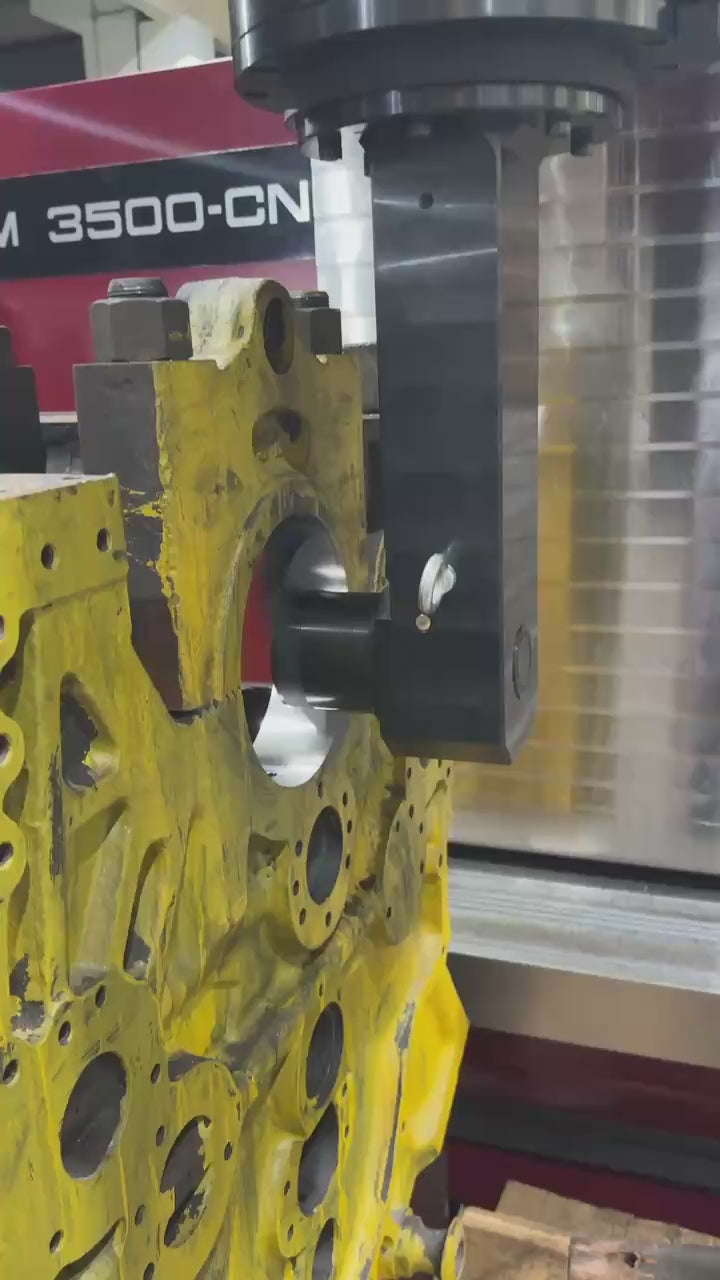

Line Boring: |
mm |
50-300 |
50-300 |
50-300 |
|
Travel Horizontal (X-axis): |
mm |
3500 |
4500 |
6500 |
|
Feed rate X: |
mm/min |
0-4000 |
0-4000 |
0-4000 |
|
Travel in/out (Y-axis): |
mm |
450 |
600 |
600 |
|
Feed rate Y: |
mm/min |
0-3000 |
0-3000 |
0-3000 |
|
Travel Vertical (Z-axis): |
mm |
1300 |
1300 |
1300 |
|
Feed rate Z: |
mm/min |
0-3000 |
0-3000 |
0-3000 |
|
Table size: |
mm |
3600x950 |
4600x1200 |
6100x1200 |
|
Spindle center to column: |
mm |
700 |
900 |
900 |
|
Spindle nose to table: |
mm |
500-1800 |
700-2000 |
700-2000 |
|
Max. load on table: |
kg. |
15000 |
25000 |
25000 |
|
Spindle RPM |
rpm |
0-1000 |
0-1000 |
0-1000 |
|
Spindle: |
type |
HSK 100 |
HSK 100 |
HSK 100 |
|
Motors |
||||
|
Spindle motor |
kw |
11 |
11 |
11 |
|
X motor |
kw |
4.4 |
4.4 |
4.4 |
|
Y motor |
kw |
4.4 |
4.4 |
4.4 |
|
Z motor |
kw |
4.4 |
4.4 |
4.4 |
|
Size |
mm |
5900x3300x3600 |
7000x3300x3900 |
9000x3300x3900 |
|
Control system |

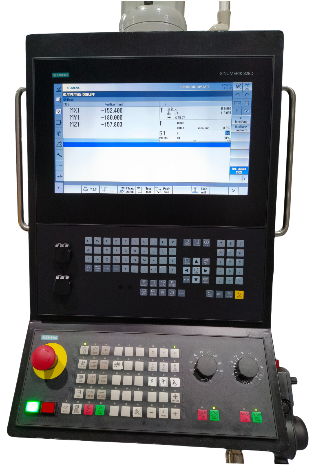

Pakage of Siemens Servo motors and Siemens 828D control system; AMC Smart-Block-Reman software easy to use for block reman machining, with standard Siemens milling and boring program for normal machining job. |
|||
