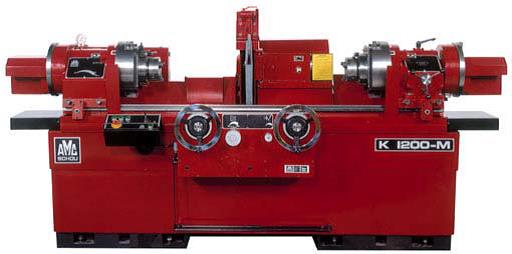

AMC-SCHOU K-1200U Crankshaft Grinding Machine

Capacity: 1200 mm (47,2") Colour: red

Swing over table: 460 mm (18") Graduation: mm or inch

Stroke: twice off-set of centres 160 mm (6,3")

CRANKSHAFT GRINDING MACHINE MODEL K-1200U

1 electric installation for 400 volts, 3 phase AC, 50 cycles

1 grinding wheel motor 4 kW

1 headstock motor, hydraulic

1 electric motor for hydraulic power station 3.0 kW

1 coolant pump 0.12 kW

1 hydraulic, rapid table traverse

1 infinitely variable table speed for cylindrical grinding

1 set of index pins, hydraulically operated

1 hydraulic tank complete with built-in pump, filters, oil and oil cooler

1 setting up system comprising two throwheads with 155 mm (6") universal chucks,

(indexing for every 3o and 72o), one centre with backplate, ballscrew for throwhead

movement

1 hydraulic quick movement of wheel slide 220 mm, manual movement of wheel slide 150 mm

1 headstock with infinitely variable speed: 20 - 100 r.p.m.

1 table with antifriction coating

1 crank centering V-gauge with dial indicator

1 set-up indicator with dial gauge

1 steady rest, standard

1 wheel dresser for face and side dressing

1 wheel dresser for radius dressing

1 diamond tipped dressing tool, 0.75 ct.

1 grinding wheel 660 mm (26") x 203.2 mm (8") x 25 mm (1")

1 grinding wheel hub with balancing arbor

1 lifting hook for grinding wheels

1 complete coolant arrangement with tank, hoses and nozzles

1 set of splash guards and spanners

1 operating manual and spare parts catalogue
