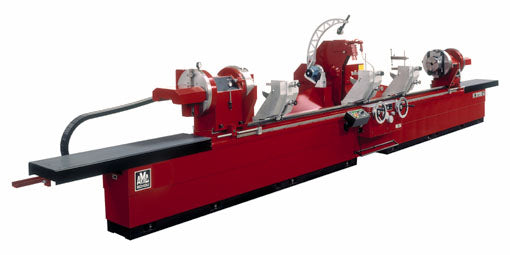

CRANKSHAFT GRINDING MACHINE MODEL K-3700U

1 electric installation for 400 volts, 3 phase AC, 50 cycles

1 Grinding wheel motor 7.5 kW

1 workhead motor, electrical with wormgear, clutch and remote control for rotation

1 electric motor for hydraulic power station 4.0 kW

1 cooland pump 0.12 kW

1 hydraulic, rapid table traverse

1 infinitely variable table speed for cylindrical grinding

1 set of index pins, hydraulically operated

1 hydraulically operated tailstock quill

1 hydraulic tank complete with built-in pump, filters, oil and oil cooler

1 setting-up system comprising throwheads with 230 mm (9") chucks, incl. jaws with 275 mm

(10,8") capacity (indexing for 30o and 72o), one centre with backplate, ballscrew for throwhead

movement

1 hydraulic quick movement of wheel slide 220 mm, manual movement of wheel slide 150 mm

1 workhead with infinitely variable speed: 15-90 r.p.m.

1 table with antifriction coating

1 crank centering V-gauge with dial indicator

1 set-up indicator with dial gauge

1 steady rest increased

1 heavy duty steady rest with dial gauge for vertical control

1 wheel dresser for face and side dressing

1 wheel dresser for radius dressing

1 diamond tipped dressing tool, 0.75 ct.

1 grinding wheel 813 mm (32") x 203.2 mm (8") x 25 mm (1")

1 grinding wheel hub with balancing arbor

1 complete coolant arrangement with tank, hoses and nozzles

1 lifting hook for grinding wheels

1 set of splash guards and spanners

1 set (2 pcs) of inside counter weights

1 operating manual and spare parts catalogue
