MACHINING CENTERS FOR CYLINDER BORING AND MILLING

TECHNICAL SPECIFICATIONS

CM-650 CNC

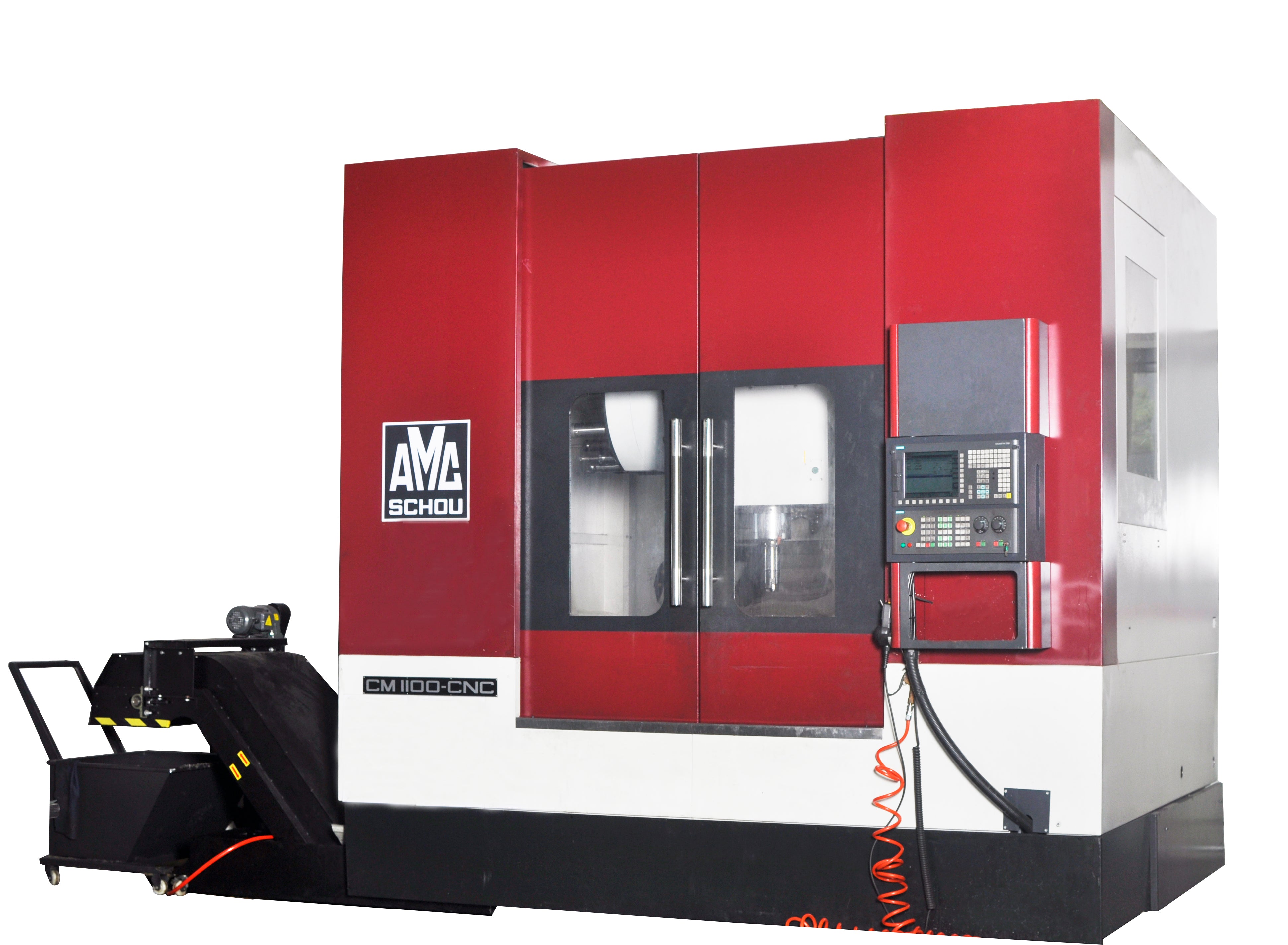

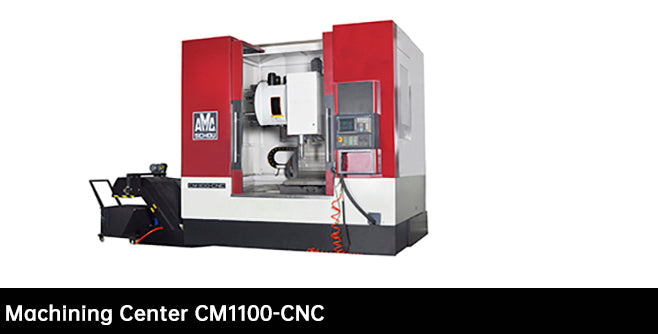

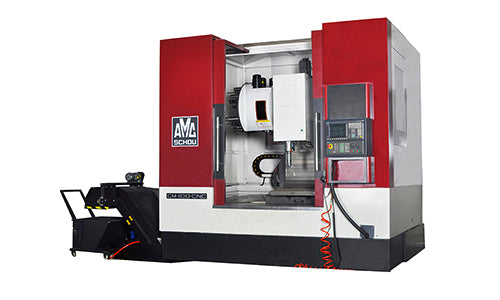

CM-1100 CNC

CM-1600 CNC

CM-2000 CNC

Boring range:

mm

20-150

20-150

20-300

20-300

Travel Horizontal (X-axis):

mm

650

1100

1600

2000

Feed rate X:

mm/min

0-24000

0-24000

0-24000

0-24000

Travel in/out (Y-axis):

mm

400

450

600

600

Feed rate Y:

mm/min

0-24000

0-24000

0-24000

0-24000

Travel Vertical (Z-axis):

mm

500

780

720 (980 optional)

720 (980 optional)

Feed rate Z:

mm/min

0-24000

0-24000

0-24000

0-24000

Table size:

mm

800x400

1500x500

1800*600

2200*600

Spindle center to column:

mm

500

650

650

650

Spindle nose to table:

mm

200-700

220-1000

280-1000

280-1000

Max. load on table:

kg.

600

1100

2500

3000

Spindle RPM

rpm

0-8000

0-8000

0-8000

0-8000

Spindle:

type

BT 40

BT 40

BT 50

BT 50

Motors

Spindle motor

kw

11

11

11

11

X motor kw

kw

3.3

3.3

3.3

3.3

Y motor kw

kw

3.3

3.3

3.3

3.3

Z motor kw

kw

3.3

3.3

3.3

3.3

Control system

Pakage of Siemens Servo motors and Siemens 828D control system;
AMC Smart-Block-Reman software easy to use for block reman machining, with standard Siemens milling and boring program for normal machining job.
