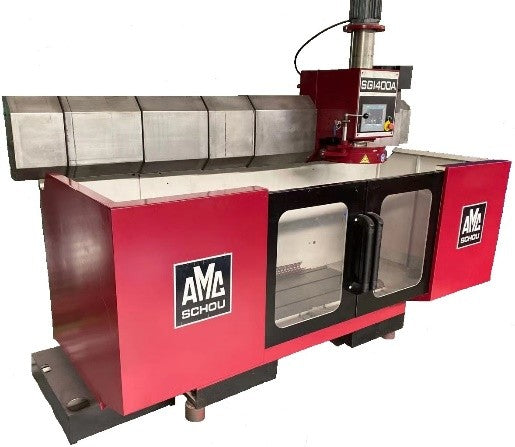

SG-1400A Automatic Surface Grinding Machine

AUTOMATIC SURFACE GRINDING MACHINE MODEL SG-1400A

Capacity: 350 X 1400 mm (13 1/2" X 55")

Graduation: mm or inch.

Colour: red.

1 electric installation for 400 volts, 3 phase AC, 50 cycles

1 SIEMENS PLC control system

1 grinding wheel motor 4 kW

1 X-axis travel SIEMENS 1FL6067 servo motor 2 Kw.

Z-axis travel SIEMENS 1FL6044 servo motor 0,75 Kw.

1 coolant pump 0.12 kW

1 grinding wheel head 350 mm (13.8") with 12 segments

1 variable grinding wheel speed: 0-1400 r.p.m. (0-900 r.p.m. with 400 mm head)

1 variable feed on grinding wheel head: 0-3000 mm / min

1 wheel dresser

1 arbor for balancing of wheel head

1 disc for mounting of segments

2 setting-up blocks 600 mm (23 5/8") long x 130 mm (5 1/8") high

2 setting-up blocks 600 mm (23 5/8") long x 160 mm (6 5/16") high

2 setting-up blocks 600 mm (23 5/8") long x 200 mm (8") high

2 setting-up blocks 1050 mm (41 5/16") long x 120 mm (4 3/4") high

1 central lubrication pump

1 puller for wheel head

1 set of clamps, bolts, spanners and splash guards

1 operating and spare parts catalogue
