ATOM 1000
Tax excluded. Shipping calculated at checkout
PARTS WASHERS WITH ROTARY PIPES AND ELECTROMECHANICAL COMMANDS

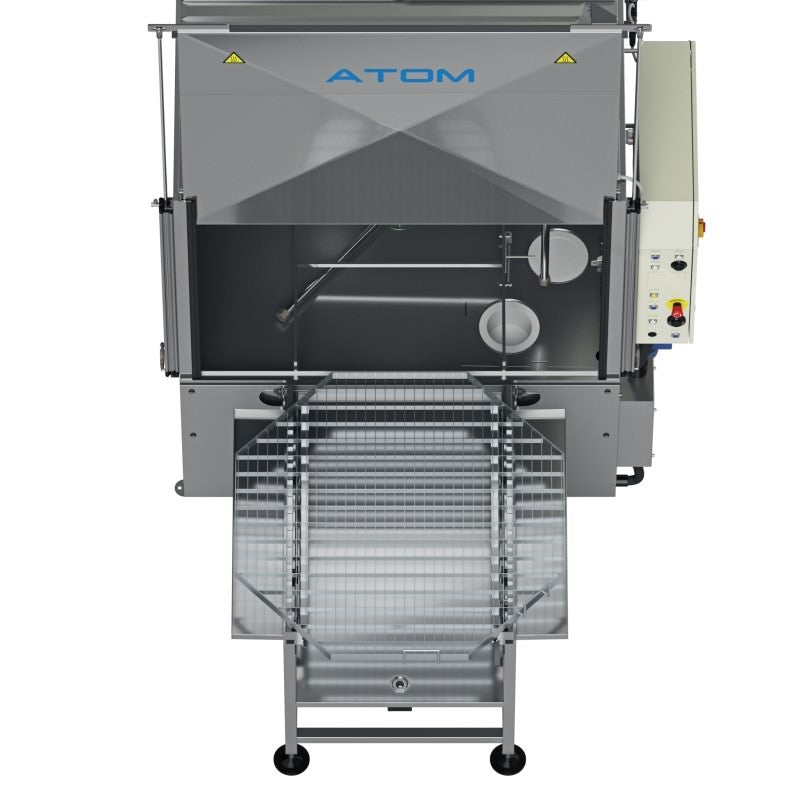

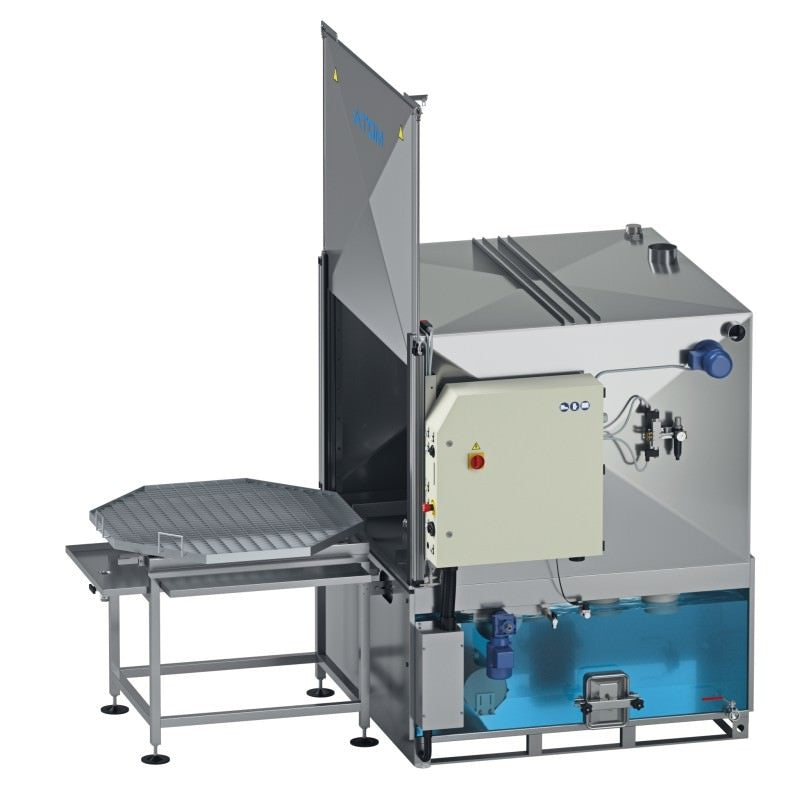

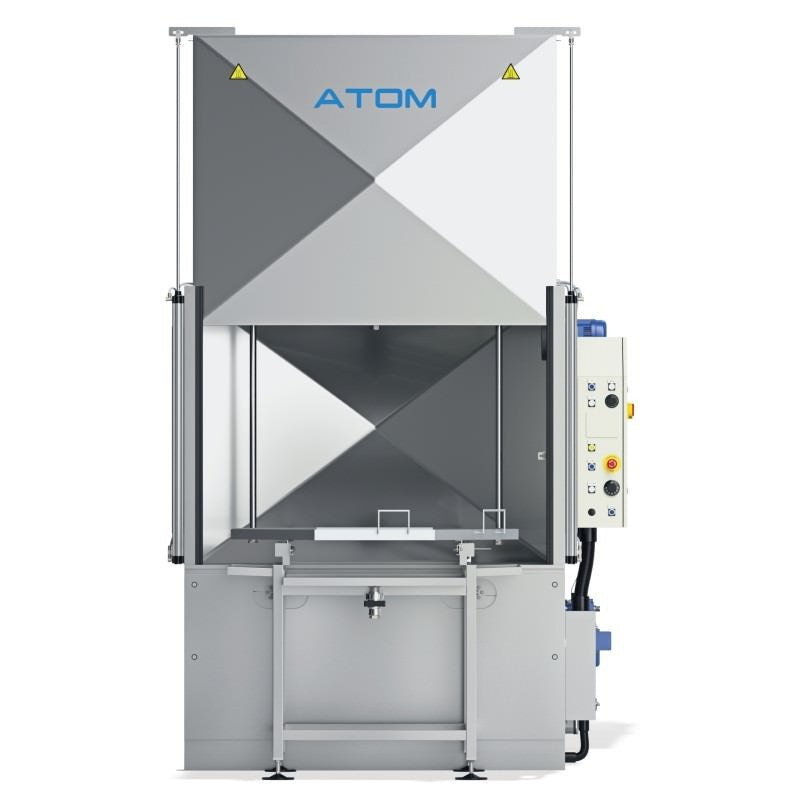

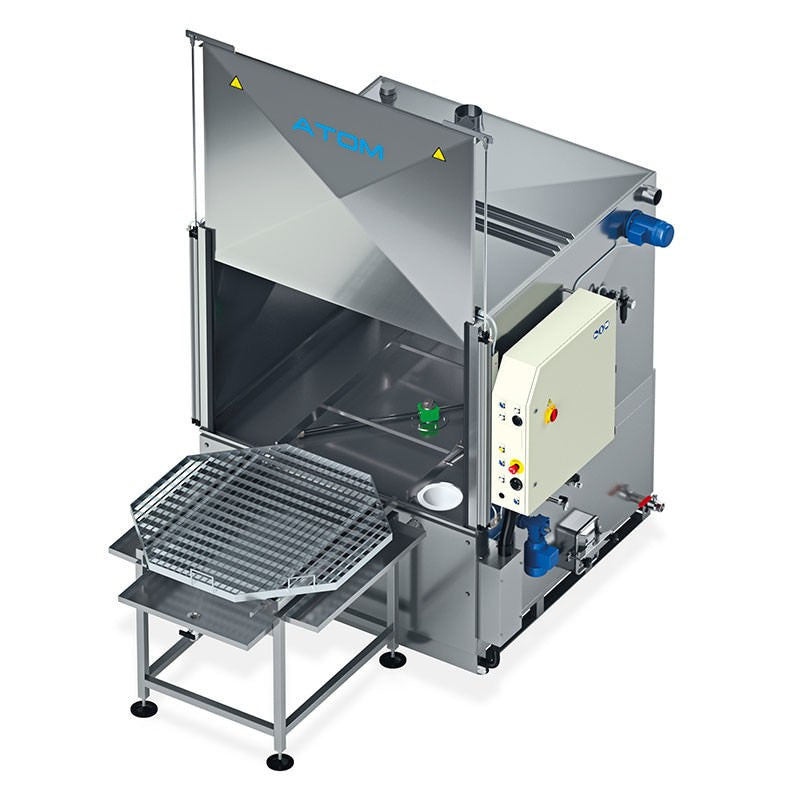

Atom is a system ideal for the automatic washing of medium and large size mechanical parts.
The washing is carried out by the action of upper, lower and side jets, and their rotation is ensured by a powerful steel pump.
The board is electromechanical.
Operators can set the tank liquid temperature as well as the length of the treatment cycle.
For B2B customers, please register here for EU VAT exemption.
ATOM 1000
Sale price€16.194,21
CHARACTERISTICS
What is included in each ATOM
- Electric timed steam extraction
- ISO pneumatic cylinders and "anti-fall" pneumatic safety valves
- Two-hand safety control for the door closing
- Tank liquid maximum level control and solenoid valve for automatic water intake
- Minimum level control
- Electric pump in cast iron with special gaskets
- Filter in stainless steel AISI 304 on the pump suction
- Safety limit switch on the door opening
- IP 65 electric system, electromechanical commands
- Reinforced basket in pressed grating with raised external edge in galvanized iron
- Sludge discharging door for an easy tank cleaning
- Fixed external loading/unloading station with drip-catcher in stainless steel AISI 304
- Stainless steel AISI 304 structure and plates in contact with the liquid
- Lower load-bearing structure in Stainless steel
- Triple door gasket (lower, upper and side)
MACHINEPARTS
ATOM 1000
- Washing capacity ( Ø x H ): Ø 90x H 70 cm
- Basket load capacity: 600 kg
- Tank: 280 lt
- Washing capacity ( Ø x H ): Ø 110 x H 80 cm
- Basket load capacity: 600 Kg
- Tank: 350 lt
- Washing capacity ( Ø x H ): Ø 128x H 90 cm
- Basket load capacity: 600 kg
- Tank: 500 lt
- Washing capacity ( Ø x H ): Ø 165 x H 100 cm
- Basket load capacity: 600 Kg
- Tank: 700 lt
- Washing capacity ( Ø x H ): Ø 200 x H 100 cm
- Basket load capacity: 600 Kg
- Tank: 1000 lt
- Maximum temperature setting 60°C
- Maximum temperature setting 80°C
