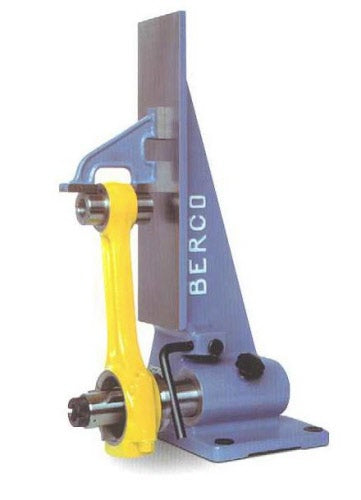

BERCO SB450 Connecting Rod Aligner

CON-ROD CHECK SQUARE SB450

Service plate dimensions 125x450mm (5"x17.3/4")

Max. length of con-rod admitted 450mm(17.3/4" )

Complete with: Check square for con-rod.

Approx. weight unpacked: 25kg (55lbs)

Fixture is without fixturing shaft, you need to add essential equipment SBR50 and/or SBR95:

Essential Equipment :

• SBR50 (A00.51569)  EXPANDING ARBOR 30-49MM (1.181"-1.920")Expanding mandrel for clamping con rods complete with two sets of three expanding blades, 30-49mm range.
• SBR95  (A00.51559) EXPANDING ARBOR 48-98MM (1.890"-3.860")Expanding mandrel for clamping con rods complete with three sets of three expanding blades 48-98mm range.
