BL650VS brake disc and drum lathe with cabinet - 240V

The BL 650VS Brake Lathe is designed to recondition all brake discs and drums of cars, light trucks and SUV and is the result of development process with input from around the globe.

A 180 kg rigid cast iron body and a solid Heavy-Duty Work Bench eliminates transient vibrations ensuring the best surface finish.

The BL 650VS uses independent precision electric DC gear-motors to control the cross-feed and spindle speed drives.

Adjustable spindle speed allow for fast turning of small pieces and high-quality turning of larger pieces - no belt changes.

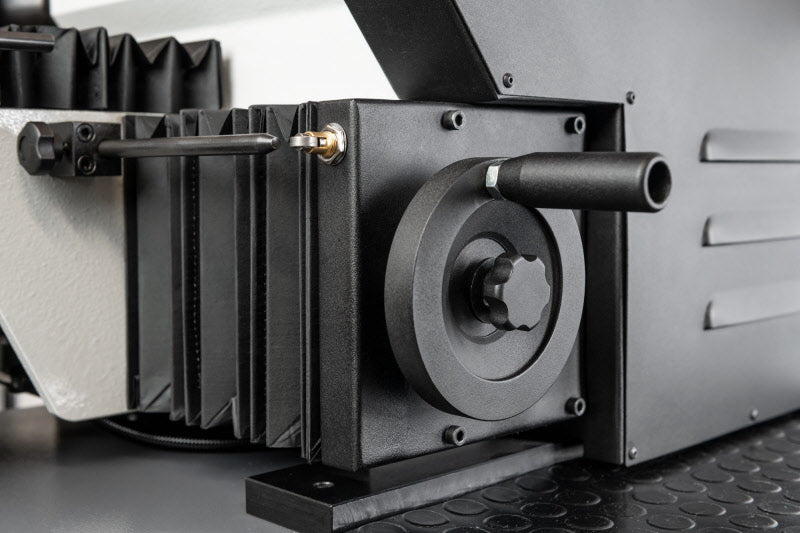

The cross slide feed with variable speed always assures the best surface finishing.

Now you have complete control over the entire process and can make adjustments.

• Separate DC gear-motors on the drum and disc feed for best surface results
• Electronically controlled variable spindle speed and cross feed speed provide a perfect finish
• Mounted tool board for convenient access to adapters and tools
• Quick changover from disc to drum
• Automatic shut-off

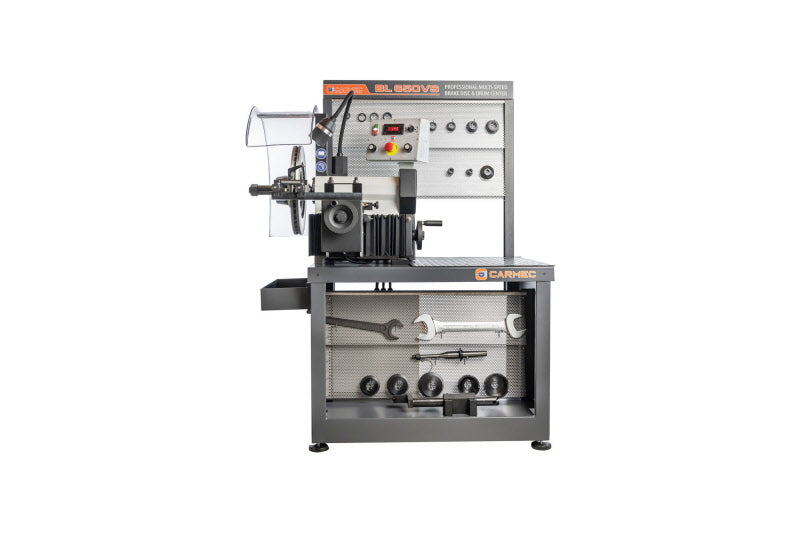

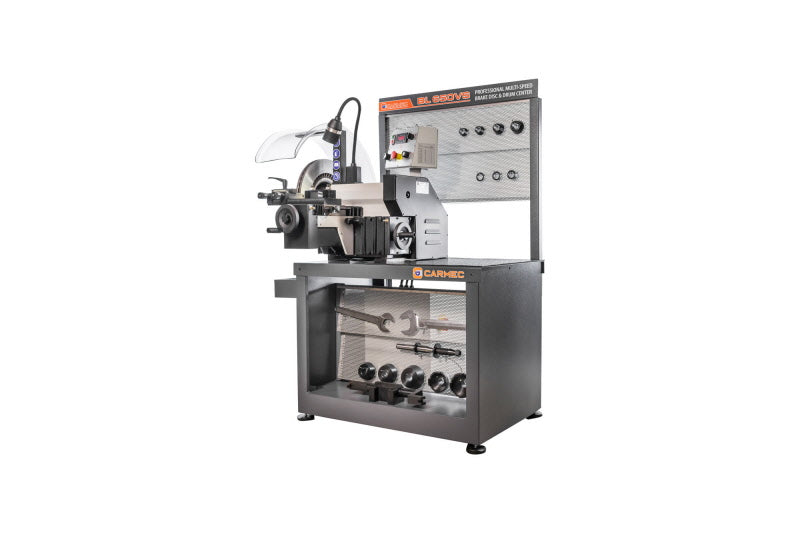

This complete lathe package includes the lathe with Twin Cutter Head, Standard accessories which cover most applications and rugged work bench with large storage boards for tools and accessories.

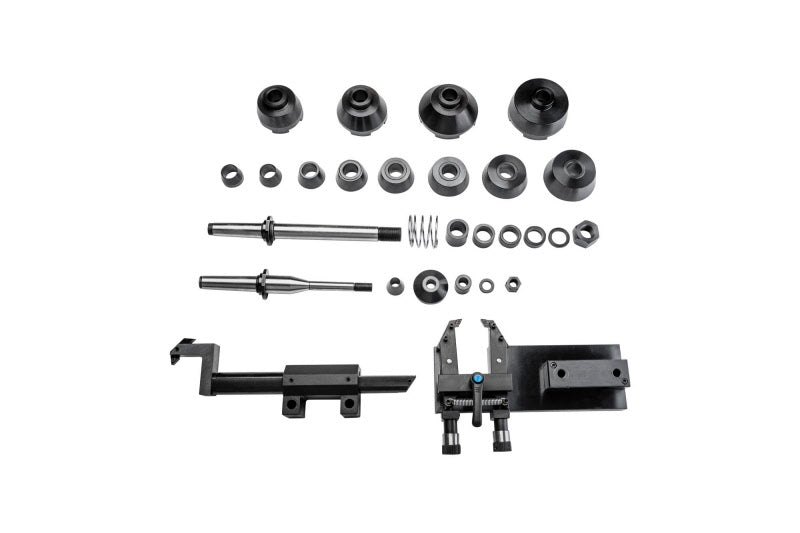

The standard equipment, including a 31 and 18 mm arbor and a wide set of centering cones and blocking bells, allows a quick and accurate centering of work piece.

STANDARD EQUIPMENT:

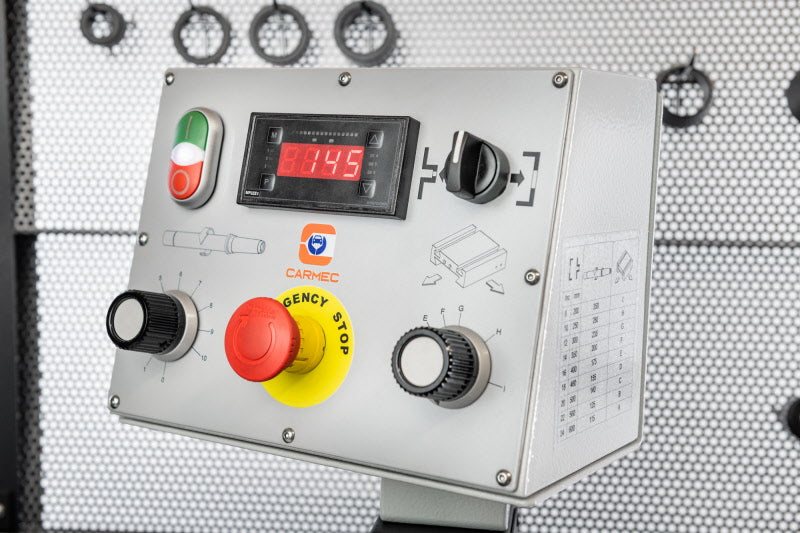

• Low voltage electric controls (24V)
• Heavy Duty Work Bench
• Removable Chip Tray
• Tool Storage Boards
• Accessories Hooks
• Safety Plexiglass Guard

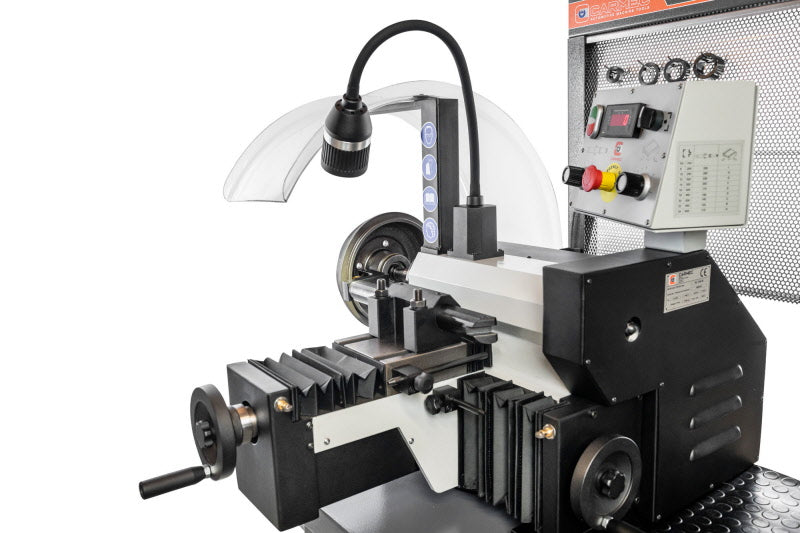

• LED Work Light

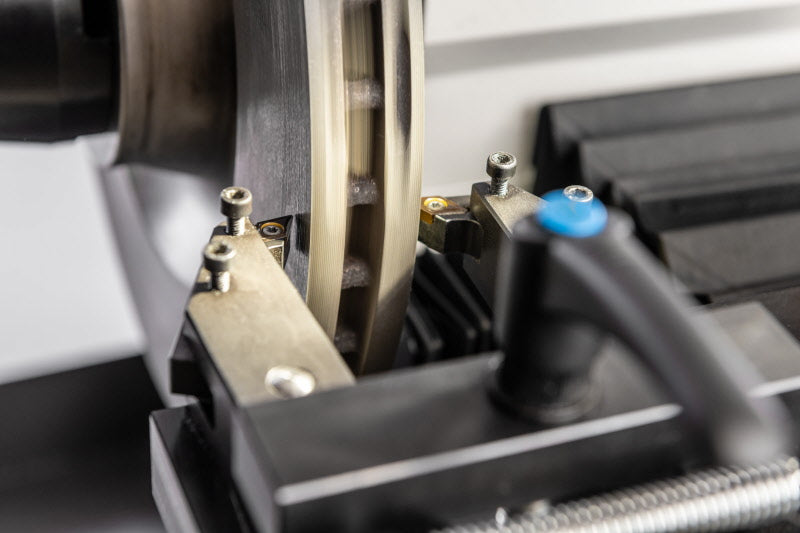

• Adjustable Twin Cutter Head for Discs
• Insert tool holder for Discs (2 pcs.)

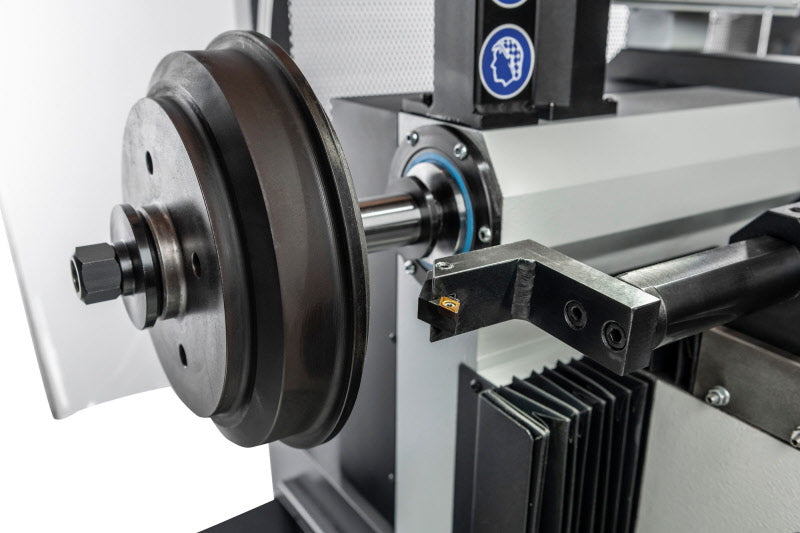

• Drum Boring Bar
• Insert tool holder for Drums
• Cross Feed Lock Knob

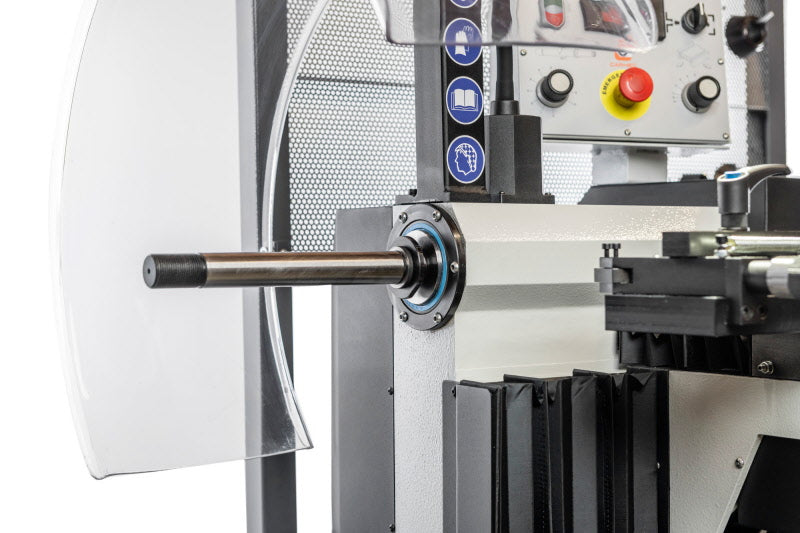

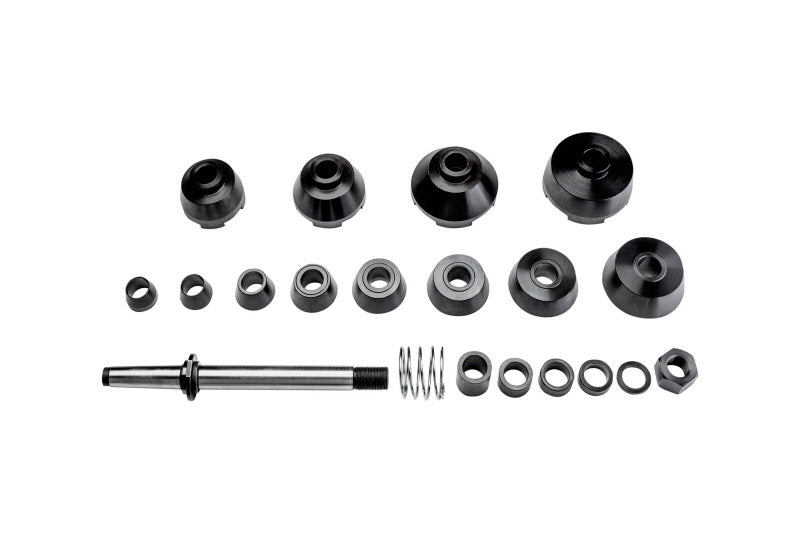

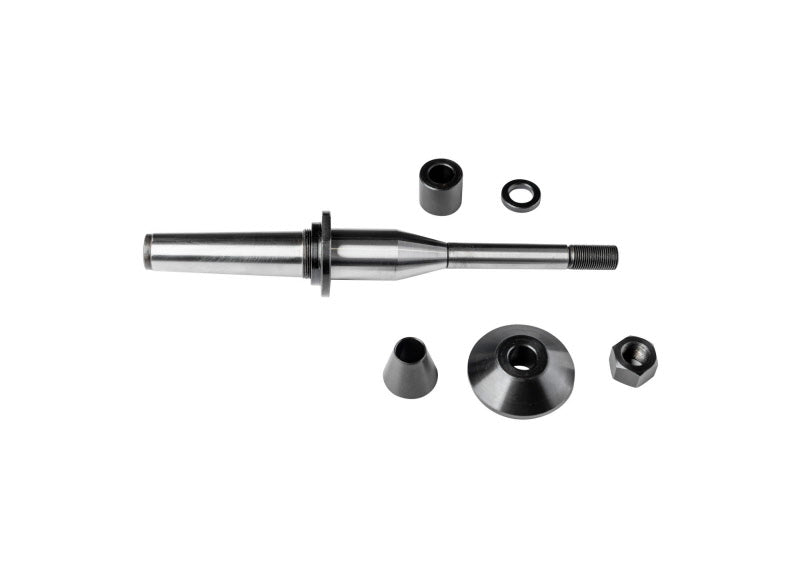

• Ø 31mm (1.25") Arbor Set with Centering Cones, Clamping Bells, Spacers, Spring and Nut

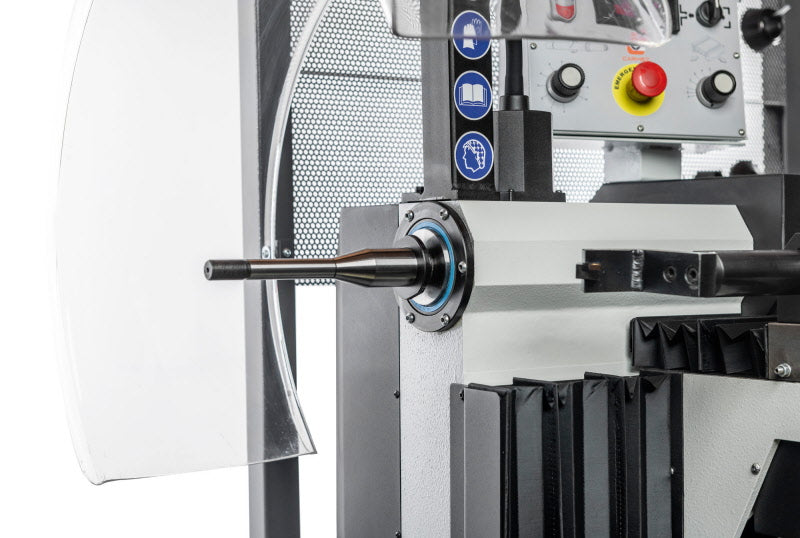

• Ø 18mm (0.7") Arbor Set with Centering Cones and Nut
• Disc Clamp-on Silencer
• Rubber Strap Silencer for All Vented Discs
• Rubber Drum Silencer Band
• Horizontal Adjustment Leveling Pads
• Set of Service Tools
• Instruction Manual



  Min - Max Disc diam. 102 - 635 mm (4" - 25")

  Max Disc Thickness 100 mm (4")

  Min - Max Drum diam. 150 - 650 mm (6" - 26")

  Max Drum Depth 200 mm (8")

  Infinitely Variable Spindle Speed 0 ÷ 350 RPM

  Infinitely Variable Disc / Drum Feed 0 ÷ 72 mm/min / 0 ÷ 2.85"/min

  Spindle Motor Power 1,5 kW - 2 HP

  Drum Feed DC Motor 185 W

  Disc Feed DC Motor 185 W

  Voltage (+/- 15%) 215 / 240 V

  Phases 1 Ph

  Frequency 50 / 60 Hz

  Net Weight (bare machine) 250 kg (550 Lbs.)

  Machine Dimensions (LxWxH) 1250x1100x1650mm (49" x 43" x 65")

  Shipping Dimensions (LxWxH) 1150x1050x1750mm (45" x 41" x 67")

  Shipping Weight w. Bench & Tools 350 kg (770 Lbs.)

  Specifications and design are subject to change without notice.
