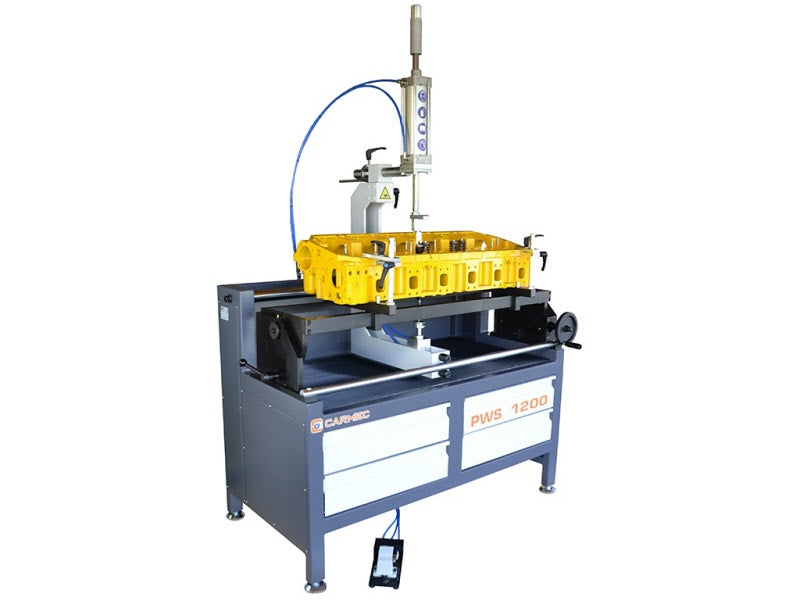

PWS1200 Heavy Duty Cylinder Head Work Bench

The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed "hand free". Access for camshaft setting and all other cylinder head operations.

Machine's Characteristics:

• New underneath arm with counter tip
• Rapid, adjustable manual clamping system
• Handwheel for easy angle adjustment
• Cylinder head rotary stand at 20°
• Pneumatic foot control
• Variable speed regulation for air cylinder
• Air cylinder easily tilts to any valve angle and assembly slides from valve
• 5 sizes compressing foot

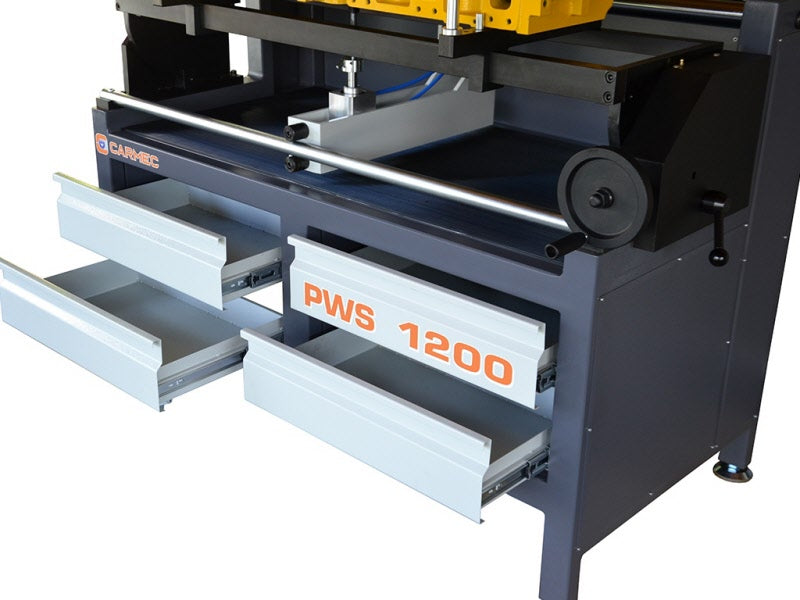

• Tool and accessories drawers for convenient components storage
• Valve keeper installing tool (OPTIONAL)
• Valve keeper retrieving tool (OPTIONAL)


  Horizontal movement 1100 mm
  Table dimensions 1300×360 mm
  Max head capacities 1350×460×270(h) mm
  Air pressure required 6÷8 bar
  Compression force 4.436 N at 10 bar
  Length 1550 mm
  Width 850 mm
  Height 1710 mm
  Net weight 300 Kg
  Shipping weight 455 Kg
  Packing dimensions 2000×1200×1930 mm
