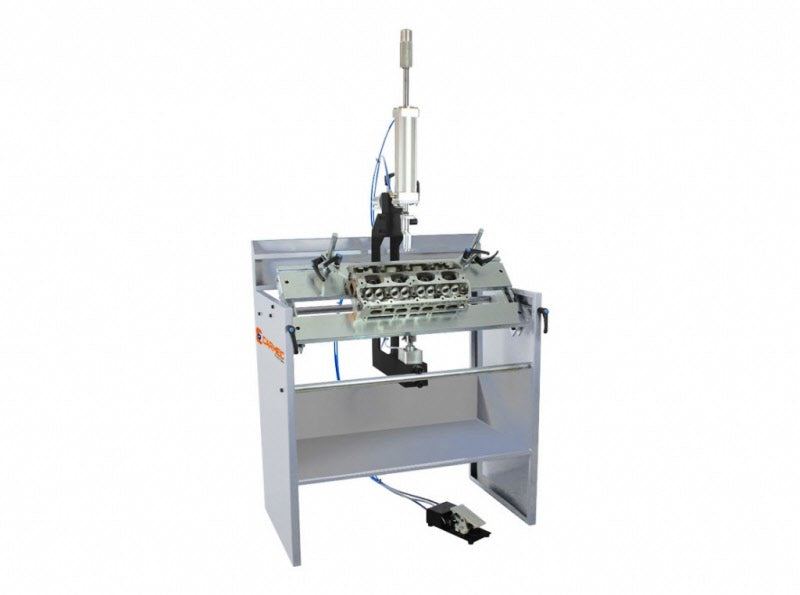

PWS900 Universal Cylinder Head Work Bench

SKU: PWS900
Sale price€3.150,00

Tax excluded. Shipping calculated at checkout

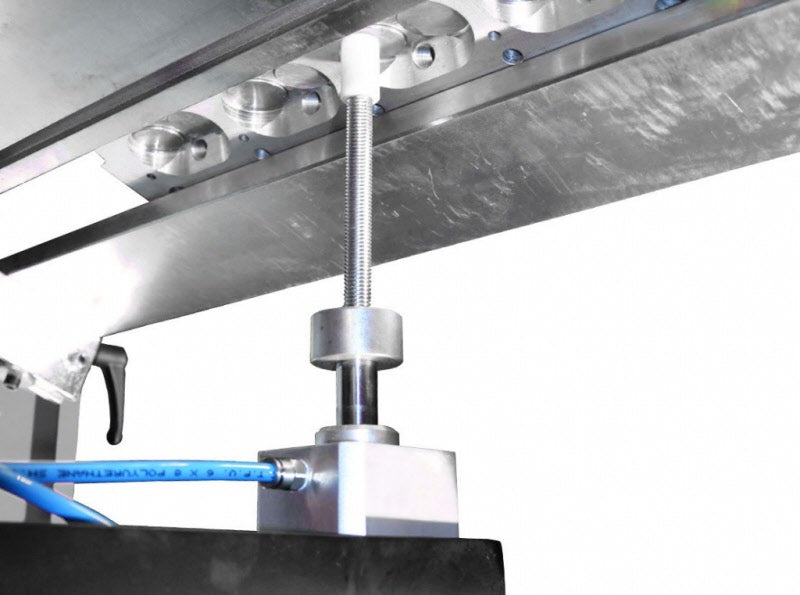

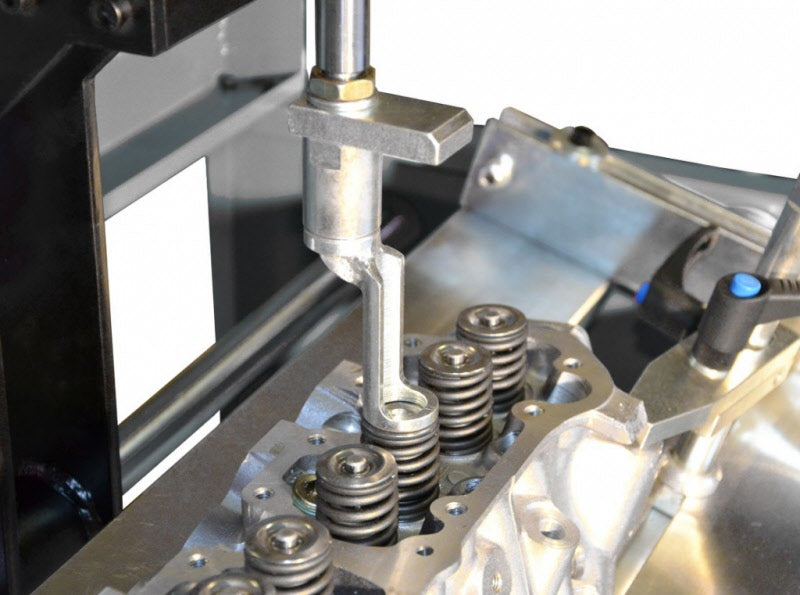

The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed "hand free". Access for camshaft setting and all other cylinder head operations.

Machine's Characteristics:

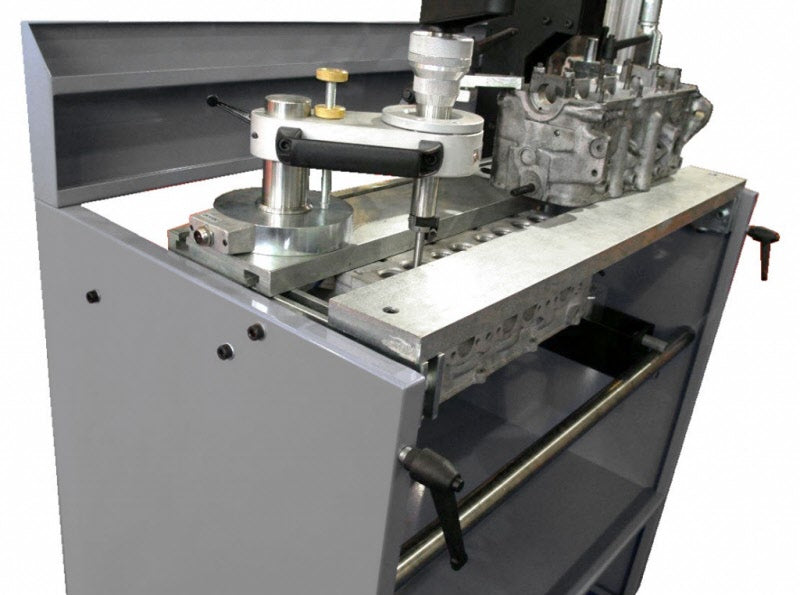

- "Tee slots" milled plate for clamping system on the working plane

- Rapid, adjustable manual clamping system

- Cylinder head rotary stand at 360°

- Pneumatic foot control

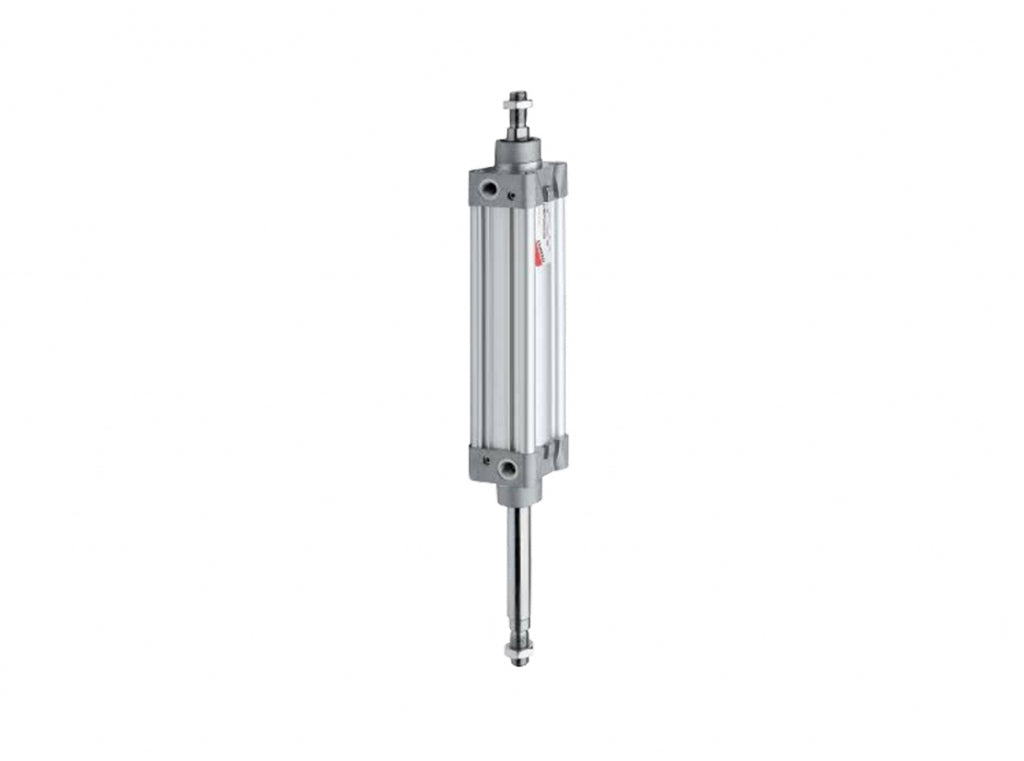

- Variable speed regulation for air cylinder

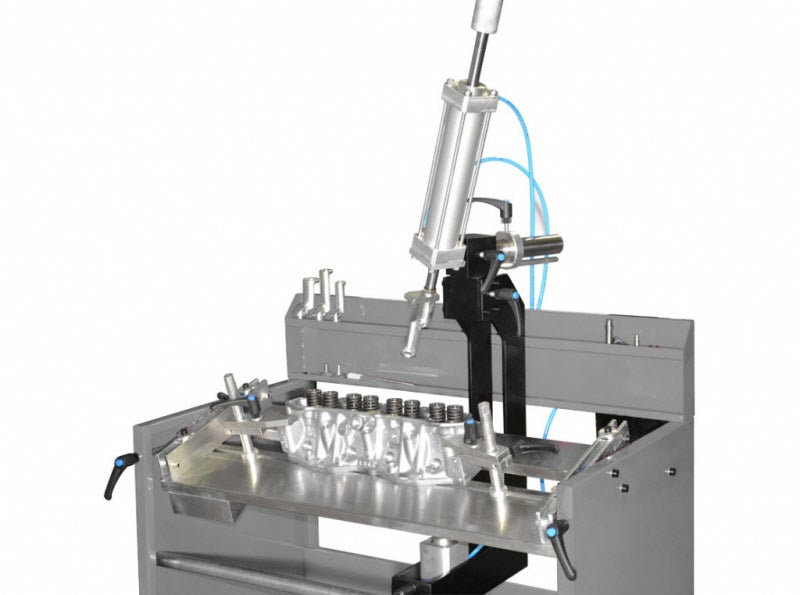

- Air cylinder easily tilts to any valve angle and assembly slides from valve

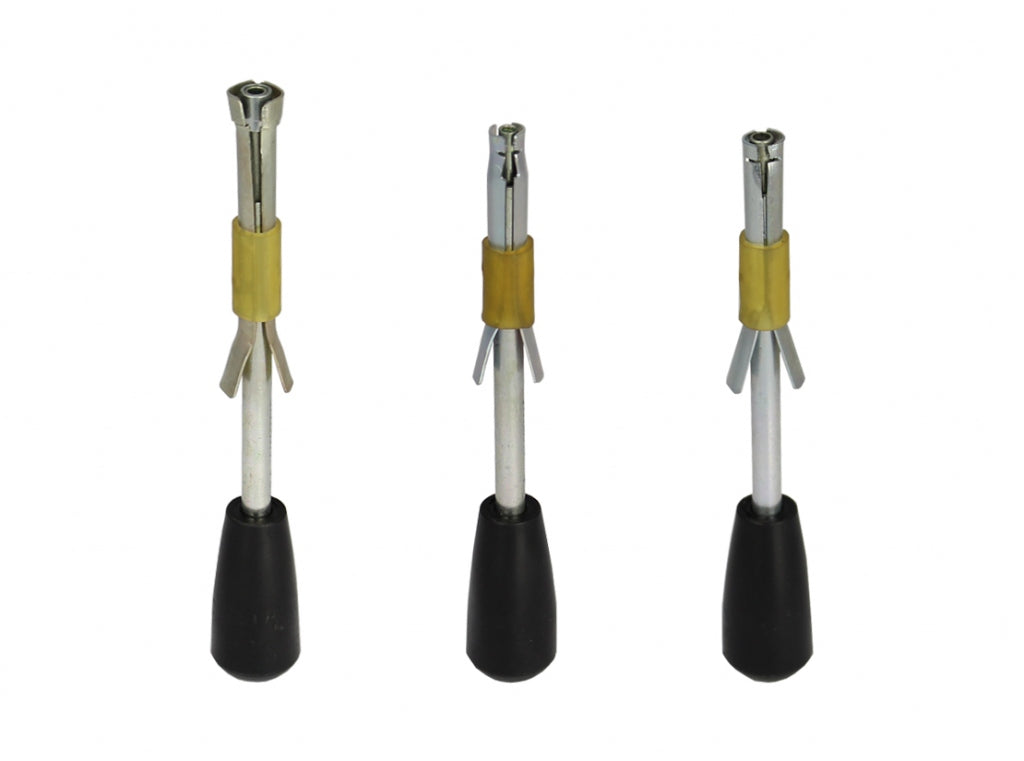

- 4 sizes compressing feet

Table dimensions 870×400 mm (34.2"×15.7")
Usable working table 850 mm (33.5")
Space required 960×680 mm (37.8" x 26.8")
Air pressure required 6÷8 bar
Length 960 mm (37.8")
Width 680 mm (26.8")
Height 1500÷1680 mm (59"÷66")
Net weight 131 kg (288 lbs)
Shipping weight 159 kg (350 lbs)
Packing dimensions 1200×800×1500 mm (47.2"×31.5"×59")
