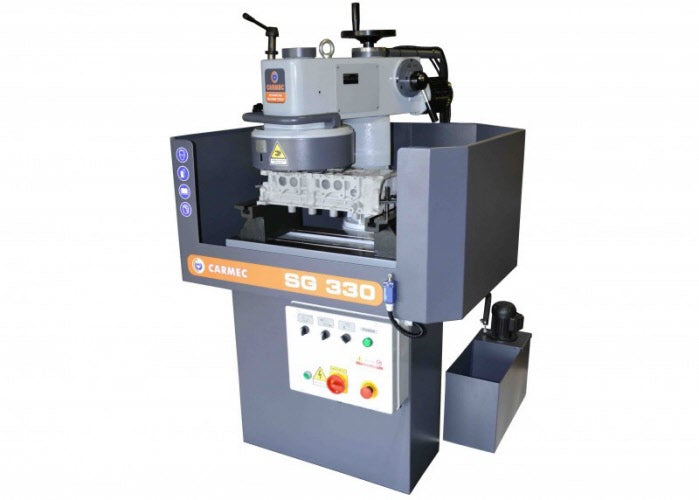

SG330 Swing Head Surface Grinding & Milling Machine

The SG330 is a handy small swing head surface grinding and milling machine for cylinder heads and engine blocks of passenger cars and light trucks. With two spindle speeds in its head, it is suitable for resurfacing aluminium, cast iron and also alu /pre-chambers cylinder heads. Machine has automatic feed of wheelhead in horizontal movement and manual in vertical movement.

Rugged cast iron base and work head with precision guides assures accurate machining of heads and blocks.
Cast iron table / head and precision spindle bearings along with all our other features make the SG330 an industry best value.
The distinctive working system where the head feeds and the table stands, offers an high working precision, reducing the overall dimensions.
The range of 4 - 6 cylinder car engines can be covered with this machine.

The machine is supplied completely with all its parts:

• 330 mm grinding wheel with segments and tools
• pair of parallel supports
• steel sheet base
• coolant system
• splash guard
• wheel dresser with diamond

STANDARD EQUIPMENT

• Low voltage electric controls (24V)

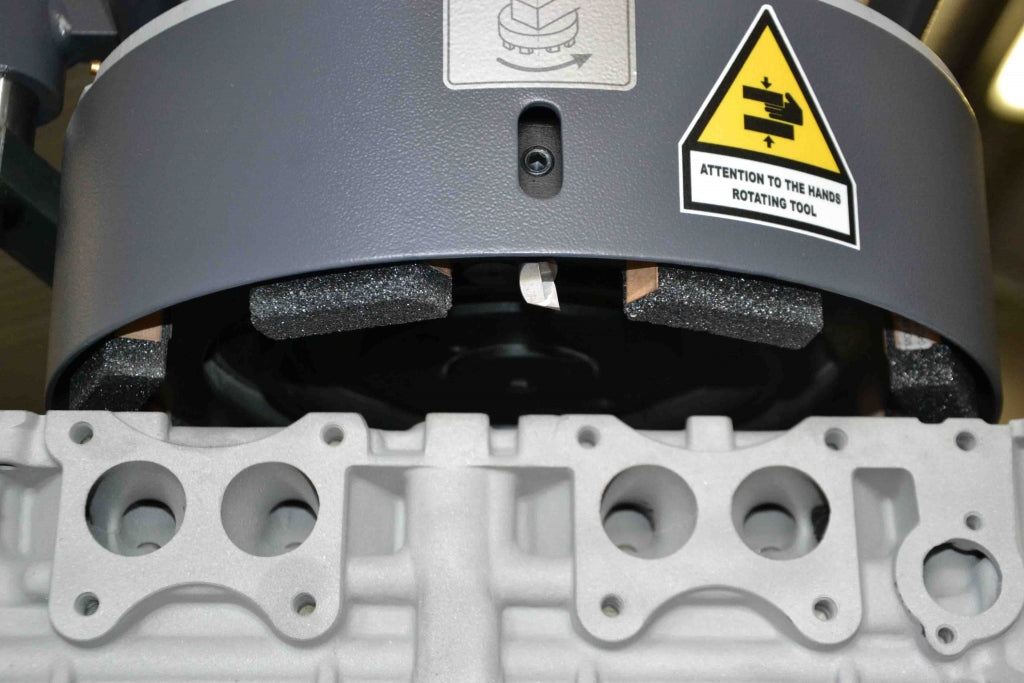

• Grinding segment plate complete of 8 grinding segments for cast iron
• Puller for grinding segment plate
• Head resurfacing tool for aluminium 12x70 mm
• 2 parallel supports 352 x 140(h) mm, complete with screws and small clamping blocks
• Set of screw, nuts, clamps and keys
• Wheel dressing unit
• Diamond dresser for grinding wheel
• Metal base cabinet
• Splash guard with protection

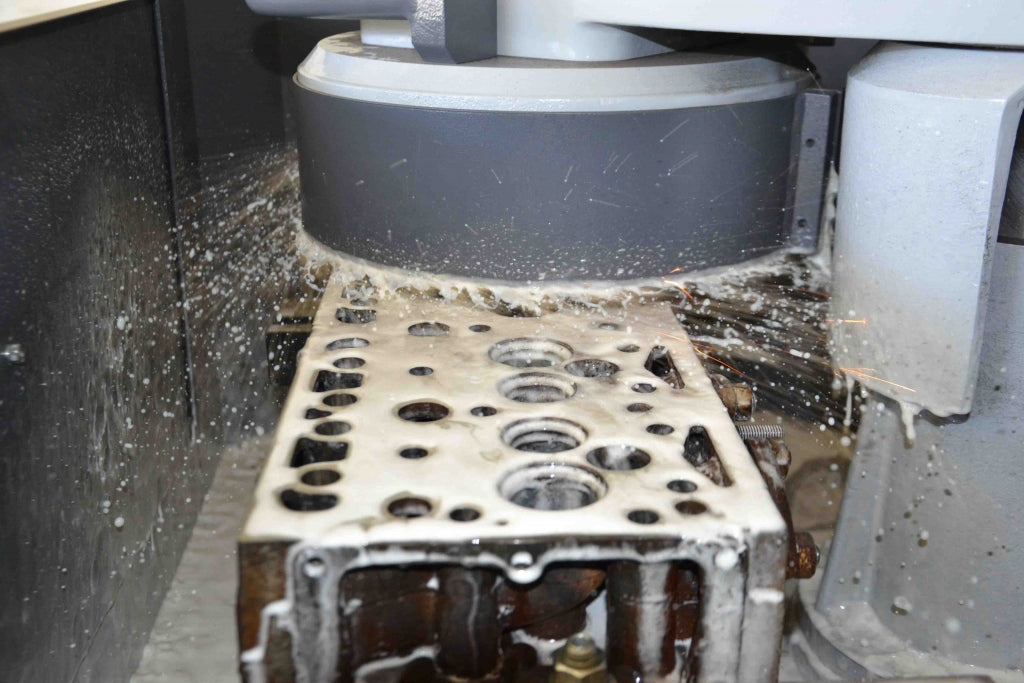

• Coolant system with electric pump and settling tank
• Set of service tools
• Instruction manual
• Painted with standard grey colours RAL 7040 and RAL 7015
• Extra charge for other colours available upon request.

Table surface 295×750 mm
Distance table to grinding wheel 125÷340 mm
Grinding wheel vertical travel 205 mm
Grinding wheel diameter 330 mm (13”)
Max. surface machined 700×180 / 600×225 / 500×260 / 400×285 / 350×300 mm
Grinding wheel rotation speed 900÷1400 rpm
Automatic feed motor speed 190 mm/rpm
Wheel head motor power 1.3÷0.55 Kw
Feed motor power (head movement) 0.12 Kw
Coolant pump motor power 0.11 Kw
Voltage - Hz - Phases 400V - 50Hz - 3ph
Voltage - Hz - Phases 230V - 60Hz - 3ph
Dimensions (W×L×H) 1100×1100×1560(h) mm
Packing dimensions 1200×1200×1550(h) mm
Weight 430 kg
Weight with packing 550 kg
