SG330M CBN/PCD High Speed Surface Milling Machine

Carmec SG330M CBN/PCD High Speed Surface Milling Machine

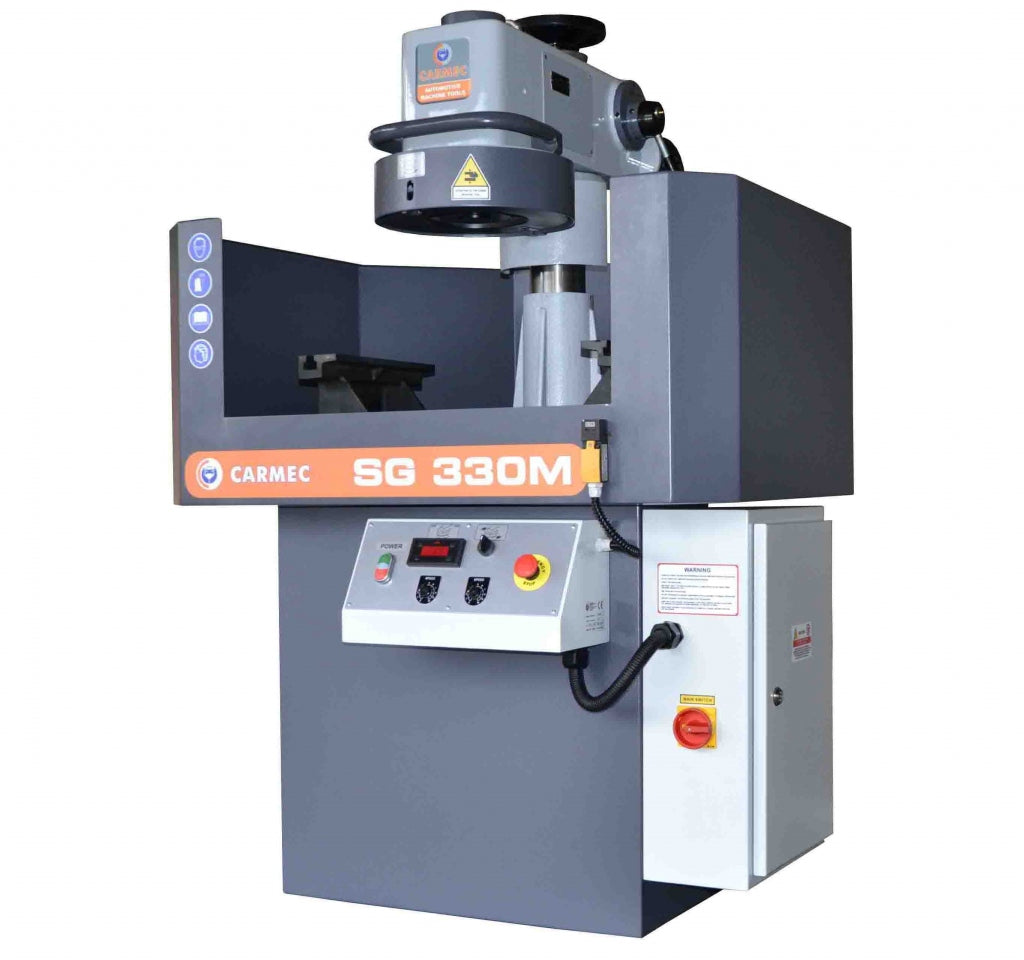

The SG330M is a handy small swing head surface grinding and milling machine for cylinder heads and engine blocks of passenger cars and light trucks. With variable spindle speed in its head, it is suitable for resurfacing aluminium, cast iron and also alu /pre-chambers cylinder heads. Machine has variable feed of wheelhead in horizontal movement and manual in vertical movement.

With SG330M you can resurface cast iron, aluminum, and diesel heads with steel pre-combustion chambers at full grinder speeds without coolants!
This eliminates time consuming grinding sludge cleaning. The round cutter bit can be rotated to expose 50 cutting edges before re-sharpening is required.

Rugged cast iron base and work head with precision guides assures accurate machining of heads and blocks.
Cast iron table / head and precision spindle bearings along with all our other features make the SG330M an industry best value.
The distinctive working system where the head feeds and the table stands, offers an high working precision, reducing the overall dimensions.
The range of 4 - 6 cylinder car engines can be covered with this machine.

The machine is supplied completely with all its parts:

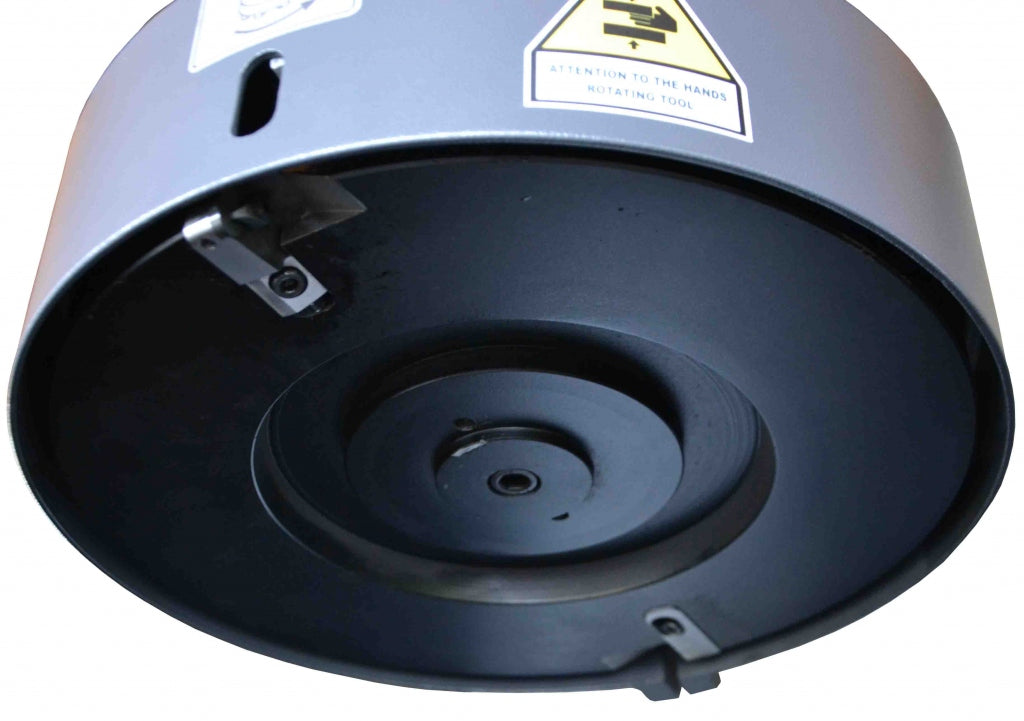

• 330 mm milling plate complete with tool holder cartridge and CBN insert
• variable head spindle speed
• variable feed speed
• pair of parallel supports
• steel sheet base
• splash guard

STANDARD EQUIPMENT

• Single phase version only (specify voltage and frequency)
• Low voltage electric controls (24V)
• Variable speed of milling head, complete of digital display
• Variable speed of head feed
• CBN / PCD Milling plate Ø 330mm (13”)

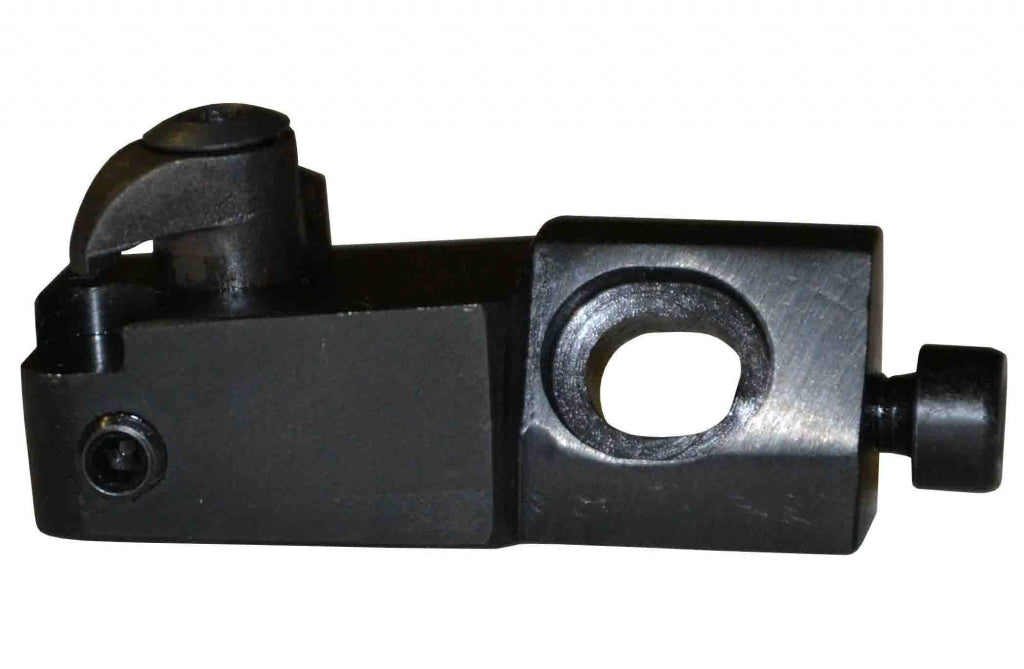

• Special cartridge toolholder for CBN round insert, Ø 9,52mm (3/8”)
• 9,52mm (3/8”) Double side CBN round insert for high speed milling on cast iron
• 2 parallel supports 352 x 140(h) mm
• Set of bolts, nuts and fixing brackets
• Metal base cabinet
• Steel safety guard with shield
• Set of service tools
• Instruction manual
• Painted with standard grey colours RAL 7040 and RAL 7015
• Extra charge for other colours available upon request.



  Table surface 295×750 mm
  Distance table to grinding wheel 125÷340 mm
  Grinding wheel vertical travel 205 mm
  Grinding wheel diameter 330 mm (13”)
  Max. surface machined 700×180 / 600×225 / 500×260 / 400×285 / 350×300 mm
  Grinding wheel rotation speed 900÷1400 rpm
  Automatic feed motor speed 190 mm/rpm
  Wheel head motor power 1.3÷0.55 Kw
  Feed motor power (head movement) 0.12 Kw
  Coolant pump motor power 0.11 Kw
  Voltage - Hz - Phases 400V - 50Hz - 3ph
  Voltage - Hz - Phases 230V - 60Hz - 3ph
  Dimensions (W×L×H) 1100×1100×1560(h) mm
  Packing dimensions 1200×1200×1550(h) mm
  Weight 430 kg
  Weight with packing 550 kg
