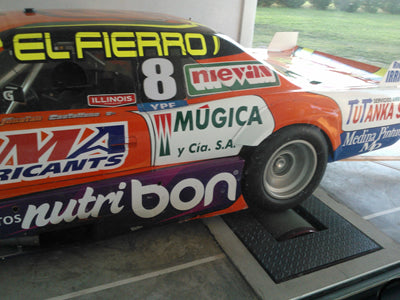

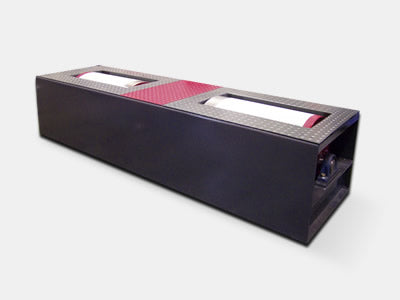

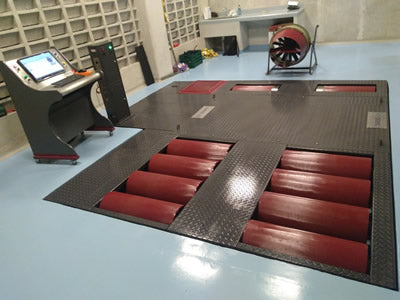

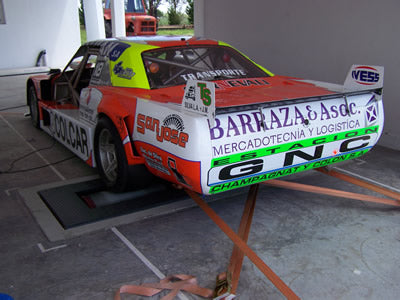

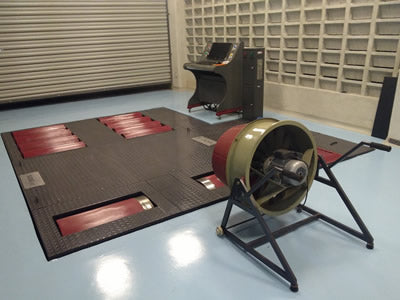

Chassis Dynos competition

DATA ACQUISITION SYSTEM FOR DYNOS (SMAC)

SMAC is a powerful data acquisition system that works with the highest technology. It is a modular system that allow to increase as much data channels as required. Communicates to the computer through optic fiber what avoid noise troubles. The software is very friendly with multiple tools to analyze the information obtained. The system has basic sensor channels for rpm, torque and weather station and also several auxiliary channels for any kind of sensor. A inductive sensor can read the engine rpm for automatic synchronization between rolls and engine. This way test can be easily performed by one person from the vehicle. The software shows every test curve at real time during the essay. Results can be seen on flexibles graphics where every data can be compared and analyzed with as many tests as required. Multiple format Data tables are built to make the desired engine reports.
