AMC-SCHOU

CM2500V

Name: CM2500V
Brand: AMC-SCHOU
Availability: InStock

€0,00

Tax excluded. Shipping calculated at checkout

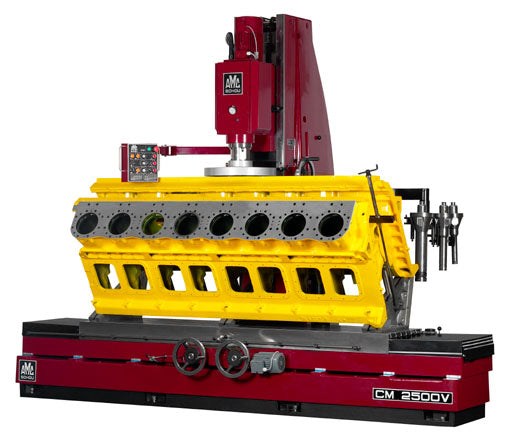

AMC-SCHOU cylinder block boring and milling machines are equipped with a new powerful motor for spindle rotation, and with throw-away inserts for the carbide tool holders which allow extremely fast re-boring of cylinders up to 350 mm (13.75"). All machines are equipped with automatic central lubrication. The spindles, dimensioned for life-long quality service, and the extremely sturdy machine construction are your guarantee of fast floor to floor times for many years

Quantity:

Request a quote

For B2B customers, please register here for EU VAT exemption.

AMC-SCHOU CM2500V

€0,00

CHARACTERISTICS

Standard Equipment

All machines are equipped with stepless motors
central lubrication
tool setting micrometers
setting-up blocks with bolts and spanners
depth control dial indicator
operating manual and more.

Extra Equipment: 7 boring spindles each with carbide tool holders and high-speed inserts (including centering and chamfering tools), carbide tipped boring tools (a tool grinder is also available), storage and loading fixture (for rapid spindle exchange), boring stands (universal and adjustable), roll-over fixtures for V-blocks, quick acting clamps, extra setting-up blocks and more.

MACHINEPARTS

TECHNICAL SPECIFICATIONS
Boring range: 32 - 350mm, 1.25-13.75 inch
Max. boring head travel: 780 mm, 30.7 inch
Distance spindle head to column: 510 mm, 20.1 inch
Max. distance boring slide to table: 1460 mm, 57. 5 inch
Spindle speed: 50-1200 rpm
Boring feed: 20-1500 mm/min. 0.8-59 inch/min
Table surface: 2540x600 mm, 100x23.6 inch
Table traverse lengthwise: 2675 mm, 105.3 inch
Max. milling length(CM only): 2275 mm, 89.6 inch
Table speed (CM only): 0 -1200 mm/min, 0 -47.2 inch/min
Table movement crosswise: 140 mm, 5.5 inch
Max workpiece on machine: 2500 kg, 5500 lbs
Milling width (CM only): 400 mm, 15.7 inch
Optional milling width: 300/500 mm, 11.8/19.7 inch
Max. distance between outer cylinder centres: 2500 mm, 98.4 inch
Spindle motor: 4 kW, 5.5 hp
Motor for boring feed: 0.75kW, 1 hp
Motor for table feed: 0.55 kW, 0.75 hp
Work height required: 3200 mm, 126 inch
Height of column: 2905 mm, 114.4 inch
Total length of machine: 3600 mm, 141.7 inch
Total width of machine:1900 mm, 74.8 inch
Working space required: 6000x1900 mm, 236.2x74.8 inch
Net. weight approx: 5800 kg, 12760 lbs
Shipping weight approx. (wooden box): 6400 kg, 14080 lbs
Shipping volume: 22.72 m³, 802.2 ft³

CM2500V
