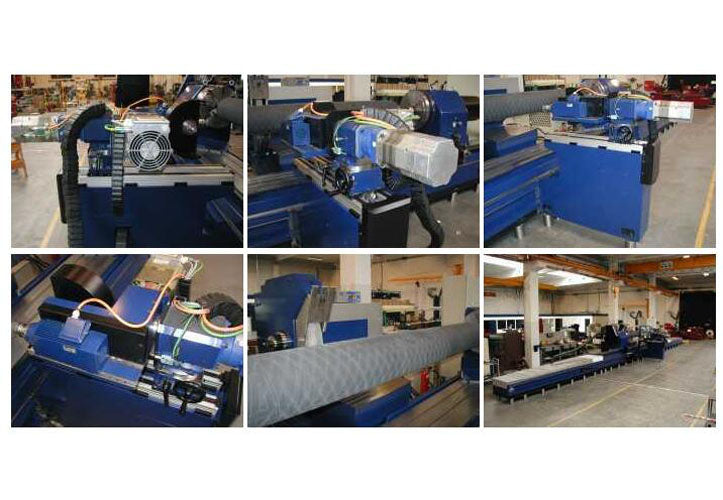

CNC Grinder/Groover
The AMC-SCHOU cylindrical grinding machines are used in industries demanding the highest degree of accuracy and productivity. Manufacturers seeking higher levels of precision, smoother surface finishes, and greater overall productivity can achieve significantly improved performance by utilizing AMC-SCHOU's cylindrical grinders.
When you turn to AMC-SCHOU for your grinding requirements, you benefit in these important ways:
- increased productivity and efficiency
- improved part quality
- easy operation, requiring less operator skill
- rapid payback on your investment
- machine custom built to fit your needs
When you turn to AMC-SCHOU for your grinding requirements, you benefit in these important ways:
- increased productivity and efficiency
- improved part quality
- easy operation, requiring less operator skill
- rapid payback on your investment
- machine custom built to fit your needs
For B2B customers, please register here for EU VAT exemption.
CNC Grinder/Groover
Sale price€0,00
CHARACTERISTICS
- Travelling table design ensuring stability and accuracy for decades.
- The only cast iron CNC controlled grinder/groover in the world capable of grinding all thinkable grooves plus convex, concave, tapers and various other surface contours. The ultimate machine that covers all needs within the rubber roller industry.
- Programmed through the Siemens 840D controller, allowing you to grind various surface contours such as cylindrical, parabolic, sine curves, crowns, convex and concave, radius, tapers, angles and multiple diameters.
- Siemens servomotors offering variable speed, high accuracy, low vibration and large torque also at low speeds.
MACHINEPARTS
- SKF and Deutsche Star high precision ball screws for X- and Z-axis ensuring smooth, accurate and trouble free movements of the antifriction covered table and wheel slide.
- SKF bearings in heavy-duty design in head- and tailstock ensuring smooth and trouble free rotation of even extra heavy work pieces.
- Hydrodynamic grinding wheel spindle ensuring no vibrations and no wear as the spindle is rotating on an oiled film. Runout less than 0.001 mm.
- All main components are made of high quality castings from well-established foundries. These are specially processed to avoid any internal stresses in the material ending up in machines that are entirely free of vibrations.
- Simple, stable design with very few movable components resulting in next to no downtime at all do to mechanical problems. Great savings on maintenance costs, as maintenance is limited to cleaning and lubrication alone.
- Length = 6000 mm/236"
- Diameter = 1100 mm/43"
- max workpiece weight = 15 tons/33000 lbs.
