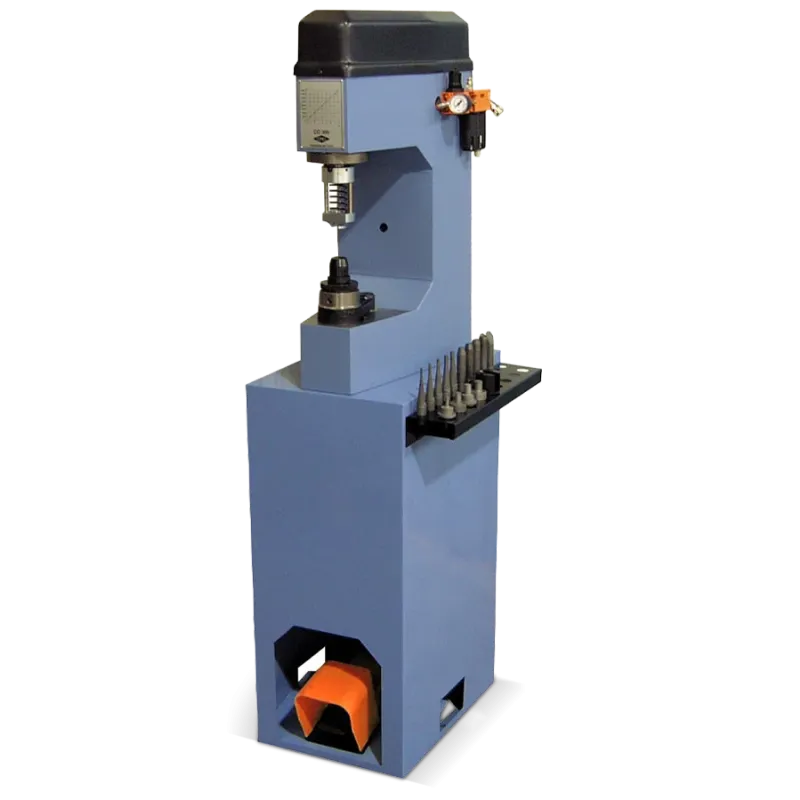

COMEC CC300 Hydro-Pneumatic Brake Shoe Riveting Machine
Tax excluded. Shipping calculated at checkout
The CC300 hydro-pneumatic riveting machine is a brake riveting machine used to rivet and derivet brake inserts on every type of brake shoe. The ribbed steel structure provides the machine with excellent strength and rigidity. The combined hydraulic and pneumatic starting system assures a high work force with a low quantity of compressed air, which is treated by a filter-lubricator complete with pressure regulator and a simple manometer.
- Air pressure regulator with lubricator and manometer
- Set of extracting punches
- Set of riveting punches
- Chisel punch
- Set of counterpunches
- Wrench set
- Instruction manual
|
Rivets diameter |
3÷12 mm |
|
Working pressure |
6÷8 bar |
|
Max punch force |
5200 kg |
|
Max punch stroke |
40 mm |
|
Punch descent speed |
80 mm/s (8 bar) |
|
Dimensions (LxWxH) |
450x490x1520 mm |
|
Weight |
134 kg |
For B2B customers, please register here for EU VAT exemption.
COMEC CC300 Hydro-Pneumatic Brake Shoe Riveting Machine
Sale price€3.400,00
