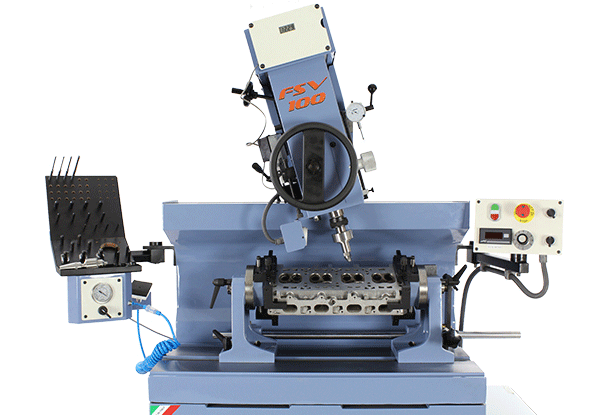

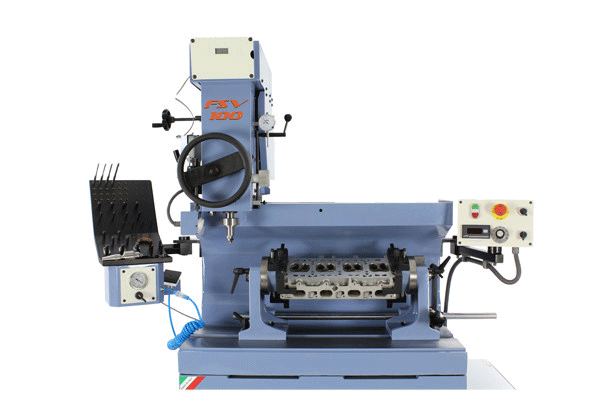

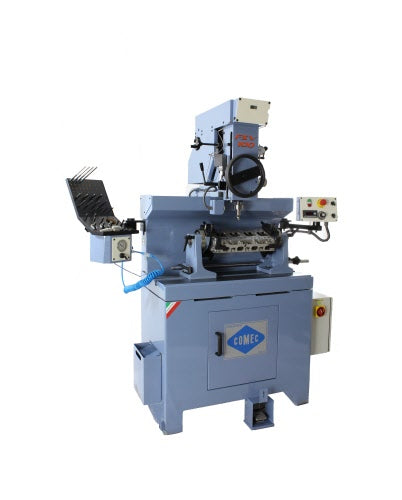

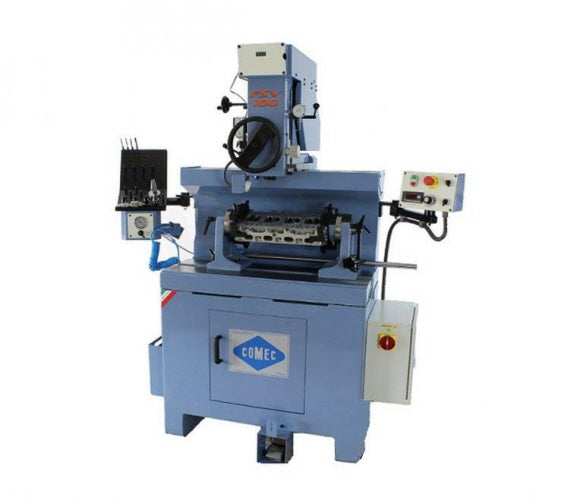

COMEC FSV100 Valve Seat Cutting Machine

The FSV100 is a boring machine for valve seats of motorcycle cars and commercial vehicles' engines that ensures perfect results, thanks to the working precision and extreme ease of use.The spindle head moves on an air cushion allowing a quick and precise positioning of the tool holder head one the carbide tungsten pilot stuck into the valve guide.
The system of fixed pilot, combined with the tool head mounted on a spherical adapter, guarantees a fast and correct alignment and centering.

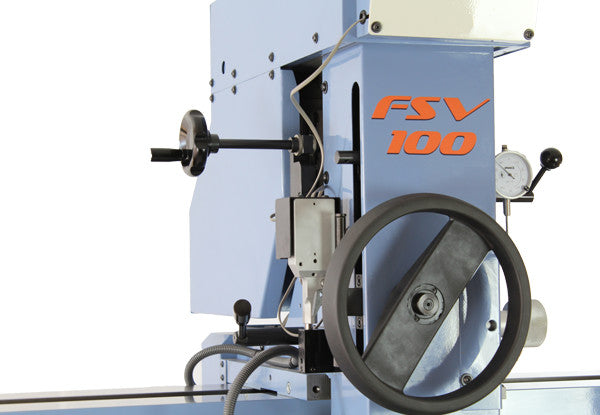

The double spindle advancement system offers a perfect tool feed speed, thanks to the fast front wheel and the lateral micrometric one.
The 360° pivoting fixture has a strong and rigid structure that avoids any tool vibration and increases the quality of the finish. Furthermore, the fastening of the cylinder head is extremely easy and quick, as well as the leveling done by the micrometric adjustment handwheel.
The accuracy is ensured by the electronic level display.
The machine includes in tthe standard equipment, several useful accessories such as the integrated vacuum gauge, a LED light, the storage tray wich improve functionality and usability.

Images may show the product equipped with optional accessories

Air float Work Head for light positioning

Air pressure filter/regulator

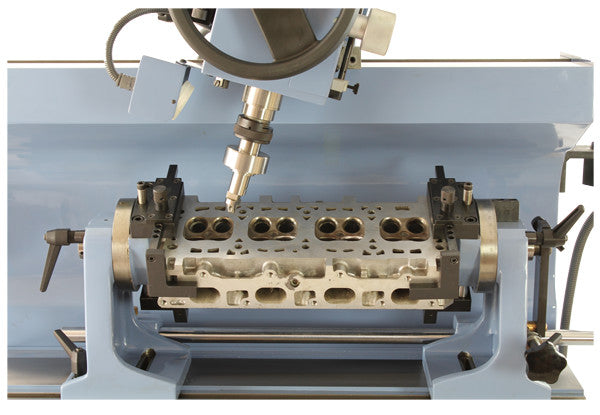

Universal 360 degree roll over Cylinder Head fixture

Adjustable Clamping Kit for special cylinder heads

Hardened spindle with taper tool holder

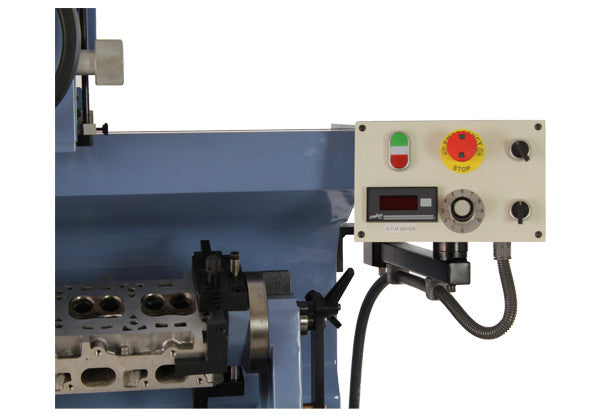

Infinitely variable spindle speed

Adjustable end stroke

Electronic level with readout

Cutting depth measuring dial gauge

APM100 Ball head drive adaptor

TH0375 Tool holder mandrel for 9,52 mm pilots

CUT2000 insert tool holder (18-30 mm)

CUT2001 insert tool holder (28-40 mm)

CUT2002 insert tool holder (40-60 mm)

TSF010 Tool setting fixture

Vacuum tester complete with pads

LED lighting system

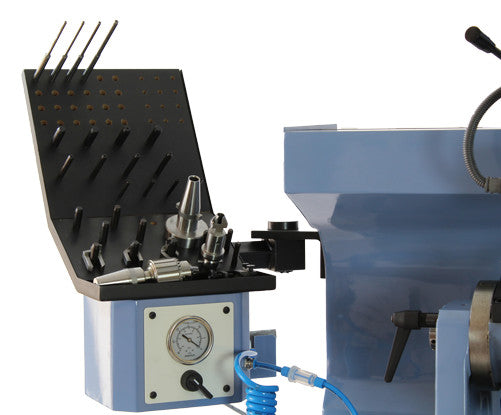

Swing arm tool storage Cabinet

Removable Chip tray

Wrench set

Instruction manual
