COMEC LEV300-L Cylinder Honing Machine

SKU: LEV300-L
Sale price€32.800,00

Tax excluded. Shipping calculated at checkout

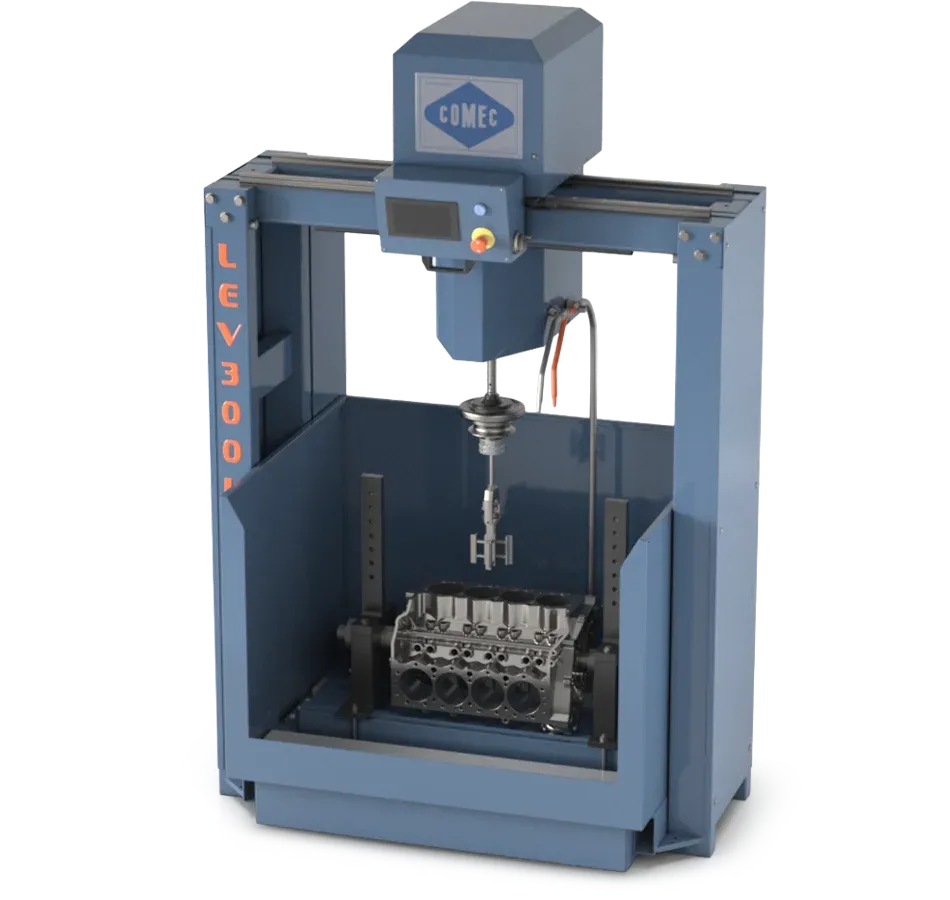

COMEC LEV300-L Cylinder Honing Machine

The LEV300-L is a machine specifically engineered for cylinder honing of cylinder blocks, as well as for all other kind of precise industrial applications where such operation is requested.
The sturdy construction of the machine offers a high structural rigidity, thereby assuring an extremely accurate finishing.
The honing head feed system is carried out through a recirculating ball screw, and the rotation is activated by a powerful electrical motor.
Thanks to the touch screen control system, which is located in front of the operator, it is possible to enter the work parameters to be calculated by the integrated software, thus speeding up the operation and increasing the honing head's rotation speed.

Images may show the product equipped with optional accessories

Standard Equipment

Head movement on linear guides

Vertical honing head travel by recirculating ball screw

Touch screen control panel

Electronic handwheel for honing head movement

Operating software for manual and automatic working process

Double effect hand-wheel for expanding/retracting the honing head

Cooling system with magnetic filtering system

Universal cylinder blocks fixture

Splash and safety guards

Wrench set

Instruction manual

 Specifications

Min-Max honing diameter

25÷500 mm

Max spindle travel

300 mm

Spindle rotation speed

0÷150 rpm

Max distance table-honing head

600 mm

Longitudinal head travel

1280 mm

Max workpiece dimensions

1400x550x800h mm

Spindle motor

0,75kW

Honer Feed motor

1,5 kW (7Nm)

Cooling pump motor

0,15kW

Dimensions (LxWxH)

2060x1020x2160 mm

Net weight

600 Kg
