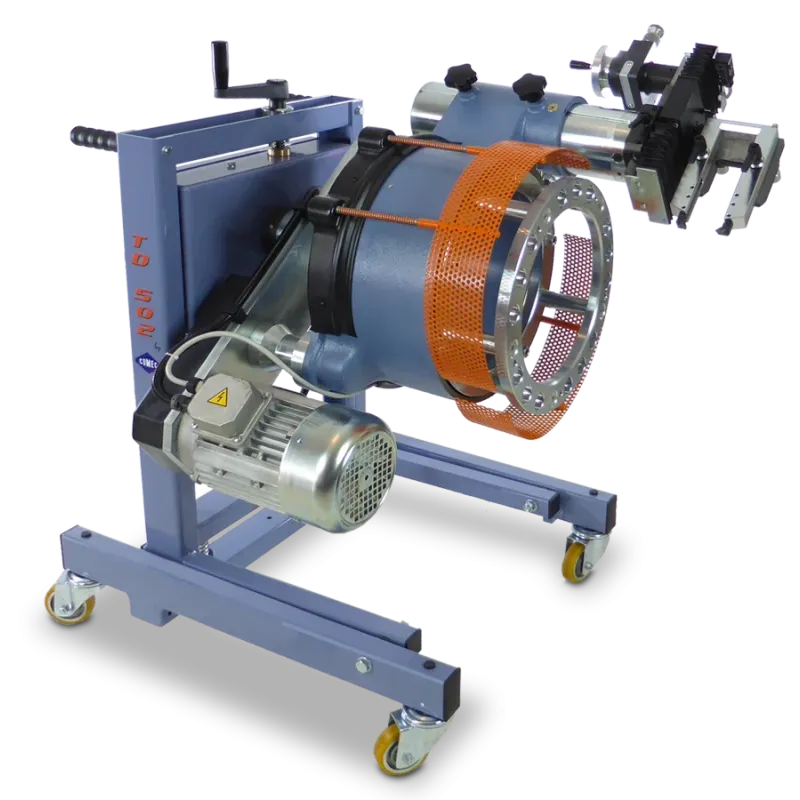

COMEC TD502.STD On-the-truck Brake Disc Lathe
Tax excluded. Shipping calculated at checkout
The TD 502 machine completely changes the concept of disc reconditioning in trucks and buses.
No more time loss while disassembling the disc for bench turning. Now machining operations can be done directly on the hub.
This revolutionary idea has lead to the creation of a machine that minimizes the set-up time.
It is mounted on a swinging and height-adjustable self-aligning saddle that always guarantees the perfect matching between the machine and the hub (with no need for further alignment or centering operations with a comparator). The monolithic cast iron machine body has an empty central part that does not interfere with the truck reducer (especially on rear axles). This ensures that the machine positioning is very close to the disc, for a much more precise reconditioning operation.
Furthermore, the intermittent and adjustable feed ensures a precise finishing on any surface.
- Tilting and self-aligning saddle
- Three phase power supple (400V/50Hz/3ph)
- Right-end L shaped toolholder UT5008
- Left-end L shaped toolholder UT5009
- AA0251 Adapter ring
- Wrench set
- Instruction manual
|
Min-Max working diameter |
100 ÷ 500 mm |
|
Max disc thickness |
70 mm |
|
Max working width |
150 mm |
|
Rotation speed |
70 rpm |
|
Variable intermittent feed |
0 ÷ 0,3 mm/rev |
|
Motor power |
2 Hp (1,5 kW) |
|
Dimensions (LxWxH) |
850x650x1050 mm |
|
Weight |
232 kg |
