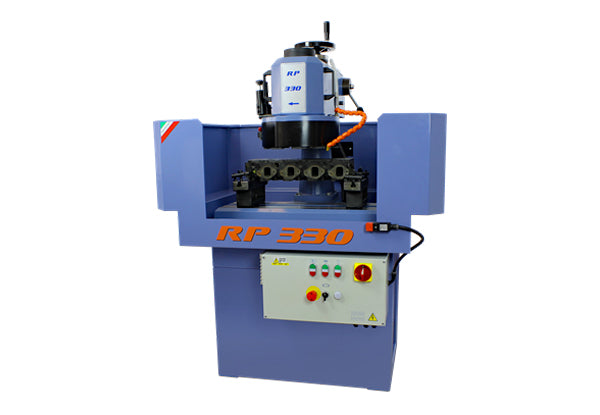

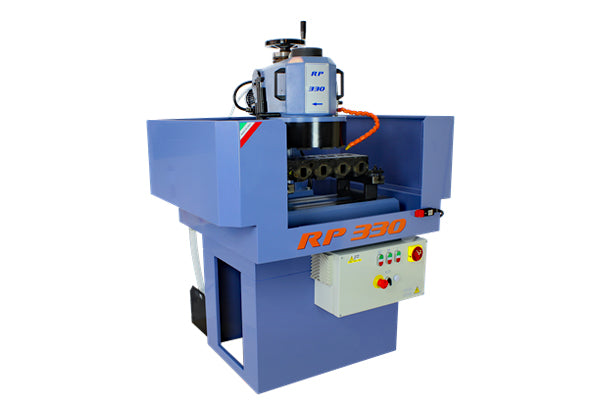

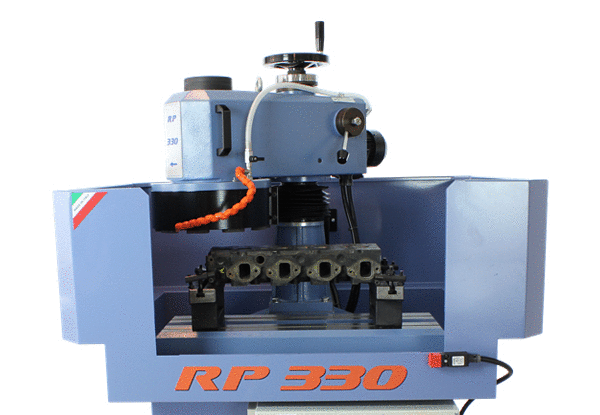

COMEC RP330 cylinder head resurfacer
Tax excluded. Shipping calculated at checkout

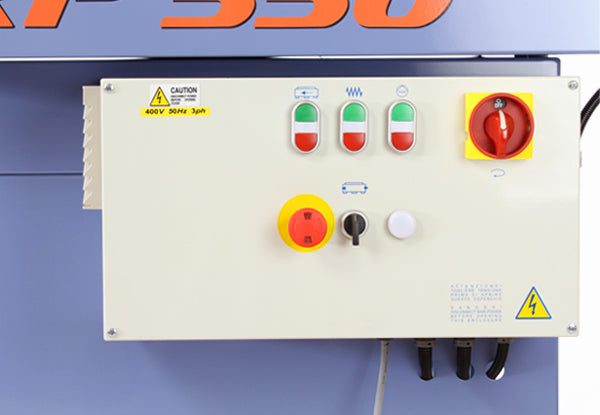

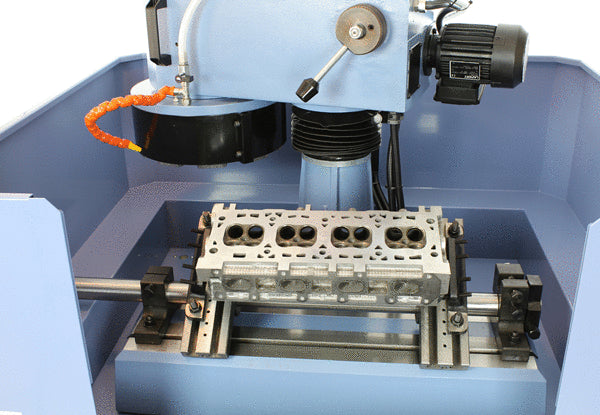

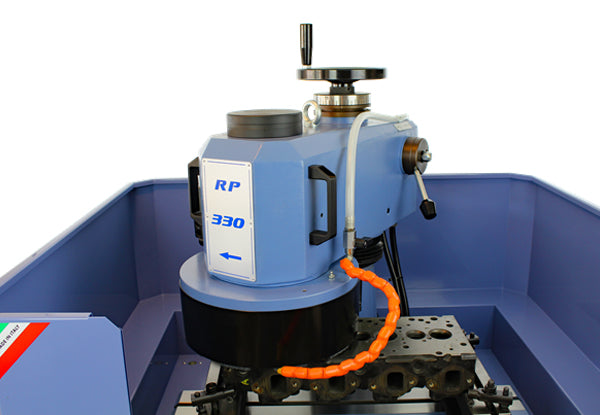

he RP330 resurfacer is an easy-to-use machine, designed for the resurfacing of aluminium and cast iron heads of car and light truck engines. Its particulat working system, where the head feeds and the table stands, offers a high work precision and reduces the overall machine dimensions. The main parts of the machine, like the head, the table and the column are made of strong cast iron and the assembly is mounted on a base cabinet, which includes an easy-to-reach control panel.
Images may show the product equipped with optional accessories
Comec RP330 resurfacer specifications
|
Table surface |
670x270 mm |
|
Maximum distance table to grinding wheel |
390 mm |
|
Grinding wheel vertical travel |
210 mm |
|
Diameter of grinding |
330 mm |
|
Spindle speed |
1400 rpm |
|
Feed speed (on both directions) |
145 mm/min |
|
Wheel head motor power |
2.2 Kw |
|
Feed motor power |
0.15 Hp |
|
Coolant pump motor Mod |
0.15 Hp |
|
Dimensions (LxLxH) |
1220x1080x1670 mm |
|
Weight |
445 kg |
Standard equipment
Base cabinet
Cooling plant complete of pump and settling tank
Segmented grinding wheel complete of grinding segments for cast iron
Splash and safety guard
Grinding wheel dresser
Wheel dressing diamond
Head resurfacing tool
Pair of parallel supports
Locking clamps
Wrench set
Instruction manual
