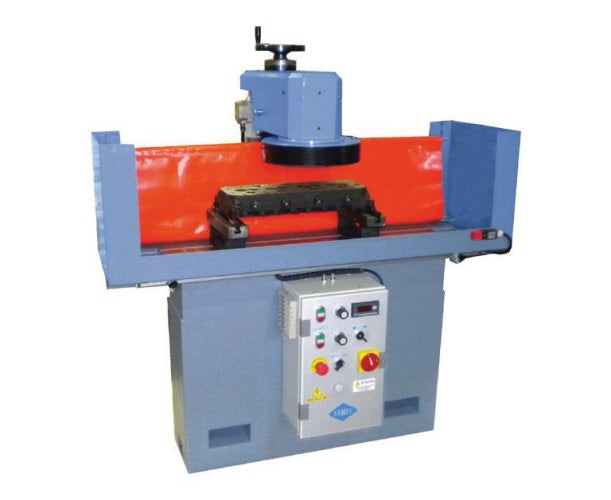

COMEC RP850 cylinder head and block resurfacer
Tax excluded. Shipping calculated at checkout
The experience in resurfacing cast iron and aluminium at high speed, by using special tools like the CBN or the PCD, has offered us the opportunity to develop and manufacture this resurfacing machine for cylinder heads and motor-cylinder blocks.
Features like a wide work capacity (1115 mm table travel) despite its modest dimensions, the adjustable head and table speeds with the use of frequency inverters, and the extremely competitive price make it the perfect choice for small garages and big engine rebuilding workshop.
Images may show the product equipped with optional accessories
Comec RP850 specifications
|
Table travel |
1015 mm |
|
Max workpiece length |
850 mm |
|
Max workpiece width |
330 mm |
|
Max workpiece height |
360 mm |
|
Min workpiece height |
160 mm |
|
Milling wheel diameter |
330 mm (13”) |
|
Variable head speed rotation |
300 ÷ 1200 rpm |
|
Variable table travel speed |
0 ÷ 600 mm/min |
|
Head motor |
1,5 Kw |
|
Table motor |
0,75 Kw |
|
Dimensions (LxWxH) |
1550x870x1720 mm |
|
Weight |
591 Kg |
Standard equipment
Variable spindle speed complete with digital read-out
Adjustable table feed
Manual/continuous working cycle programmes
CBN/PCD milling plate dia. 330mm (13”)
Toolhoder UT1350 and CBN insert UT1355
Base-integrated control panel
Safety guard with policarbonate shield
PV0006 Pair of parallel supports
PV0021 Large clamps
PV0022 Small clamps
Lubricant for slides
Wrench set
Instruction manual
