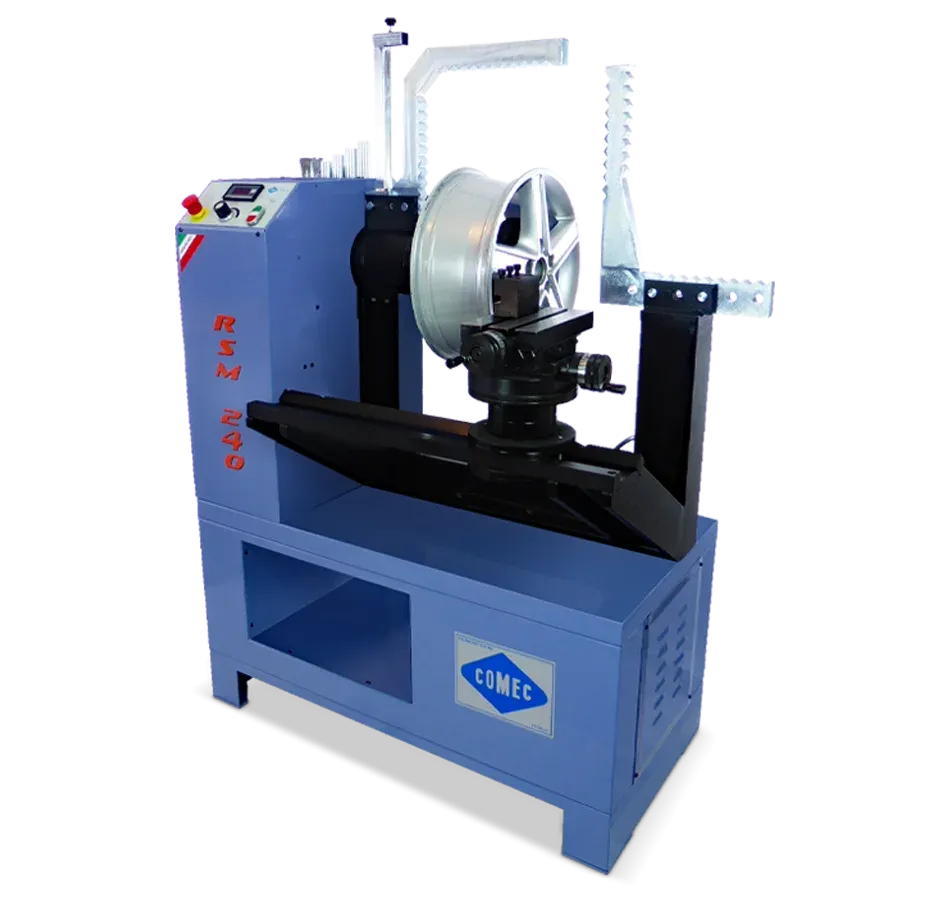

COMEC RSM240 Rim straitening Machine and Lathe
RSM 240 is designed and manufactured to repair by straightening all kind of steel, aluminium and alloy wheels with range diameter between 12" and 24".
The system uses an easy to handle hydraulic cylinder actuated by an hydraulic unit that, conveniently positioned, pushes on the damaged part of the rim taking it back to the original shape. Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean to the different rim profiles. Furthermore the hydraulic cylinder is provided by a pressure regulation system with manometer (PRP100) which allows the adjustment of push force in accordance to the material on work.
RSM 240 moreover is equipped with a lathe unit that allows, after the wheel straightening operation, to remove dents on the edges.
Useful accessories among which the adjustable spindle speed with digital readout (VRV050) or the dial gauge for alignment (CPR150) are available according to every kind of need.
- Wheel centering rings
- Gauge
- Angular tip
- Flat tip
- Square tip
- Chisel tip
- Extendedtipholders
- Rim cutting tool
- Wrenchset
- Instruction manual
|
Application range |
13" - 24" |
|
Max working pressure |
140 bar |
|
Max punch force |
3950 Kg |
|
Spindle rotation speed |
80 rpm |
|
Hydraulic unit motor |
0,75 kW |
|
Lathe unit motoreducer |
0,75 kW |
|
Dimensions (LxWxH) |
1100x860x1250 mm |
|
Weigh |
350 Kg |
