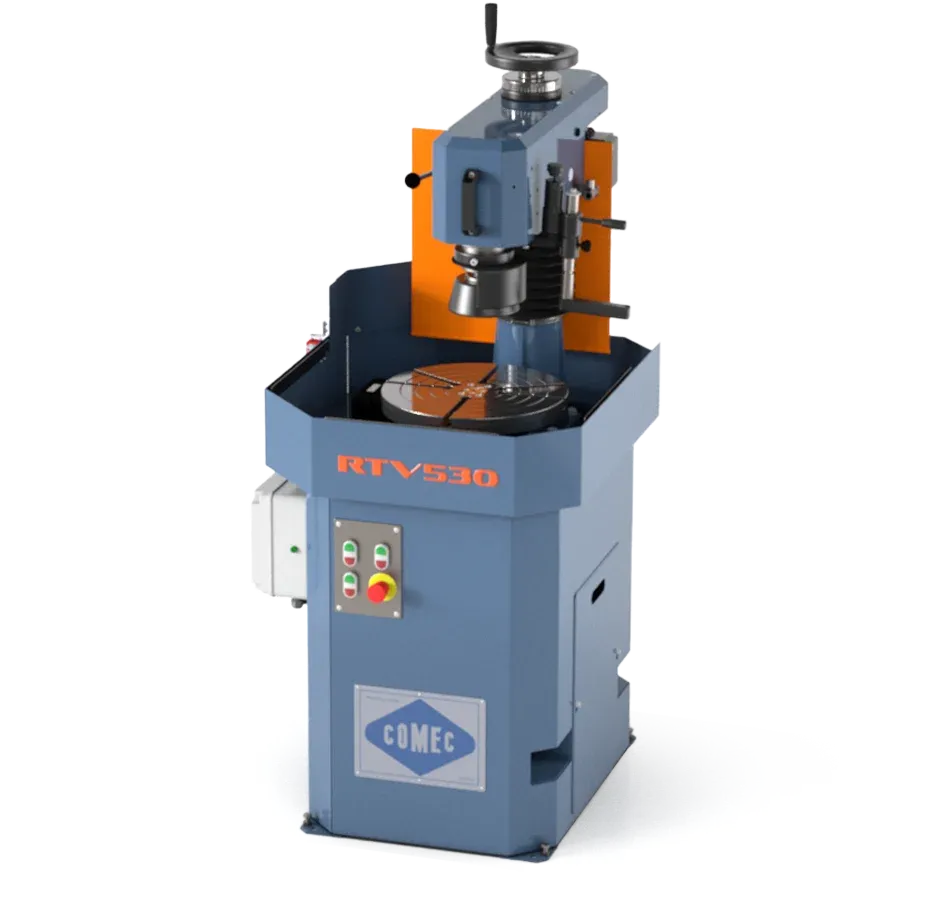

COMEC RTV530.MNF Flywheel and Clutch Pressure Plate Grinder
Tax excluded. Shipping calculated at checkout
Same as RTV530.std with follwing difference;
- Single phase version (230V/50Hz/1ph)
The RTV530 has been engineered specifically for resurfacing flywheels and clutch friction plates with a maximum diameter of 510 mm (20”).
The sturdy structure of some elements, like the base, the column and the rotary table, ensure the maximum level of rigidity and work precision. The clutch pressure plate and flywheel grinder is equipped with an efficient cooling system, complete with a pump and an easy-to-clean settling tank. The complete standard equipment ensures an extremely fast and accurate set-up of the workpieces. Moreover, the RTV530 is suitable for grinding brake discs of cars and trucks for which this kind of machining is required.
- Cooling system
- Splash and safety guard
- Taper grindwheel for cast iron
- Grinding wheel dresser
- Wheel dressing diamond
- Set of centering cones
- Set of supporting rings
- Blocking screws
- Wrench set
- Instruction manual
| Maximum grinding diameter | 510 mm |
| Rotary table diameter | 390 mm |
| Maximum distance between - wheel | 175 mm |
| Cup grinding wheel diameter | 150 mm |
| Table rotation speed | 16 rpm |
| Wheel rotation speed | 2800 rpm |
| Table motor power | 0.75 kW |
| Head motor power | 2.2 kW |
| Dimensions (LxWxH) | 700x970x1680 mm |
| Weight | 380 kg |
