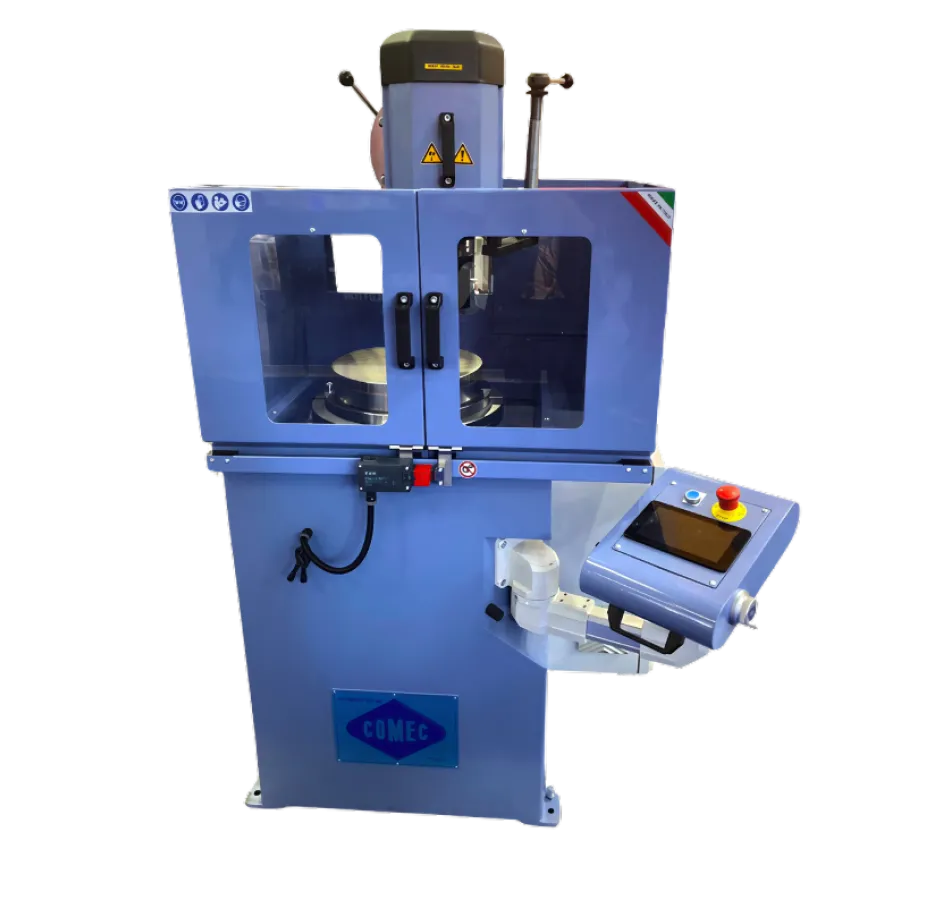

COMEC RTV600.CNC Flywheel and Clutch Pressure Plate Grinder

The grinding machine RTV600.CNC represents the most advanced solution in terms of clutch pressure plates and flywheels reconditioning of industrial or passenger vehicles. Due to its flexibility it is also suitable for a fine grinding of any other circular piece like discs, rings or flang-es. Precision silicon carbide gaskets could be also ground by means of a diamond grindingwheel.

Thanks to its updated machining system and to the use of strong material, like ripped cast iron on the base, on the head, on the rotary table and to the use of hardened and ground steel on the column, the machine gives an high sturdy rigidity.

The rotary table has a diameter of 450 mm. and its upper surface is dove tailed in order to easily lock the pieces to be machined.

Upon demand it could be coupled with a magnetic plate. Its rotation is done by slinding on to a fine ground surface constantly deeped into an oil bath thus reducing friction and wear and lasting, at the same time, the machine life.

The taper grindwheel is driven by a powerful 4 kW motor in order to grant a quick grinding even with deep passes.

The standard equipment includes the rapid head displacement, an efficient cooling system with settling tank and a wide equipment for a quick and precise positioning and fixing.

On demand there is also availability of other special fixtures like the automatic lathing device or some fitting for a proper clamping of the clutch pressure plates.

Consult the brochure and contact us for any other inquiry.

• Head power feed
• Splash and safety guard
• Cooling plant complete with pump and settling tank
• Grinding wheel dresser
• Wheel dressing diamond
• Cup grinding wheel for cast iron
• Set of centering cones
• Set of supporting rings
• Dial gauge with support
• Blocking screws
• Oil for slides
• Emulsifiable oil
• Wrench set
• Instruction manual
