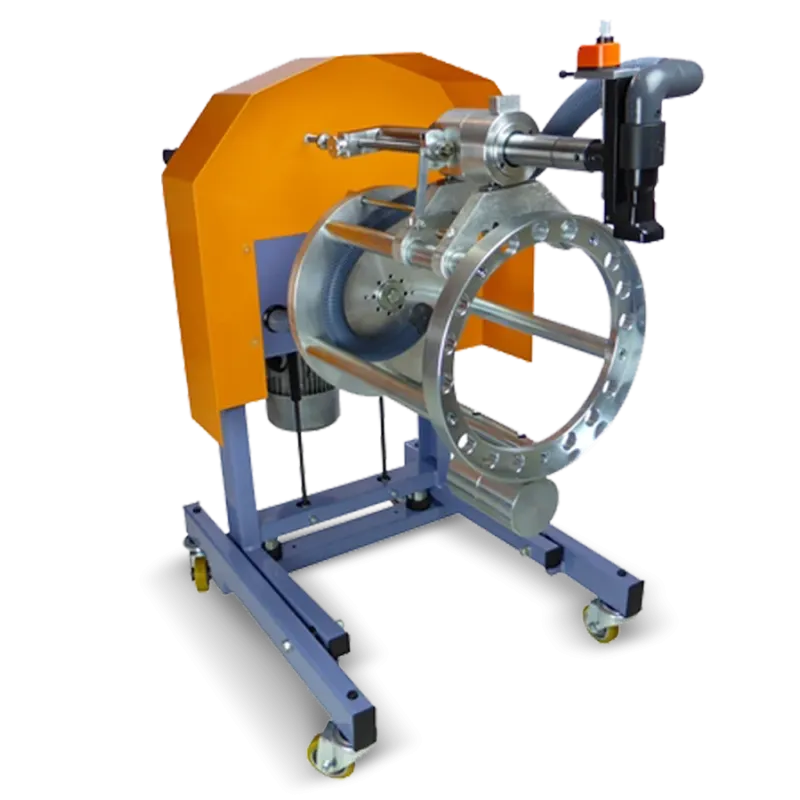

COMEC TCE560 On-the-truck Brake Shoe Lathing Machine
The TCE560 is the perfect machine for turning brake shoes on heavy duty trucks.
The machining is operated directly on the gear unit hub axle or by using suitable accessories on conventional axles (even with mounted internal bearing).
The machine is supported by an height-adjustable, tilting and self-aligning patented carriage, which ensures quick and easy fitting operations.
The high speed rotation of 90 rpm (on both ways), together with the sequential feed of 0.6 mm/rev and the adjustable control stop, ensures short machining cycles, while providing for excellent surface finishing, cylindricity and concentricity precision.
The oversized gearmotor (1.8 kW) enables the machine to work under the hardest conditions (double or triple differential gear, transmission shaft connected, frozen oil, etc.)
The soft-start electric device controls the power, thereby starting the machine gradually with no jerks.
The standard equipment is complete with the practical reference dimension reader and the dust collector housing.
Specific accessories for the centering or to simplify and speed up the manufacturing process are available upon request.
- Tilting and self-aligning carriage for positioning
- Adapter ring for Mercedes/Man hubs
- Electronic "Soft-start" device for smooth starts
- Setup of turning diameter through reference dimension reader
- Double insert toolholder L=30 mm
- Double insert toolholder L=50 mm
- Dust collector housing
- Automatic feed stop
- Safety guard
- Wrench set
- Instruction manual
|
Rotation speed |
90 rpm |
|
Sequential feed |
0,6 mm/rev |
|
Min turning diameter |
230 mm |
|
Max turning diameter |
480 mm |
|
Max brake shoe depth |
290 mm |
|
Motor power |
2,5 Hp (1,8 kW) |
|
Dimensions (LxWxH) |
670x950x1150 mm |
|
Weight |
160 kg |
