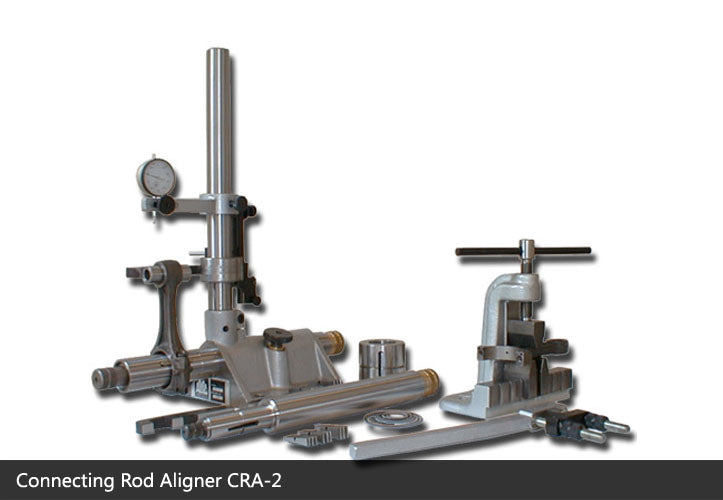

Connecting Rod Aligner CRA-2
Tax excluded. Shipping calculated at checkout
This AMC-SCHOU precision measuring tool provides a quick and accurate control of bend, twist and off-set of any type of connecting rod up to a length of 460 mm (18").
Any irregularity is easily remedied by means of the bending and twisting tools included in the standard equipment. The set is complete - no extra tools or intruments are needed.
- The Benefits of Precision.
Any irregularity is easily remedied by means of the bending and twisting tools included in the standard equipment. The set is complete - no extra tools or intruments are needed.
- The Benefits of Precision.
For B2B customers, please register here for EU VAT exemption.

Connecting Rod Aligner CRA-2
Sale price€0,00
CHARACTERISTICS
· Includes special press for straightening bent connecting rods
· Available with millimetre or inch graduation
MACHINEPARTS
- Max. length of con-rod: 460 mm
- Max. distance between centers
- 405 mm
- 2 Self-expanding arbors for diameters: 34-106 mmDimensions
- Height of machine: 670 mm
- Total length of machine: 340 mm
- Total width of machine: 420 mm
- Net. weight approx: 45 kg
- Shipping weight approx. (wooden box): 60 kg
