CP2700
Tax excluded. Shipping calculated at checkout

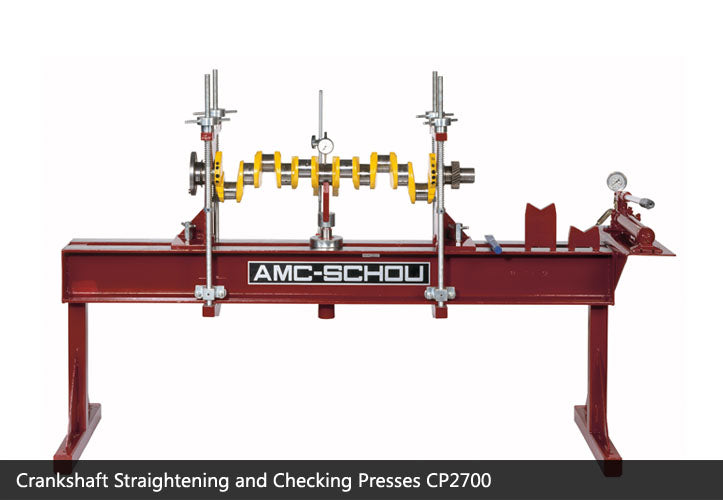

The AMC-SCHOU CP-2700 crankshaft straightening press is designed for the straightening of crankshafts at the seat of distortion, for example in the con-rod journal, so that crankshaft balance is retained.
For B2B customers, please register here for EU VAT exemption.
CP2700
Sale price€0,00
CHARACTERISTICS
- Simple Operation
- Straightening at seat of distortion
- Robust hydralic 2-speed pump with pressure gauge
- Spring-loaded finger nuts for easy location of V-blocks
- Interchangeable supporting brackets
MACHINEPARTS
TECHNICAL SPECIFICATIONS
- Max. length of crankshafts: 2740 mm, 107.8 inch
- Max. journal diameter: 150 mm, 5.91 inch
- Height from length of V-block to bed: 205 mm, 8.07 inch
- Height table to top of guard: 790 mm, 31.1 inch
- Max. Press: 20000 kg, 44000 lbs
- Height of machine: 1350 mm, 53.1 inch
- Total length of machine: 3040 mm, 119.7 inch
- Total width of machine: 635 kg, 25 lbs
- Net. weight approx.: 380 kg, 836 lbs
- Shipping weight approx. (wooden box): 450 kg, 990 lbs
- Shipping volume: 3.66 m³, 129.2 ft³
