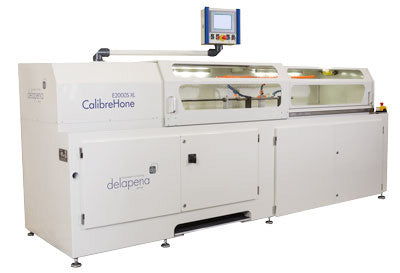

DELAPENA CalibreHone

Innovative long bore precision honing for straight and tapered bores

An innovative long bore precision honing machine, designed specifically to hone straight and tapered bores at lengths up to 1200mm*. The CalibreHone achieves tolerances and geometries to below 2μ, for diameters up to 50mm. This technically-advanced machine features a unique step-back, ‘back taper’ honing programme, to produce a controlled taper in the bore over a specified angle and length.

Innovative in design, flexible and efficient in operation

• Electronic control system with Siemens’ digital HMI
• Repeatable full and short stroke to 0.1mm
• Fully adjustable spindle and stroking speeds
• Quick change tooling (optional)
• Push button, closed door, hands-free operation
• Operation by non-skilled workers
• Online diagnostics (via Internet)
• Reduced maintenance
• Extended tool life

Ideal for:

• Long bore honing to 1200mm*
• Straight or tapered bores
• Tolerances and geometries to below 2μ
• Diameters to 50mm*
• Reliable honing of barrels and choke forms in sporting gun barrels
• Aerospace components
