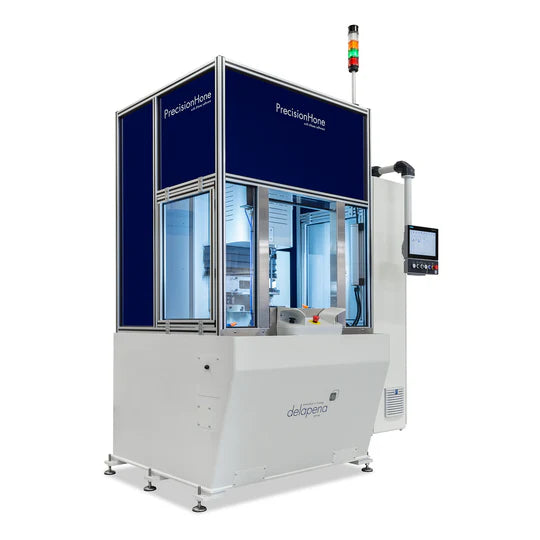

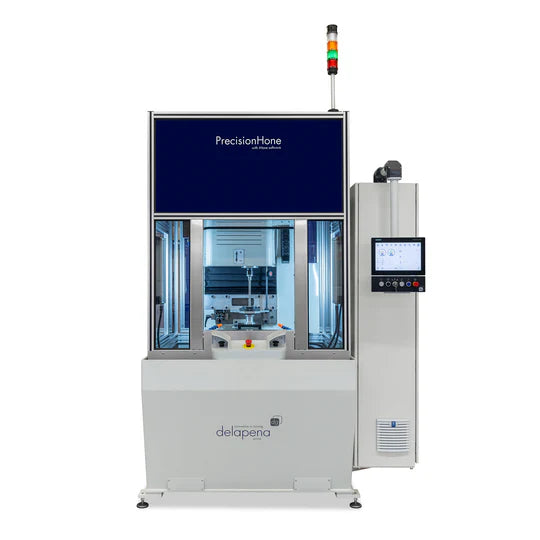

DELAPENA PrecisionHone

A high precision vertical honing machine with wide ranging capability to hone parts from small scale to heavy components, with a diameter range of 1.14mm to 80mm (subject to application) and a tolerance accuracy to 0.001mm, with sub-micron adjustment. With a compact footprint and Siemens control system, the PrecisionHone delivers precision control, operational efficiency and excellent return on investment.

• Electronic control system with Siemens digital HMI
• Unique spindle system with integral stone expansion
• Stable, accurate and repeatable stone adjustment
• Standard and short stroking
• Single Pass cycle
• Fully adjustable spindle speed
• Incremental feed adjustment from 0.1 – 3 micron per second
• Feed movement via precision ballscrew
• Compact, space-efficient footprint

• Turbo Housings
• Flexure Sleeves
• Hydraulic Vane Bodies (large or heavy)
• Con Rods
• Water Pumps
• Valve Spools
• Fuel Injection Nozzles
• Small Cylinder Liners

Customised tooling and handmade abrasives are offered by delapena to further expend the flexibility of this machine.

Precision Control: Reliable accuracy and consistency

Operational Efficiency: Reduced cost per part

Versatile and Flexible: Wide ranging application and capability
